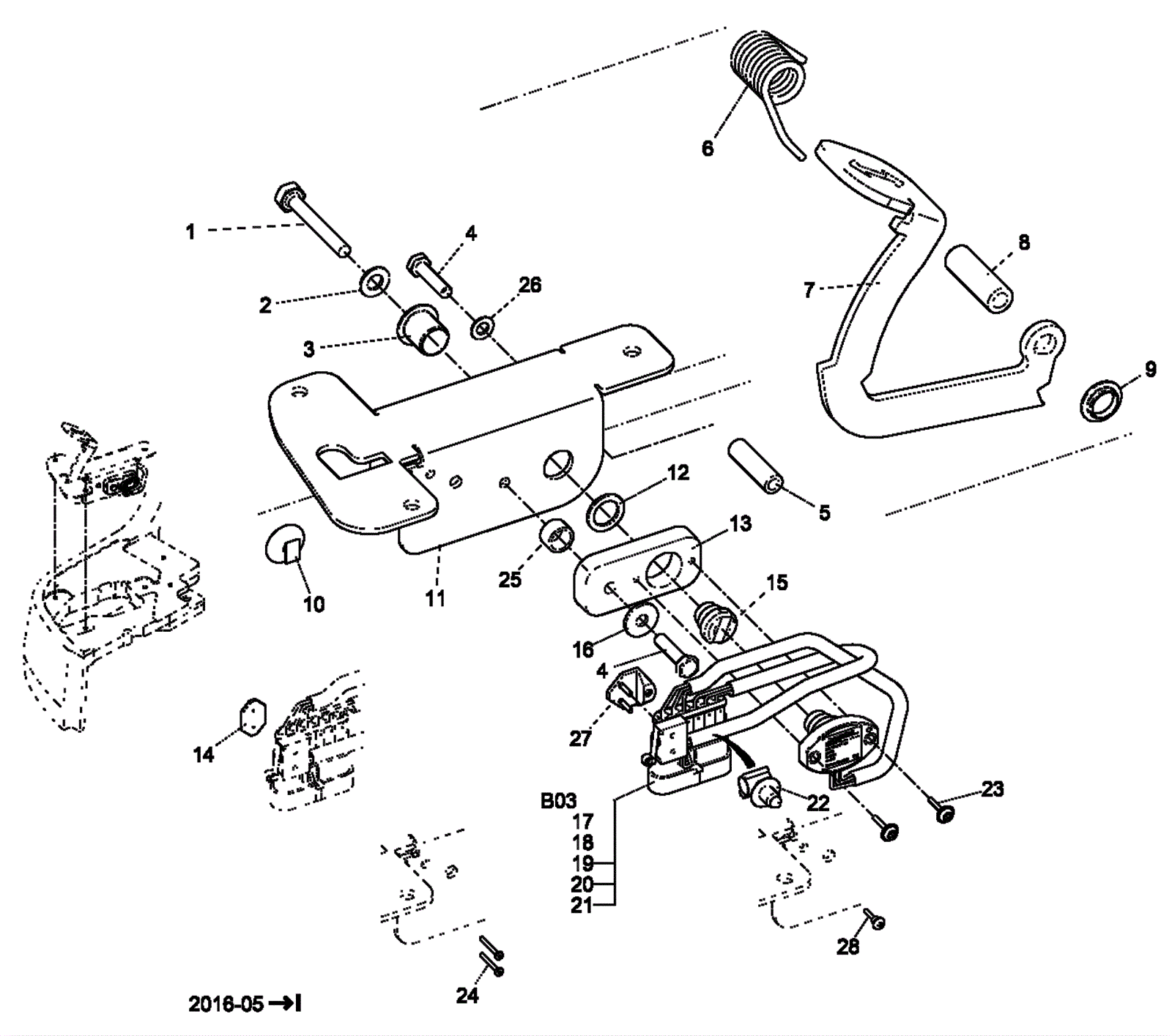

Powerboss Scrubmaster B260 Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-9471 Hexagon screw $1.54 1 usually ships 4-14 days
2 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
3 174-9472 Slide bearing bush $3.13 1 usually ships 4-14 days
4 174-9473 Screw $1.05 2 usually ships 4-14 days
5 174-9474 Hose (by the meter) $13.59 2 in usually ships 4-14 days
6 174-9475 Leg spring $9.74 1 usually ships 4-14 days
7 174-9476 Accelerator pedal $61.27 1 usually ships 4-14 days
8 174-9477 Clambing brush $21.39 1 usually ships 4-14 days
9 374-2975 BEARING-SLIDE BUSH $1.49 1 usually ships 1-5 days
10 174-9478 Mounting clip $1.05 1 usually ships 4-14 days
11 174-9479 Pedal retainer $64.17 1 usually ships 4-14 days
12 174-9480 Starting disk $1.54 1 usually ships 4-14 days
13 174-9490 Retainer $3.90 1 usually ships 4-14 days
14 174-9481 Threaded plate $13.23 1 (until approximately 05/2016) usually ships 4-14 days
15 174-9482 Solenoid retainer Call for price 1 usually ships 4-14 days
16 274-3223 WASHER $0.95 1 usually ships 1-5 days
17 274-0083 Gasket $0.95 6 usually ships 1-5 days
18 174-9483 Hose $3.90 17 in usually ships 4-14 days
19 174-3838 Microswitch $60.91 1 usually ships 4-14 days
20 174-9484 Pin housing $3.58 1 usually ships 4-14 days
21 174-9485 Pin contact $1.05 6 usually ships 4-14 days
22 174-9470 Retainer $1.05 1 usually ships 4-14 days
23 174-8912 Screw $0.95 2 usually ships 1-5 days
24 174-9486 Lens head screw Call for price 2 (until approximately 05/2016) usually ships 4-14 days
25 174-9487 Bushing $2.32 1 usually ships 4-14 days
26 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
27 174-9488 Retainer $3.04 1 (from approximately 06/2016) usually ships 4-14 days
28 274-2958 SELF TAPPING SCREW $0.95 1 (from approximately 06/2016) usually ships 1-5 days
B03 174-9489 Throttle angle sensor $219.97 1 (includes 17-21) usually ships 4-14 days
