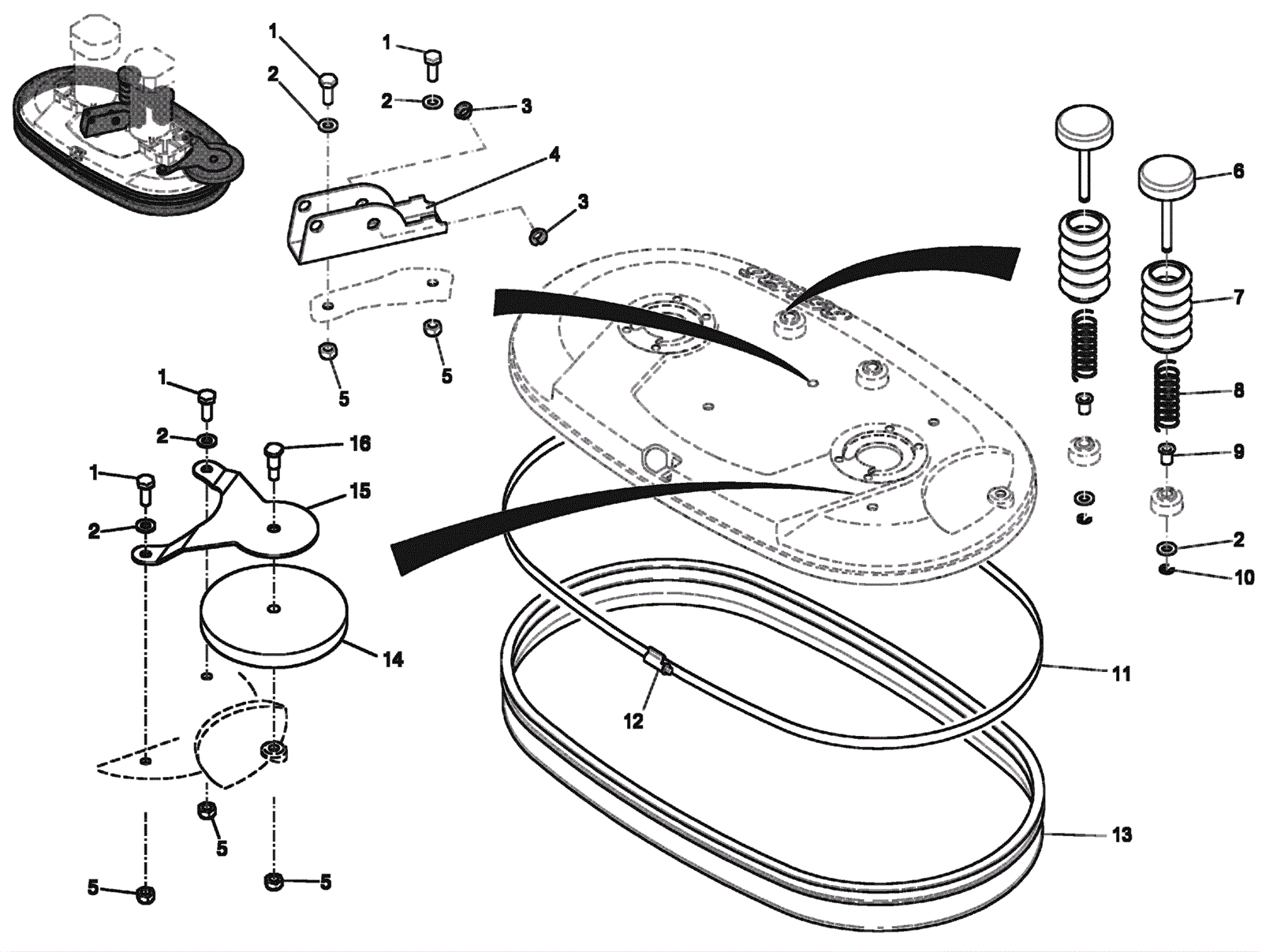

PHOENIX 26 Disc Scrub Deck Assembly-2

#PartDescriptionPriceReqNotesAvailability
1 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 4 ships same day
2 999-9099 Washer M10 flat stainless steel $0.99 6 ships same day
3 174-8974 Bushing $8.15 2 usually ships 1-5 days
4 274-5273 BRACKET, DISK BRUSHDECK MOUNT $43.51 1 usually ships 1-5 days
5 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 5 ships same day
6 174-8483 Ejector $19.20 2 usually ships 4-14 days
7 174-8484 Bellow $14.50 2 usually ships 4-14 days
8 174-8485 Compression spring $10.87 2 usually ships 4-14 days
9 174-8977 Slide bearing $1.27 2 usually ships 4-14 days
10 174-9618 Retaining washer $1.10 2 usually ships 4-14 days
11 174-8449 Tension band $20.65 1 usually ships 4-14 days
12 174-8450 Tension band lock $3.78 1 usually ships 4-14 days
13 174-8979 Sealing strip $45.23 1 usually ships 4-14 days
14 174-8980 Deflector roller $12.10 1 usually ships 4-14 days
15 174-3479 Retainer $23.36 1 usually ships 1-5 days
16 174-9443 Bolt M10 x 1.5 x 20 shoulder $22.78 1 usually ships 4-14 days
