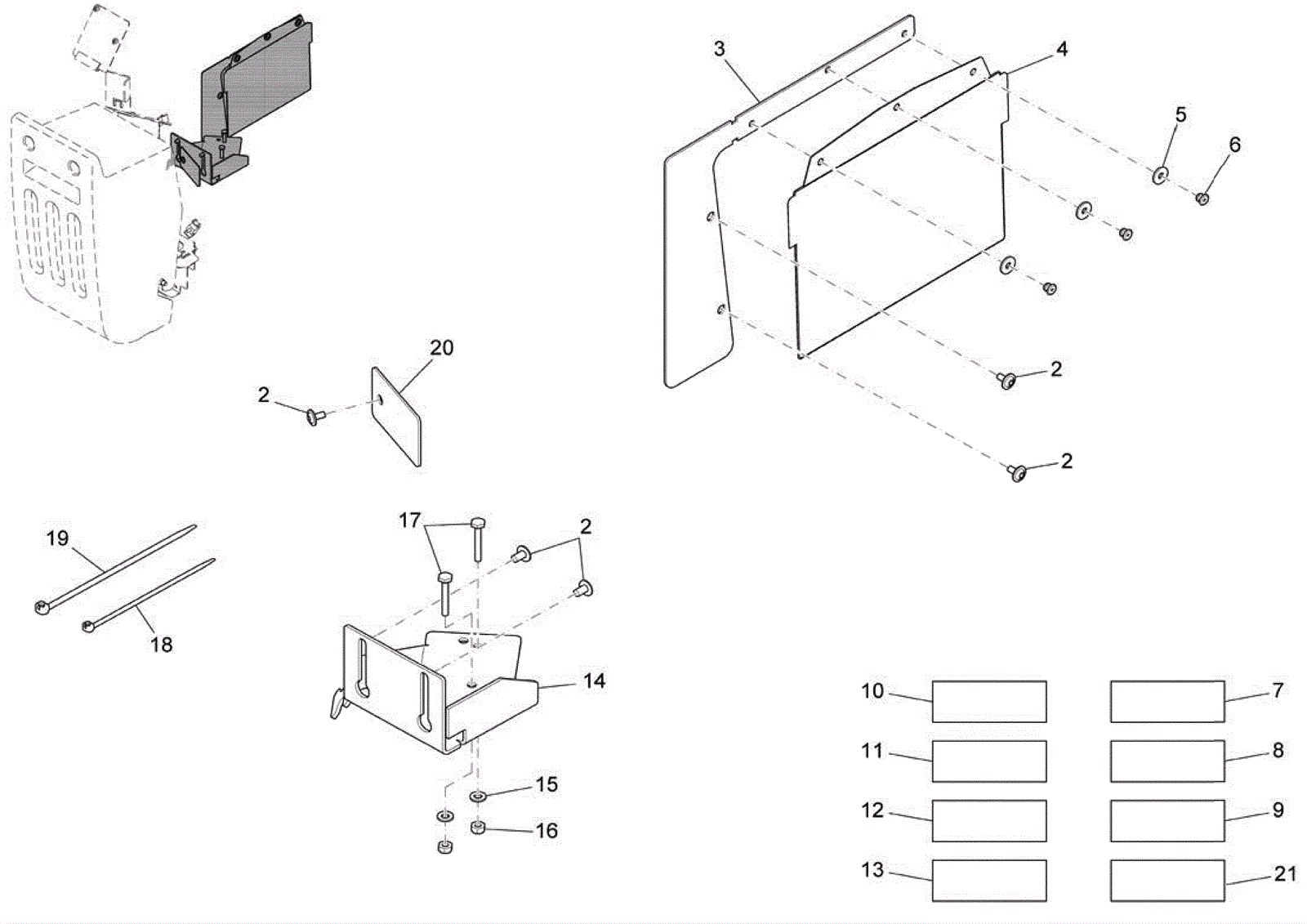

PHOENIX 26 Electrical Assembly-2

#PartDescriptionPriceReqNotesAvailability
2 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 5 ships same day
3 174-8986 Bracket $8.24 1 usually ships 1-5 days
4 174-8987 Pouch $15.20 1 usually ships 1-5 days
5 999-9100 Washer M5 flat stainless steel $5.83 3 ships same day
6 174-8988 Blind rivet $1.24 3 usually ships 1-5 days
7 174-6598 Wiring harness w1 c $187.72 1 usually ships 4-14 days
8 274-7138 WIRING HARNESS W2 $111.57 1 usually ships 1-5 days
9 174-6599 Wiring harness w3 c $108.02 1 usually ships 4-14 days
10 174-6600 Wiring harness w9 c $87.24 1 usually ships 4-14 days
11 274-7922 WIRING HARNESS W11 C $175.28 1 usually ships 1-5 days
12 174-6601 2 piece cable set $54.08 1 usually ships 4-14 days
13 174-6602 3 piece battery cable set $119.33 1 usually ships 4-14 days
14 174-3497 Bag bracket $15.07 1 usually ships 1-5 days
15 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
16 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
17 999-0781 Screw M6-1 x 45mm hex head $0.99 2 ships same day
18 997-2102 Cable tie $1.24 12 ships same day
19 174-6185 Cable tie large $1.24 18 usually ships 1-5 days
20 174-8989 Wiring retainer plate $3.12 1 usually ships 1-5 days
21 174-4186 Cable loom $5.36 1 usually ships 4-14 days
