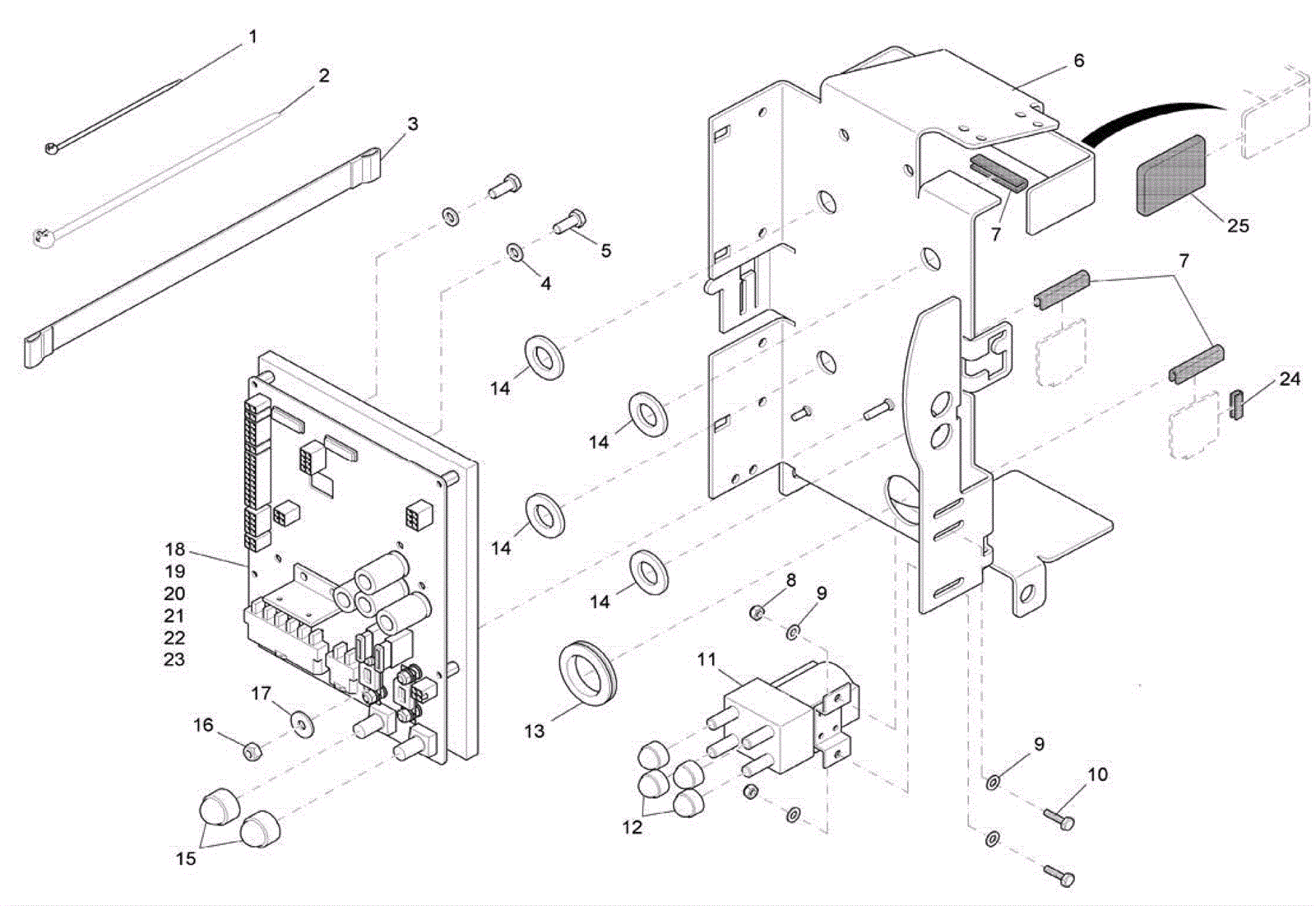

PHOENIX 26 Retainer Subassembly

#PartDescriptionPriceReqNotesAvailability
1 174-6185 Cable tie large $1.24 4 usually ships 1-5 days
2 997-2102 Cable tie $1.24 8 ships same day
3 174-8962 Webbing $8.56 1 usually ships 1-5 days
4 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
5 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
6 174-3518 Controller bracket $51.11 1 usually ships 1-5 days
7 174-8958 Edge protection $20.88 5in usually ships 1-5 days
8 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
9 999-9100 Washer M5 flat stainless steel $5.83 4 ships same day
10 174-9620 Bolt M5-.8 x 16 hex head $0.97 2 usually ships 1-5 days
11 174-8373 24V main relay 2 pole 125 amp $99.90 1 usually ships 4-14 days
12 174-8291 Nut cover safety cap M8 $1.40 4 usually ships 1-5 days
13 174-3494 Cable sleeve $14.17 1 usually ships 1-5 days
14 174-9619 Rubber washer $6.14 4 usually ships 4-14 days
15 174-8963 Protective cap $1.44 2 usually ships 1-5 days
16 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
17 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
18 374-3186 Control board (OBSOLETE) $944.12 1 usually ships 4-14 days
19 274-1693 FUSE, STRIP 125AMP 80VOLT- MAIN $8.54 1 usually ships 1-5 days
20 174-3520 Fuse $1.10 1 usually ships 1-5 days
21 374-0610 FUSE, 5AMP 32VOLT $1.10 1 usually ships 1-5 days
22 N/A Not available Call for price 1 (32V fuse) usually ships 3-26 days
23 174-8965 50amp fuse $7.34 1 usually ships 1-5 days
24 174-8958 Edge protection $20.88 2in usually ships 1-5 days
25 174-3521 Cap $1.14 2 usually ships 1-5 days
