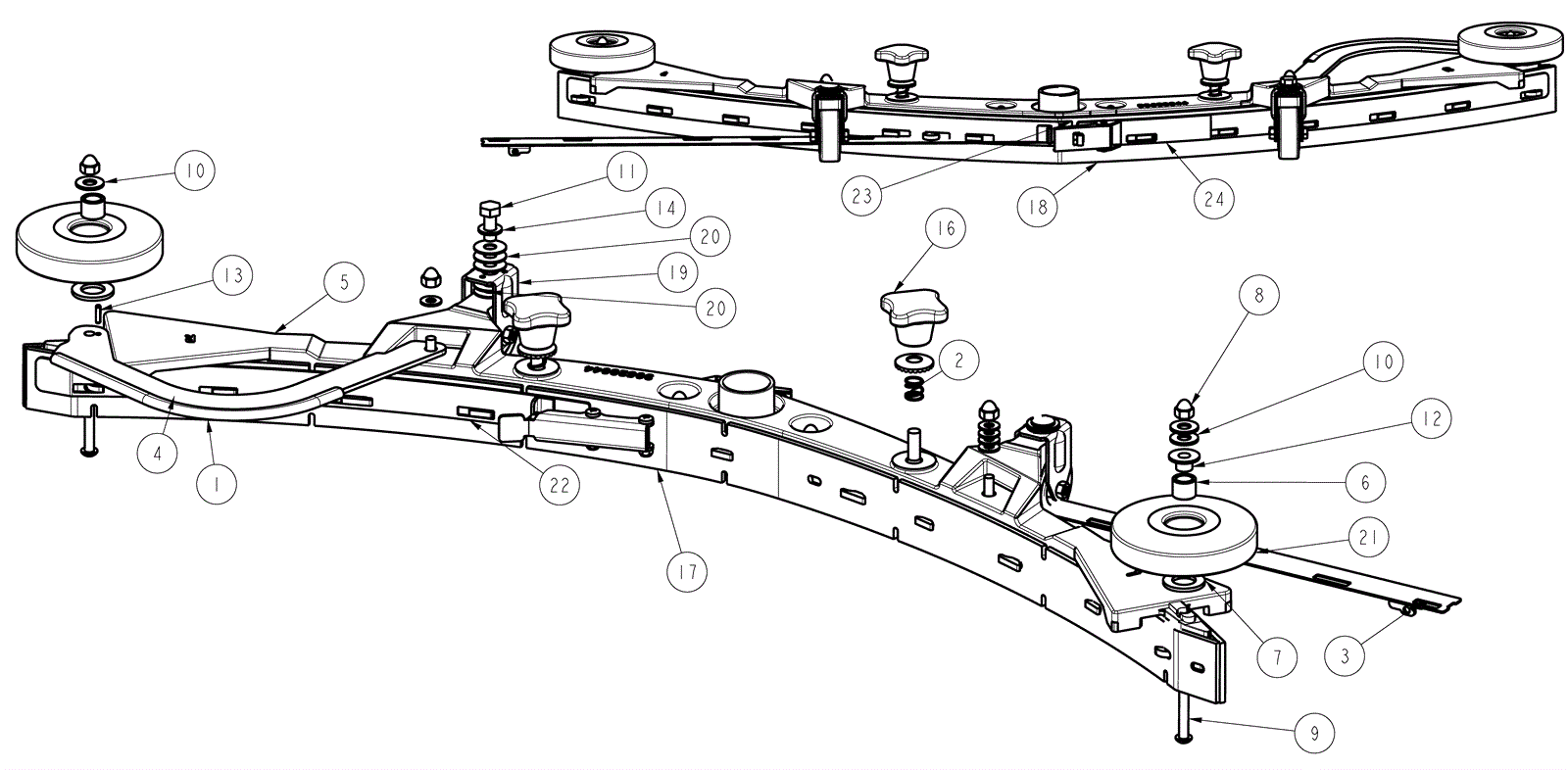

PHOENIX 26 Squeegee Assembly-2

#PartDescriptionPriceReqNotesAvailability
1 174-8326 Edge trim black 5/16 x 10 inch $15.17 1 ships same day
2 374-1935 SPRING, COMP .4 ID X .5FL SS $1.42 2 usually ships 4-14 days
3 274-5745 STRAP W/ LATCH, FRONT LEFT, 38 inch SQG $111.58 1 usually ships 4-14 days
4 174-9438 38 inch squeegee bumper $20.04 1 usually ships 4-14 days
5 274-8804 38 inch SQG BASE ASSY, C.S. SEE NOTES (OBSOLETE) $378.82 1 usually ships 1-5 days
6 174-8328 Bushing $5.51 2 usually ships 4-14 days
7 999-0349 Washer 5/8 SAE flat $0.99 2 ships same day
8 999-1344 Nut 1/4-20 acorn stainless steel $1.38 2 ships same day
9 999-0621 Screw 1/4-20 x 3 truss head slotted stainless steel $5.79 2 ships same day
10 174-8251 Washer flat stainless steel $1.08 3 ships same day
11 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 2 ships same day
12 374-1803 BUSHING-FLG .31 X .435 X .325 NYL $0.97 1 usually ships 4-14 days
13 274-9820 Pin-roll $0.97 1 usually ships 1-5 days
14 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
16 174-8339 Star knob $2.98 2 ships same day
17 174-8180 Squeegee blade front polyurethane $47.68 1 ships same day
18 174-8179 Squeegee blade rear polyurethane $29.11 1 ships same day
19 174-8933 Fixed caster $12.43 2 ships same day
20 374-1931 Washer flat 8.3 x 22 x 1.00mm stainless steel $1.54 10 usually ships 4-14 days
21 174-8932 4 inch plastic roller $3.86 2 usually ships 4-14 days
22 174-7104 Front right tension band $12.86 1 usually ships 4-14 days
23 174-3539 Rear left tension band $24.12 1 usually ships 4-14 days
24 174-3541 Rear right tension band $31.74 1 ships same day
N/S 174-8669 Washer M10.6 serrated tooth $3.48 2 usually ships 4-14 days
