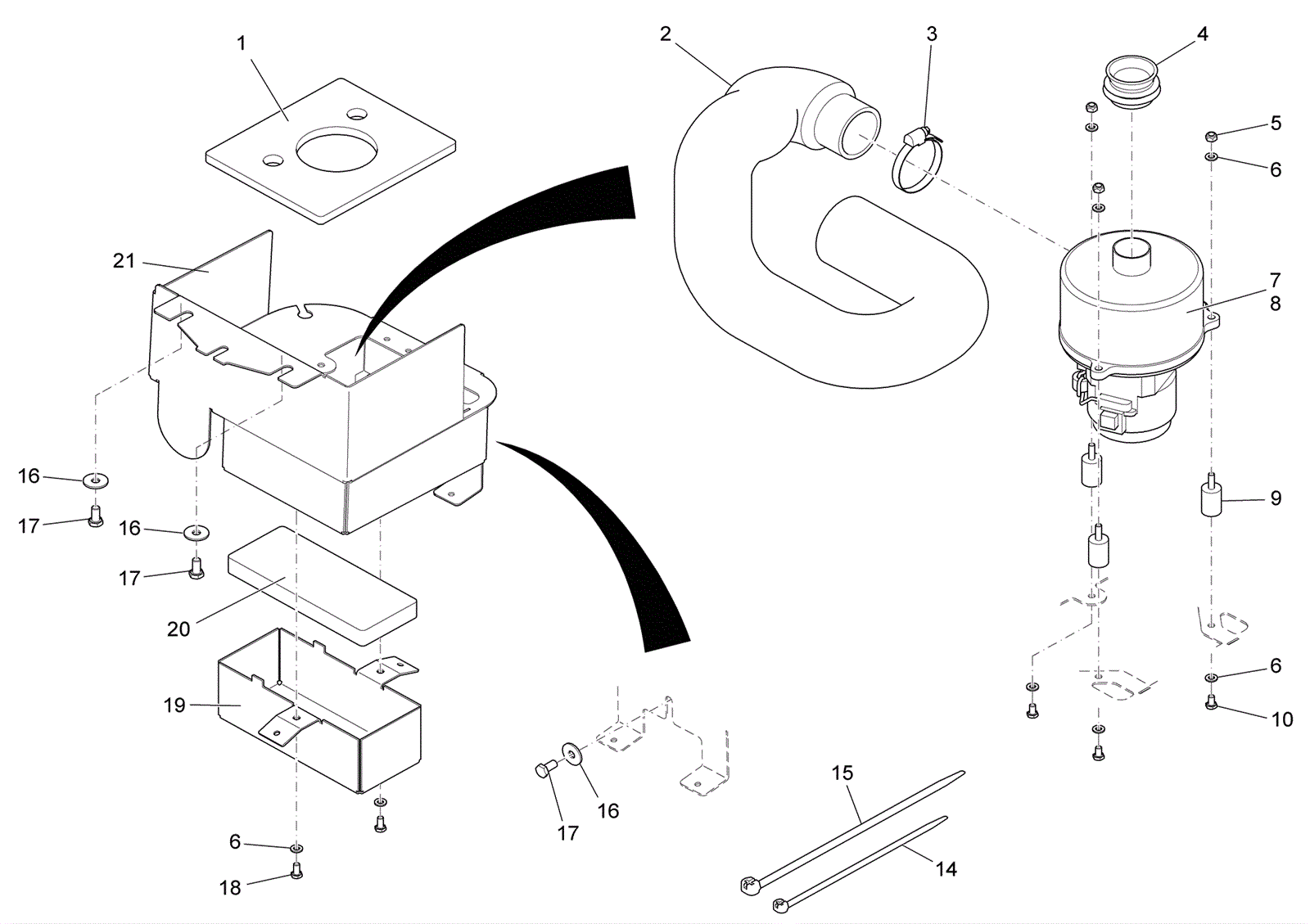

PHOENIX 26 Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-3533 Gasket $10.58 1 usually ships 12-16 days
2 174-8949 Exhaust hose $73.88 1 ships same day
3 174-1624 2 1/2 Hose clamp $1.13 1 usually ships 1-5 days
4 174-8950 Connection $7.89 1 ships same day
5 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 3 ships same day
6 999-1261 Washer M6 flat stainless steel $0.99 8 ships same day
7 174-8495 24V vacuum motor $325.49 1 (includes 8) ships same day
8 174-9437 Carbon brush $17.76 4 usually ships 12-16 days
9 174-8951 Isolator mount $5.77 3 usually ships 12-16 days
10 999-0778 Screw M6-1 x 10mm hex head $0.99 3 ships same day
14 997-2102 Cable tie $1.38 1 ships same day
15 174-6185 Cable tie large $1.38 4 usually ships 1-5 days
16 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
17 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 3 ships same day
18 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 2 ships same day
19 174-3536 Cover $30.70 1 usually ships 1-5 days
20 174-3537 Gasket $2.89 1 usually ships 12-16 days
21 174-3538 Vacuum motor housing $85.93 1 usually ships 12-16 days
