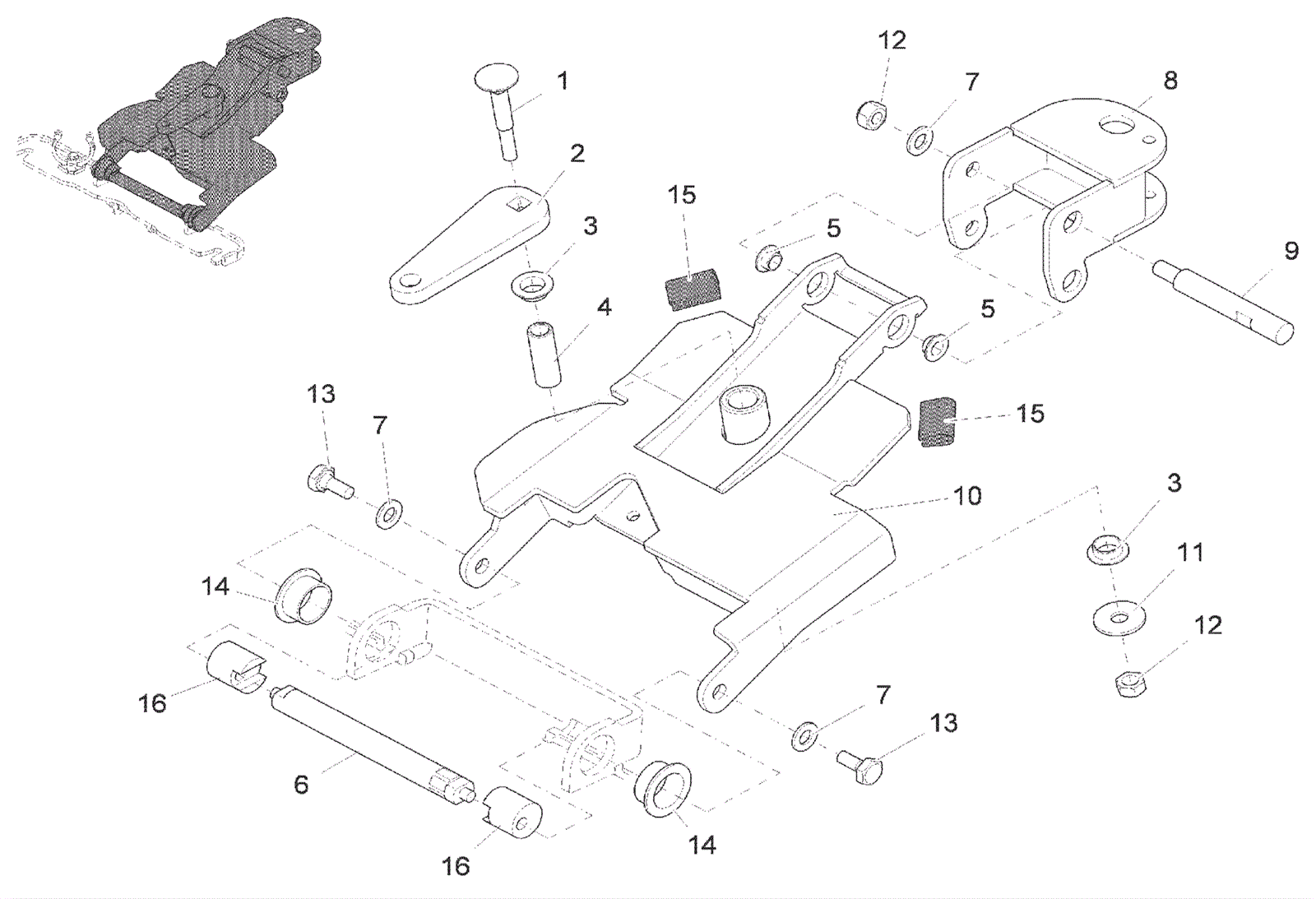

PHOENIX 26 Squeegee Connection Assembly-1

#PartDescriptionPriceReqNotesAvailability
1 174-9642 Bolt M8-1.25 x 55mm carriage head $3.74 1 usually ships 1-5 days
2 174-8999 Cable attach pivot $4.73 1 usually ships 1-5 days
3 174-8992 Slide bearing $4.10 2 usually ships 1-5 days
4 174-3505 Bushing $18.83 1 usually ships 1-5 days
5 174-8974 Bushing $8.15 2 usually ships 1-5 days
6 174-4153 Shaft $46.51 1 usually ships 4-14 days
7 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
8 174-3506 Squeegee bracket $20.46 1 usually ships 1-5 days
9 174-9644 Threaded pin $8.21 3 usually ships 1-5 days
10 174-3507 Connection bracket $176.72 1 usually ships 1-5 days
11 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 usually ships 11-24 days
13 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
14 374-2358 SLIDE BEARING BUSH $10.74 2 usually ships 4-14 days
15 174-8982 Edge protection $2.77 3in usually ships 1-5 days
16 174-3508 Bearing $15.82 2 usually ships 4-14 days
