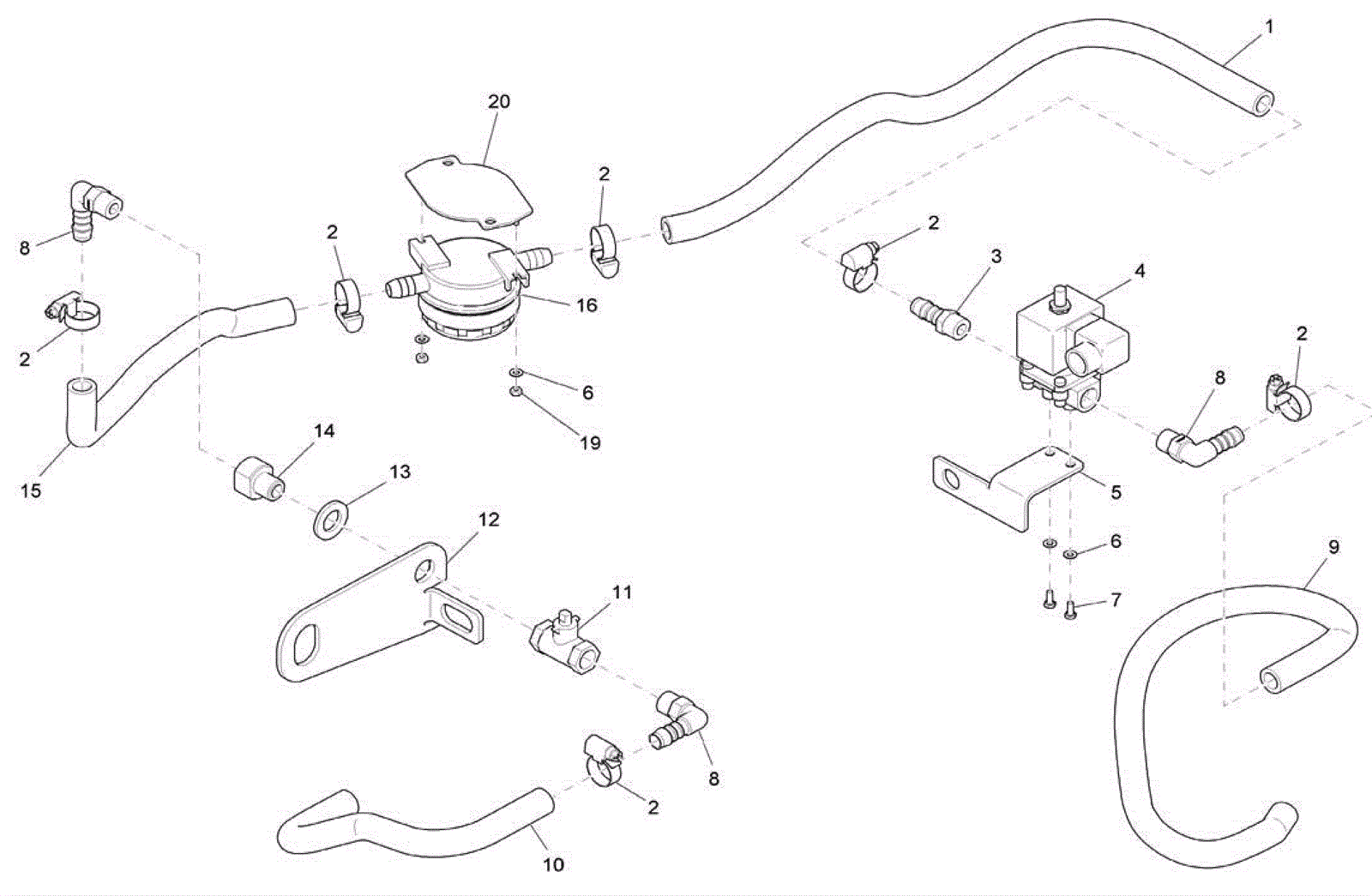

PHOENIX 26 Water Feed Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-9631 PVC hose (Sold by the Meter) $6.27 23in usually ships 12-16 days
2 174-1628 Hose clamp $5.02 6 usually ships 1-5 days
3 174-9632 Straight hose barb fitting $2.21 1 usually ships 1-5 days
4 174-9633 24V solenoid valve $126.95 1 usually ships 12-16 days
5 174-3490 Solenoid valve bracket $838.32 1 usually ships 1-5 days
6 999-9089 Washer M4 flat stainless steel $0.99 4 ships same day
7 999-9104 Screw M4-.7 x 10mm hex head stainless steel $0.99 2 usually ships 1-5 days
8 174-8955 Hose barb elbow fitting $5.06 3 usually ships 12-16 days
9 174-9631 PVC hose (Sold by the Meter) $6.27 22in usually ships 12-16 days
10 174-9631 PVC hose (Sold by the Meter) $6.27 12in usually ships 12-16 days
11 174-9634 Ball valve $14.92 1 usually ships 12-16 days
12 174-3491 Ball valve bracket $18.83 1 usually ships 1-5 days
13 174-9621 Washer M17 flat $4.15 1 usually ships 12-16 days
14 174-9622 Threaded fitting $26.51 1 usually ships 12-16 days
15 174-9631 PVC hose (Sold by the Meter) $6.27 14in usually ships 12-16 days
16 174-3670 Water filter assembly $55.34 1 usually ships 12-16 days
19 999-0955 Nut M4-.7 hex nylon lock $1.52 2 ships same day
20 174-9635 Water filter bracket $6.75 1 usually ships 1-5 days
