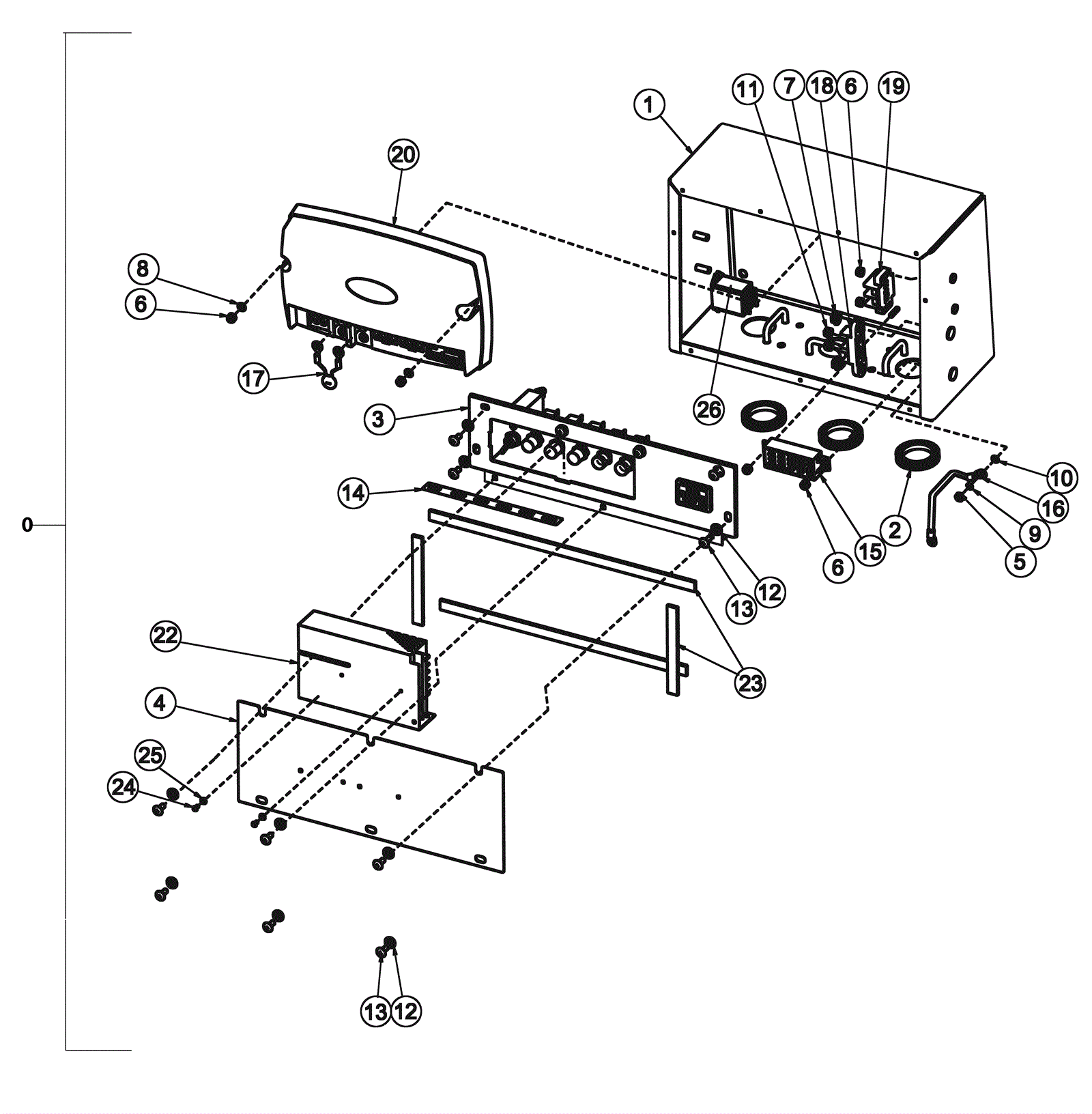

X RIDE 28 Electrical Box Assembly-Model 988732Z

#PartDescriptionPriceReqNotesAvailability
0 374-3245 Main electric box assembly $2,323.29 1 (includes 1-28) usually ships 1-5 days
1 374-3249 Electrical box weldment $304.60 1 usually ships 1-5 days
2 174-8771 Serrated grommet strip $2.05 3 usually ships 1-5 days
3 374-3250 Control panel assembly $298.27 1 usually ships 1-5 days
4 374-3341 X ride 28 CFS electrical door panel $41.40 1 usually ships 1-5 days
5 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 1 ships same day
6 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 6 ships same day
7 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 2 ships same day
8 999-0412 Washer #8 SAE flat $0.99 2 ships same day
9 174-5406 Washer 8 helical $0.97 1 usually ships 12-16 days
10 174-3206 Washer 8 inter tooth $0.97 1 usually ships 1-5 days
11 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
12 999-0998 Washer #10 flat stainless steel $0.99 12 ships same day
13 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 12 ships same day
14 374-3255 Circuit breaker decal Call for price 1 usually ships 1-5 days
15 174-6295 Terminal block $26.78 1 usually ships 1-5 days
16 274-1508 GROUND STRAP SCV2426 CONTROL BOX TOFRAME $9.17 1 usually ships 12-16 days
17 274-0850 VARISTOR ASY, RING TERMINALS 1/4 inch $6.15 1 usually ships 1-5 days
18 374-3252 30A junction block $18.74 1 usually ships 1-5 days
19 374-3253 45A terminal block $8.81 1 usually ships 1-5 days
20 274-9729 CONTROLLER, TRIO+ XRIDE DRY (AGM) BAT $1,215.63 1 usually ships 1-5 days
22 374-3343 36V in 24V out power supply $110.70 1 (includes 24-25) usually ships 1-5 days
24 N/A Not available Call for price 2 (screw M3 x 6) usually ships 3-26 days
25 N/A Not available Call for price 2 (washer M3 x 7 x 0.5) usually ships 3-26 days
26 274-4620 RELAY-36VDC DPDT $31.97 1 usually ships 1-5 days
N/S 374-3342 X28 CFS control box wires $920.84 1 usually ships 1-5 days
N/S 174-6330 Dortite 1/2 $1.24 3 usually ships 1-5 days
