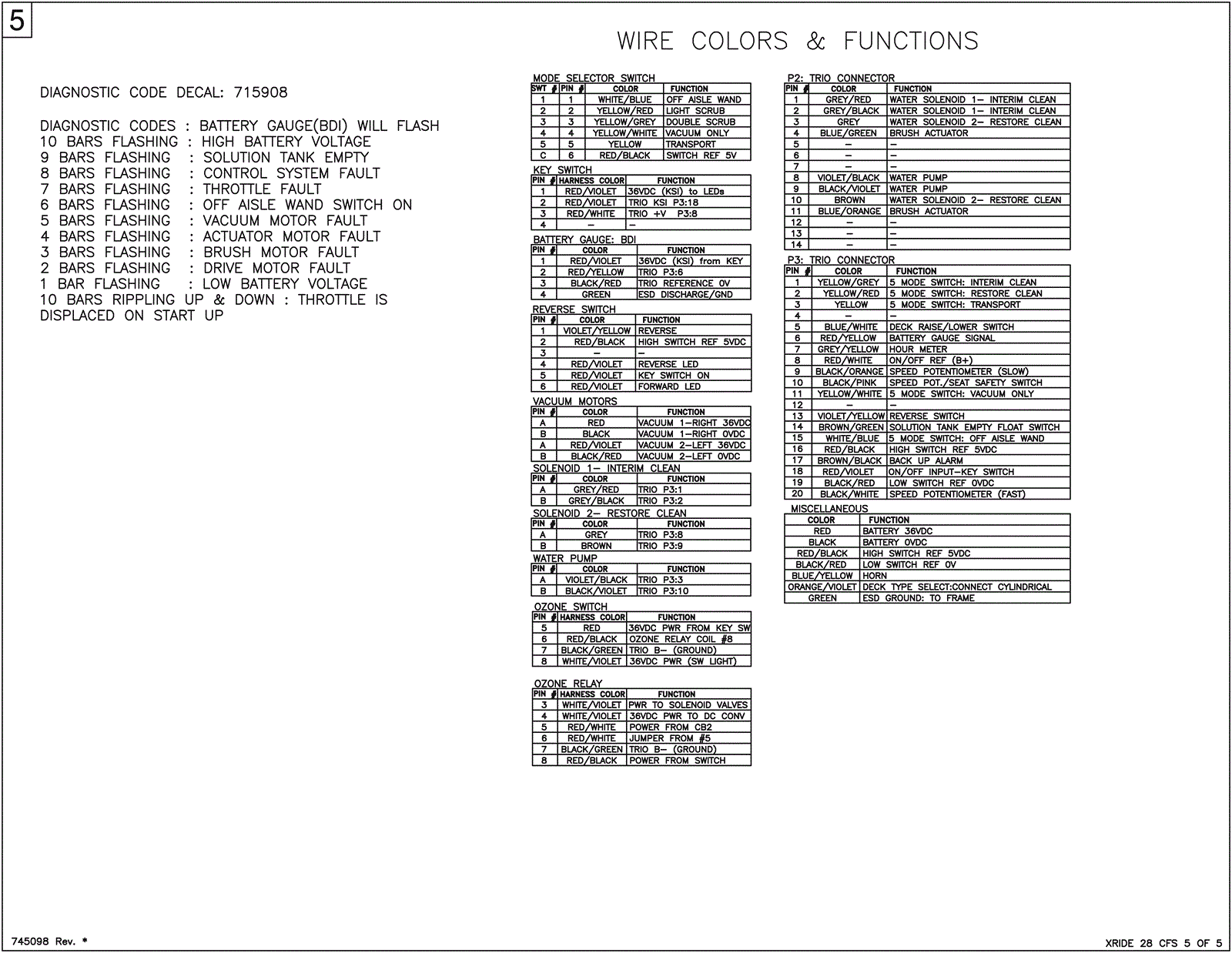

X RIDE 28 Wiring Diagram-5-Model 988732Z

#PartDescriptionPriceReqNotesAvailability
M1 274-9001 VAC MOTOR ASSY, SCV2426 CE $422.93 1 usually ships 12-16 days
M2 274-9001 VAC MOTOR ASSY, SCV2426 CE $422.93 1 usually ships 12-16 days
M4 274-9365 MOTOR-3/4HP 36V 1800RPM 40 inchLEADS $618.42 1 usually ships 1-5 days
M6 374-3325 Brush deck actuator $695.46 1 usually ships 1-5 days
M7 374-3332 36V 100PSI flojet pump $281.34 1 usually ships 1-5 days
M8 374-0216 ELECTRIC CHASSIS DRV-ERIDE 250mm(~10.0 inch) $2,704.27 1 usually ships 12-16 days
A1 274-9729 CONTROLLER, TRIO+ XRIDE DRY (AGM) BAT $1,215.63 1 usually ships 1-5 days
S2 174-8914 Key switch $27.66 1 usually ships 12-16 days
S3 174-8777 Horn switch $35.26 1 usually ships 1-5 days
S4 174-6336 Mode selector switch assembly $118.45 1 usually ships 12-16 days
S5 N/A Not available Call for price 1 (speed potentiometer switch) (part of 748013-1) usually ships 3-26 days
S6 274-3344 SWITCH, TOGGLE 2POS DPDT ON/ON .687 inchBAT $27.10 1 usually ships 12-16 days
S7 274-3822 SWITCH, DPST ON/OFF (B100R/ERIDE-WAND) $12.67 1 usually ships 1-5 days
S8 274-5768 SEAT SWITCH ASY, SCV2426 W/PACKARD $88.68 1 usually ships 1-5 days
S9 174-6283 3 postion dpst packard switch $72.32 1 usually ships 1-5 days
B1 174-8760 Float switch $104.36 1 usually ships 1-5 days
CB1 174-6302 100amp circuit breaker $111.95 1 usually ships 12-16 days
CB2 174-6534 Circuit breaker 3amp $17.79 1 usually ships 12-16 days
CB3 174-5740 Circuit Breaker 18 amp $37.39 1 usually ships 1-5 days
CB4 174-5740 Circuit Breaker 18 amp $37.39 1 usually ships 1-5 days
CB5 174-5059 Circuit breaker 20 amp (push button) $5.70 1 ships same day
CB6 174-5059 Circuit breaker 20 amp (push button) $5.70 1 ships same day
H1 174-8682 Back up alarm $56.91 1 usually ships 12-16 days
Y1 374-3333 36V 2-way solenoid valve $130.25 1 usually ships 1-5 days
Y2 374-3333 36V 2-way solenoid valve $130.25 1 usually ships 1-5 days
HM1 274-5887 HOUR METER, 10-80VDC (SCV2426) $54.58 1 usually ships 1-5 days
BDI 274-6252 Battery gauge $70.34 1 usually ships 12-16 days
G1 162-0123 12V 215Ah AGM battery - DISCOVER ONLY $1,026.38 3 ships same day
R1 274-8166 POTENTIOMETER BOX ASY, SCV W/PACKARD $221.77 1 usually ships 12-16 days
L1 174-6300 LED red assembly $14.78 1 usually ships 1-5 days
L2 274-2530 LED ASSY, AMBER 36VDC W/FEMALE QC $13.28 1 usually ships 1-5 days
C1 274-0720 CAP 1000PF RING TERM $6.37 2 usually ships 1-5 days
P3 374-3330 Wire harness $213.31 1 usually ships 1-5 days
N/S 374-3334 X28 CFS main wire harness $674.24 1 usually ships 1-5 days
