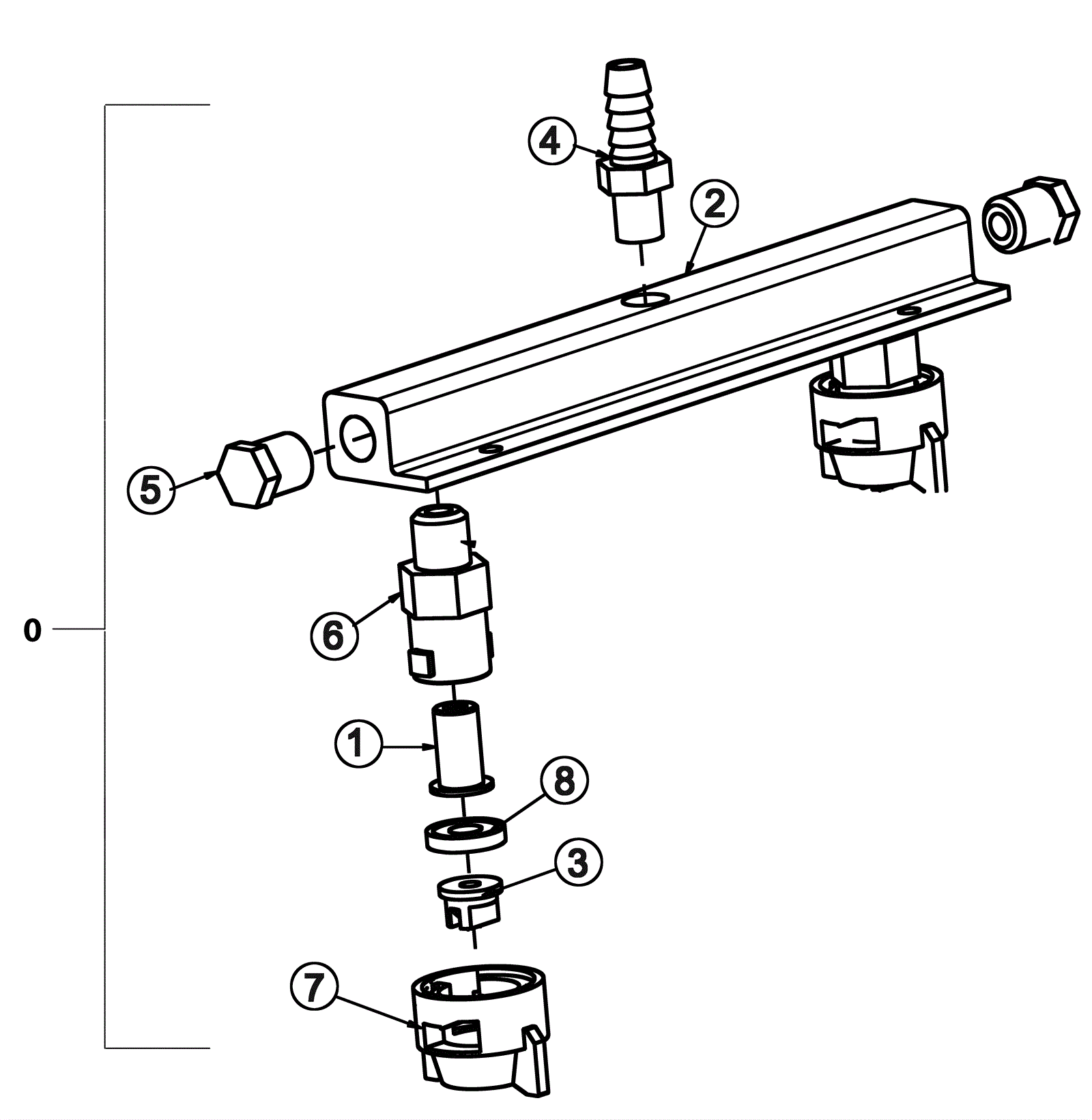

X RIDE 28 Spray Bar Subassembly

#PartDescriptionPriceReqNotesAvailability
0 374-3310 Spray bar assembly $94.57 1 (includes 1-8) usually ships 1-5 days
1 174-6410 Check valve $17.61 2 usually ships 12-16 days
2 374-3322 Spray bar $42.60 1 usually ships 1-5 days
3 374-3323 Spray tip $7.47 2 usually ships 1-5 days
4 174-0078 Barb $6.66 1 usually ships 12-16 days
5 174-3041 Pipe plug $1.55 2 usually ships 12-16 days
6 174-3046 Body inlet connector $8.62 2 usually ships 12-16 days
7 174-3047 Cap $9.31 2 usually ships 12-16 days
8 174-3088 Cap gasket $2.97 2 usually ships 12-16 days
