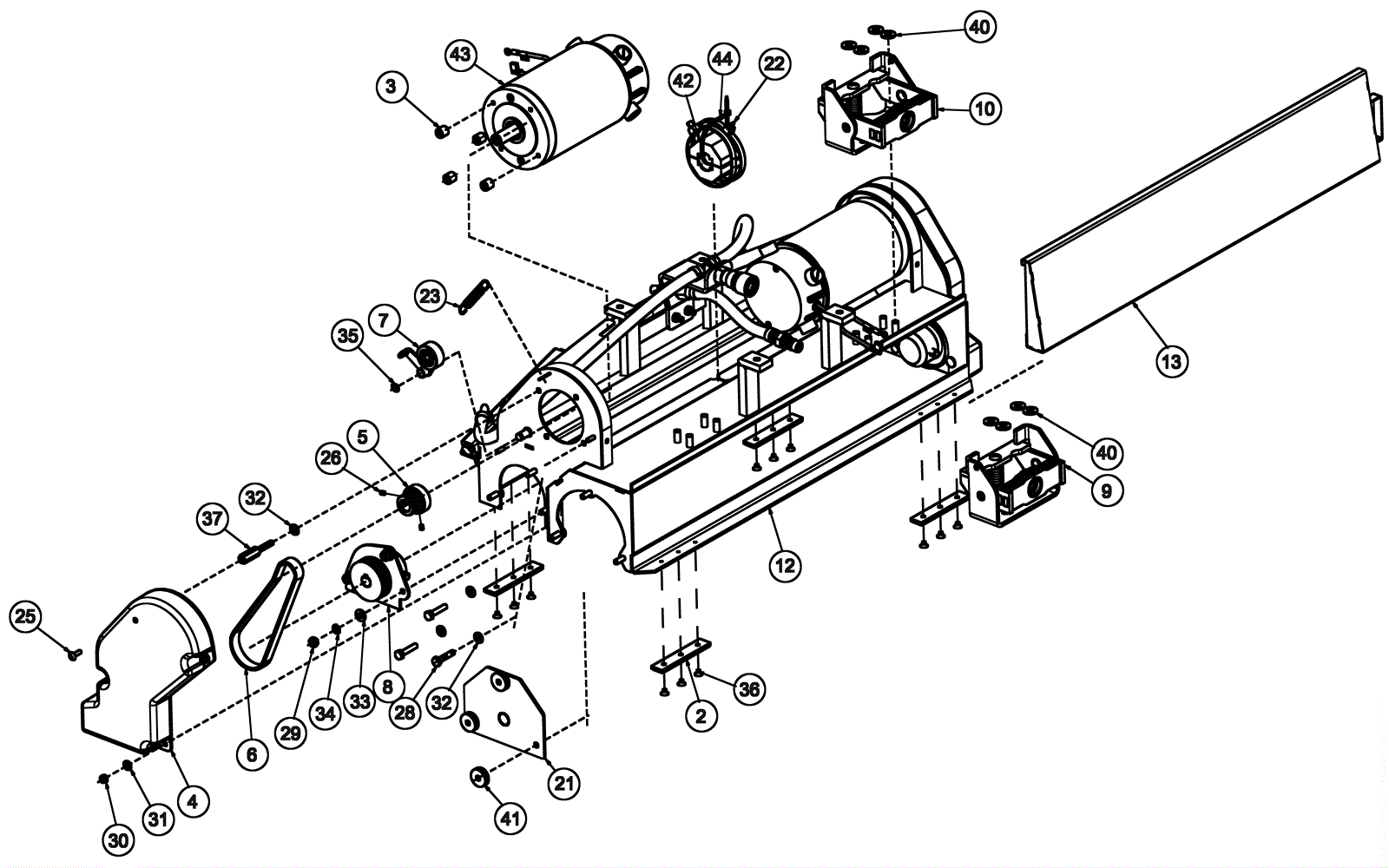

X RIDE 28 Cylindrical Scrubdeck Assembly-2

#PartDescriptionPriceReqNotesAvailability
2 374-3318 Plastic guide block $21.89 4 usually ships 1-5 days
3 374-3319 Motor spacer $3.78 8 usually ships 1-5 days
4 174-6404 Cylindrical scrubdeck belt cover assembly $44.05 2 usually ships 9-11 days
5 174-6406 Offset pulley poly v $48.32 2 usually ships 1-5 days
6 174-6411 18 inch j belt $16.77 2 usually ships 9-11 days
7 274-6391 IDLER ASSY $147.61 2 usually ships 1-5 days
8 174-6466 Cylindrical scrubdeck drive hub $227.41 2 usually ships 9-11 days
9 274-8590 VAC SHOE MOUNT ASSY-LEFT $324.17 1 usually ships 1-5 days
10 374-3320 Right hand vac shoe mount assembly $324.17 1 usually ships 1-5 days
12 274-9741 CYL. DECK WELDMENT - X RIDE 28 $1,414.11 1 usually ships 1-5 days
13 274-7289 DEBRIS BOX ASSEMBLY $128.47 1 usually ships 1-5 days
21 174-6413 Idle shaft weldment $183.39 2 ships same day
22 174-6185 Cable tie large $1.38 2 usually ships 1-5 days
23 174-0008 Return spring $3.10 2 usually ships 9-11 days
25 999-1070 Screw 10-32 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
26 174-6426 Screw10-32 x 1/4 set knurled point $1.08 4 usually ships 1-5 days
29 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 6 ships same day
30 999-0609 Nut 1/4-20 hex stainless steel $0.99 5 ships same day
31 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 5 ships same day
32 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 14 ships same day
33 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
34 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
35 174-6431 External retaining ring 3/8 $1.08 2 usually ships 9-11 days
36 999-9075 Screw 10-32 x 3/8 flat head socket steel $0.99 12 ships same day
37 374-3321 Standoff $21.96 2 usually ships 1-5 days
40 174-8251 Washer flat stainless steel $1.08 8 ships same day
41 374-1316 THUMB NUT - 1/4-20, BLACK PLASTIC $2.31 6 usually ships 9-11 days
42 274-6025 FERRITE-BEAD CLAMP ON $40.19 1 usually ships 1-5 days
43 274-9365 MOTOR-3/4HP 36V 1800RPM 40 inchLEADS $687.13 2 usually ships 1-5 days
44 997-2102 Cable tie $1.38 1 ships same day
