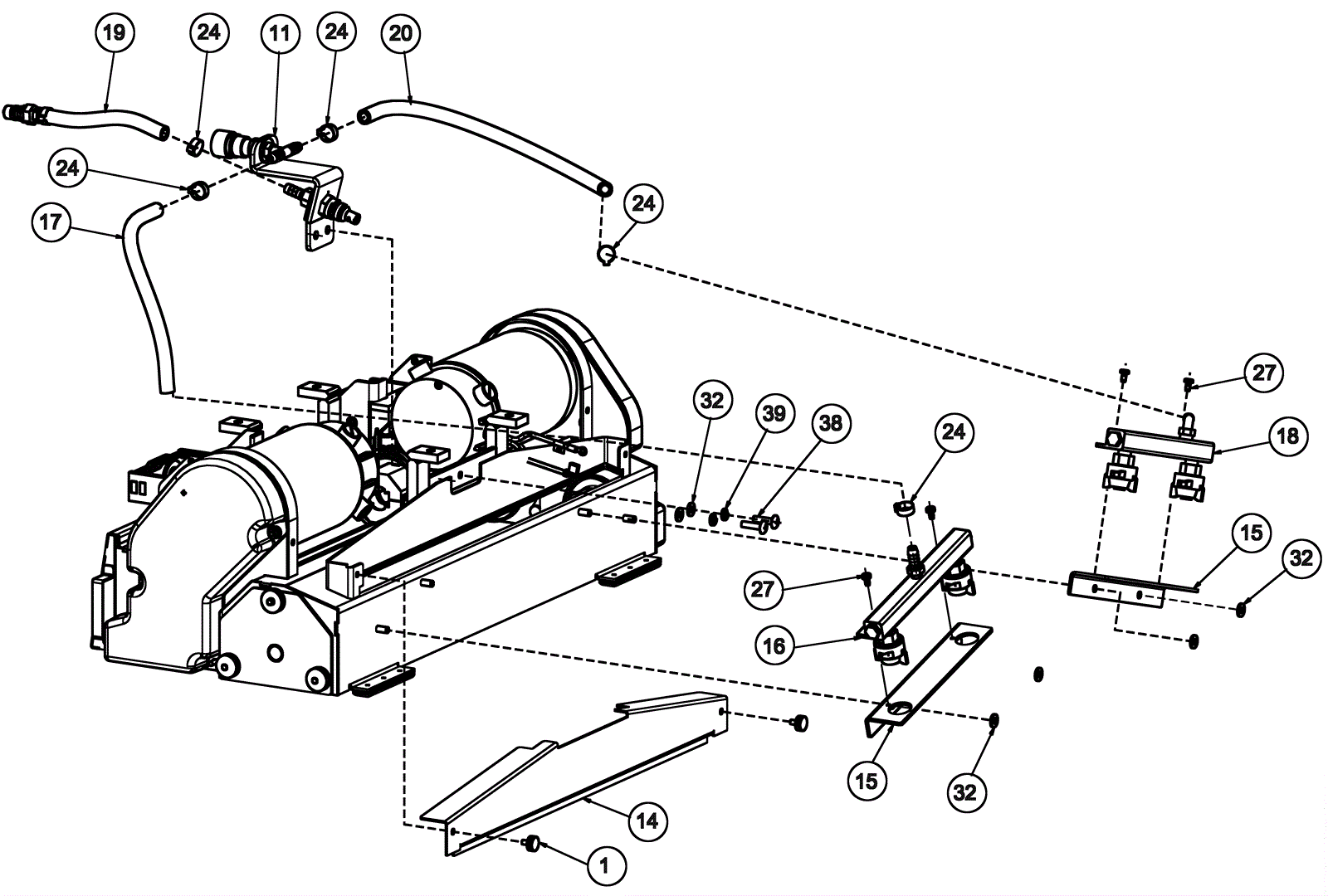

Cylindrical Scrubdeck Assembly-1

#PartDescriptionPriceReqNotesAvailability
1 174-3430 Screw 10-24 x 3/8 thumb $1.37 2 usually ships 1-5 days
11a 374-3307 Jet assembly maintenance mode $158.90 1 (model 988732) usually ships 1-5 days
11b 374-3316 Spray jet assembly intrim mode $118.75 1 (model 988732Z) (CFS) usually ships 1-5 days
14 374-3308 Front splash shield $82.16 1 usually ships 1-5 days
15 374-3309 Spray bar bracket $46.16 2 usually ships 1-5 days
16 374-3310 Spray bar assembly $105.08 1 usually ships 1-5 days
17 374-3311 HOSE, 3/8" ID X 14" NYLON REINFORCED $3.08 1 usually ships 1-5 days
18 374-3312 Left hand spray bar assembly $117.35 1 usually ships 1-5 days
19 374-3313 HOSE, 3/8" ID X 7" ASSEMBLY $20.33 1 usually ships 1-5 days
20 374-3314 HOSE, 3/8" ID X 18" NYLON REINFORCED $3.53 1 usually ships 1-5 days
24 997-2001 Hose clamp $2.42 5 ships same day
32 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 14 ships same day
38 999-1382 Screw 1/4-20 x 1 truss head phillips $1.16 2 ships same day
39 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
N/S 374-3315 Scrub deck valve mounting plate assembly $431.00 1 (model 988732Z) (CFS) usually ships 1-5 days
N/S 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 (model 988732Z) (CFS) ships same day
N/S 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 (model 988732Z) (CFS) ships same day
N/S 374-3317 HOSE, 3/8" ID X 10" NYLON REINFORCED $2.33 2 (model 988732Z) (CFS) usually ships 1-5 days
