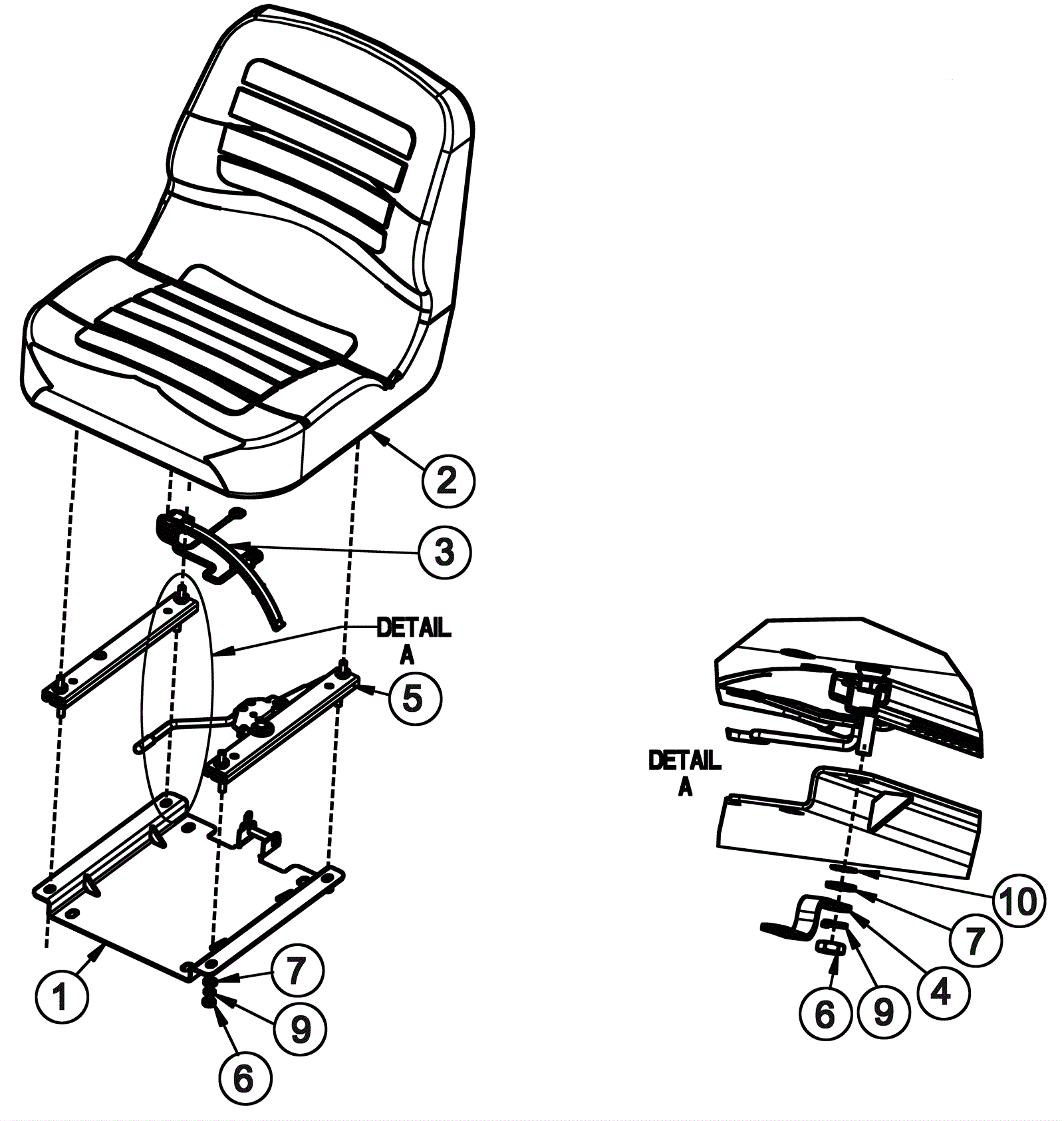

X RIDE 28 Seat Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-6642 WELD-BRKT SEAT SCV 24/26 $81.72 1 usually ships 1-5 days
2 174-8750 Seat assembly $285.34 1 usually ships 1-5 days
3 274-5768 SEAT SWITCH ASY, SCV2426 W/PACKARD $98.53 1 usually ships 1-5 days
4 374-3303 Strap $20.43 1 usually ships 1-5 days
5 174-8751 Slide kit assembly $121.28 1 usually ships 1-5 days
6 999-0069 Nut 5/16-18 hex $0.99 4 ships same day
7 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
9 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
10 174-0537 Washer 3/8 helical stainless steel $1.08 1 usually ships 1-5 days
N/S 174-8345 Clevis pin 3/8 x 2 1/4 $1.15 1 usually ships 12-16 days
N/S 174-0201 Cotter pin $1.33 1 usually ships 12-16 days
N/S 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
