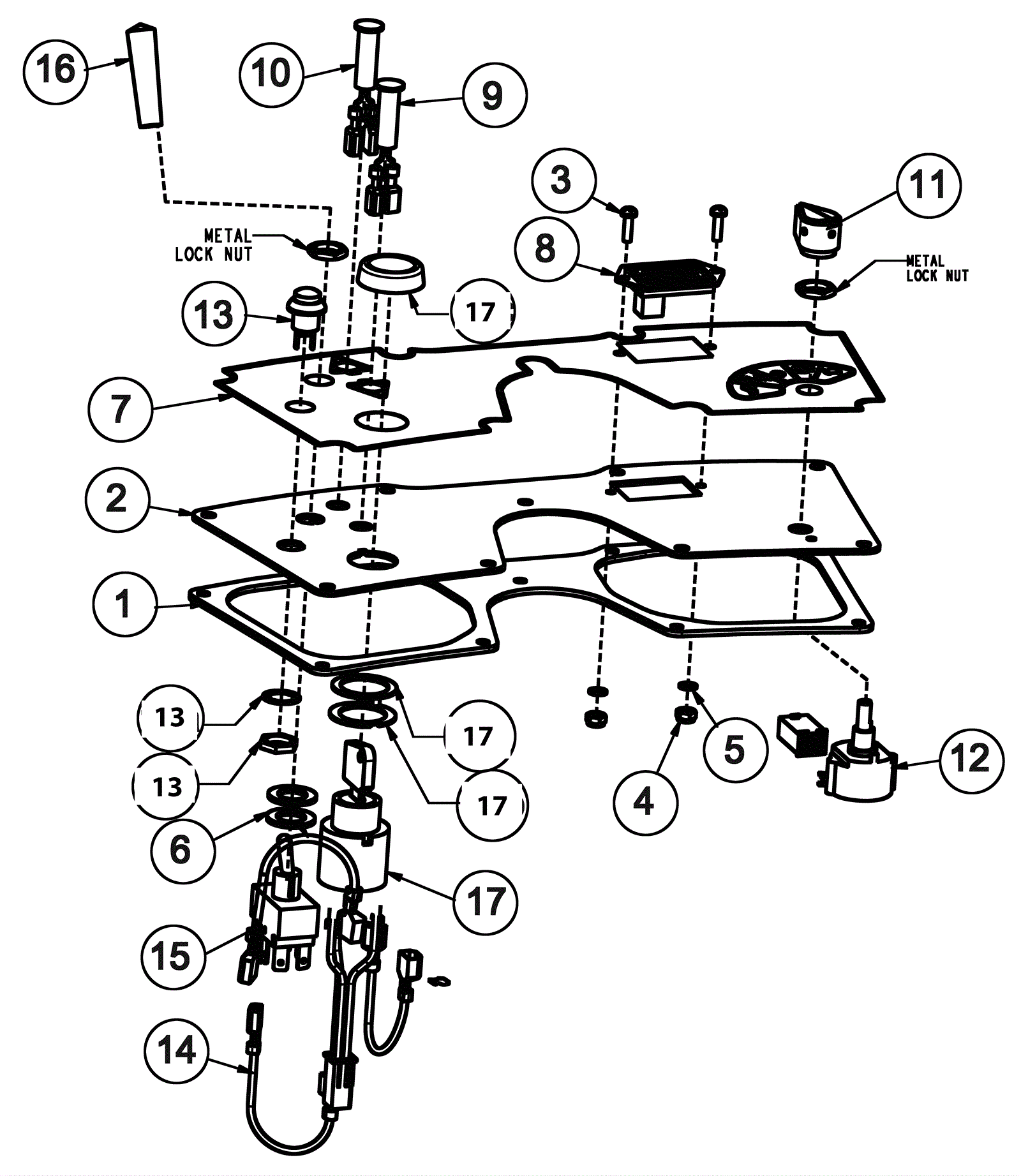

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
374-3301
|
Dash panel gasket |
$13.56
|
1 |
|
usually ships 1-5 days |
2 |
374-3302
|
Dashboard panel assembly |
$69.13
|
1 |
|
usually ships 1-5 days |
3 |
999-0382
|
Screw 6-32 x 1/2 pan head slotted zinc plated |
$0.99
|
2 |
|
ships same day |
4 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
$0.99
|
2 |
|
ships same day |
5 |
174-5230
|
Washer #6 flat |
$1.33
|
2 |
|
usually ships 12-16 days |
6 |
174-0528
|
Washer 33/64 x 7/8 x 1/16 pleated flat |
$1.08
|
2 |
|
usually ships 12-16 days |
7 |
274-2743
|
DECAL, DASHBOARD X RIDE 28 |
$11.03
|
1 |
|
usually ships 1-5 days |
8 |
274-6252
|
Battery gauge |
$78.15
|
1 |
|
usually ships 12-16 days |
9 |
174-6300
|
LED red assembly |
$16.42
|
1 |
|
usually ships 1-5 days |
10 |
274-2530
|
LED ASSY, AMBER 36VDC W/FEMALE QC |
$14.75
|
1 |
|
usually ships 1-5 days |
11 |
174-6333
|
Knob-mode selector |
$18.82
|
1 |
|
usually ships 1-5 days |
12 |
174-6336
|
Mode selector switch assembly |
$131.61
|
1 |
|
usually ships 12-16 days |
13a |
174-8777
|
Horn switch |
$39.18
|
1 |
(includes 13b-13c) |
usually ships 1-5 days |
13b |
N/A
|
Not available |
Call for price
|
1 |
(lock washer) |
usually ships 3-26 days |
13c |
N/A
|
Not available |
Call for price
|
1 |
(plastic lock nut) |
usually ships 3-26 days |
14 |
274-0746
|
WIRE ASSY, RED/VIOLET 18G |
$4.48
|
2 |
|
usually ships 1-5 days |
15 |
274-3344
|
SWITCH, TOGGLE 2POS DPDT ON/ON .687 inchBAT |
$30.11
|
1 |
|
usually ships 12-16 days |
16 |
374-2112
|
TOGGLE HANDLE EXTENSION |
$2.27
|
1 |
|
usually ships 1-5 days |
17a |
274-7205
|
Keyswitch assembly w/ harness |
$43.02
|
1 |
(includes 17b-17d) |
ships same day |
17b |
N/A
|
Not available |
Call for price
|
1 |
(plastic spacer) |
usually ships 3-26 days |
17c |
N/A
|
Not available |
Call for price
|
1 |
(rubber spacer) |
usually ships 3-26 days |
17d |
N/A
|
Not available |
Call for price
|
1 |
(threaded bezel) |
usually ships 3-26 days |
