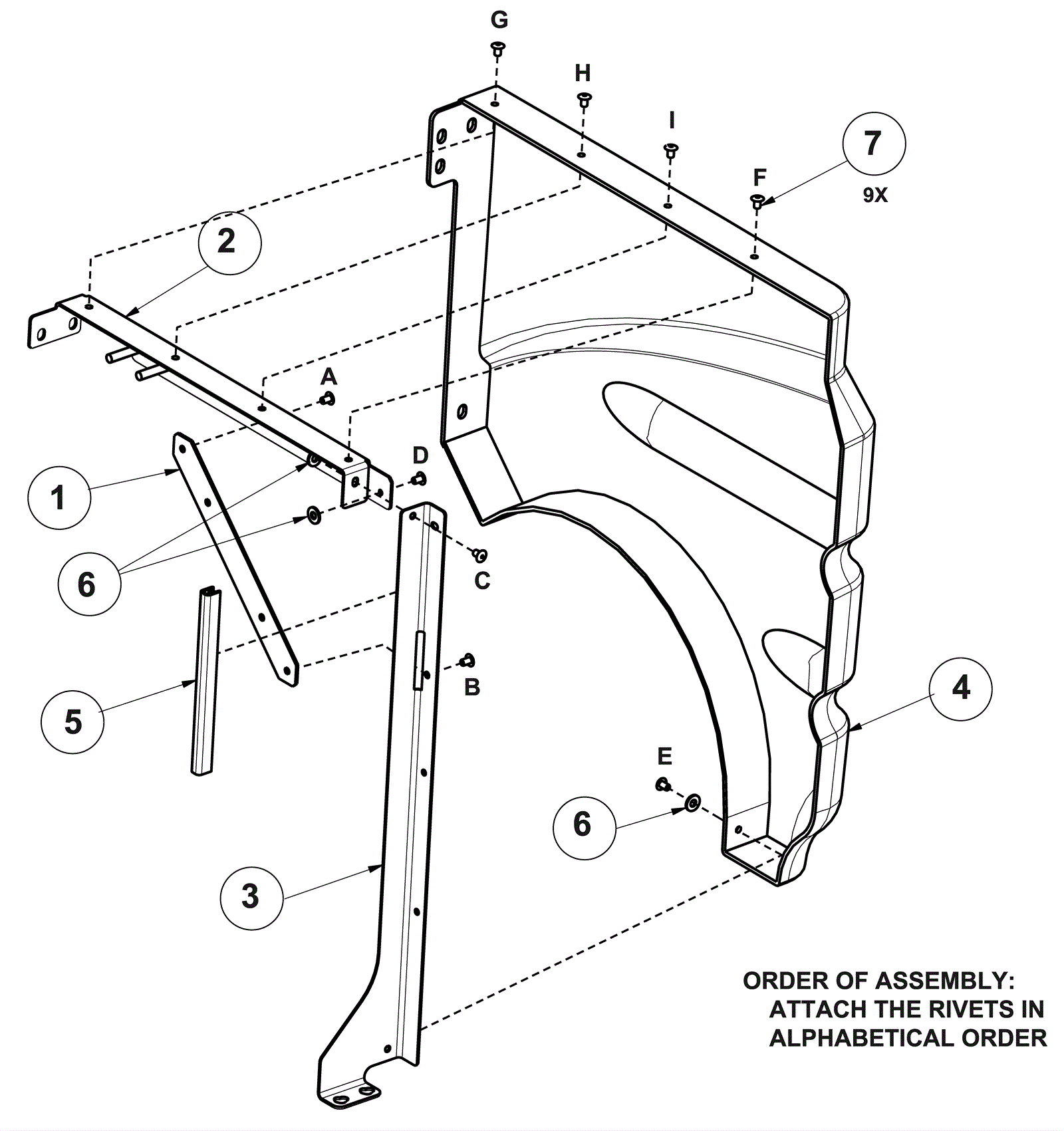

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
374-3293
|
Side panel frame diagonal brace |
$26.53
|
1 |
|
usually ships 1-5 days |
2a |
374-3294
|
Right hand frame upper bracket |
$28.30
|
1 |
(right hand) |
usually ships 1-5 days |
2b |
374-3298
|
Left hand side frame upper bracket |
$22.50
|
1 |
(left hand) |
usually ships 1-5 days |
3a |
374-3295
|
Right hand side panel frame brace |
$35.50
|
1 |
(right hand) |
usually ships 1-5 days |
3b |
374-3299
|
Left hand side frame panel brace |
$31.75
|
1 |
(left hand) |
usually ships 1-5 days |
4a |
374-3296
|
Right hand rear side cover |
$76.78
|
1 |
(right hand) |
usually ships 1-5 days |
4b |
374-3300
|
Left hand rear side panel |
$84.56
|
1 |
(left hand) |
usually ships 1-5 days |
5 |
374-3297
|
Edge trim |
$2.69
|
1 |
(right hand) |
usually ships 1-5 days |
6 |
999-0006
|
Washer 3/16 flat zinc plated |
$0.99
|
3 |
|
ships same day |
7 |
174-5108
|
Rivet 3/16 x 1/4 pop |
$1.08
|
9 |
|
usually ships 1-5 days |
