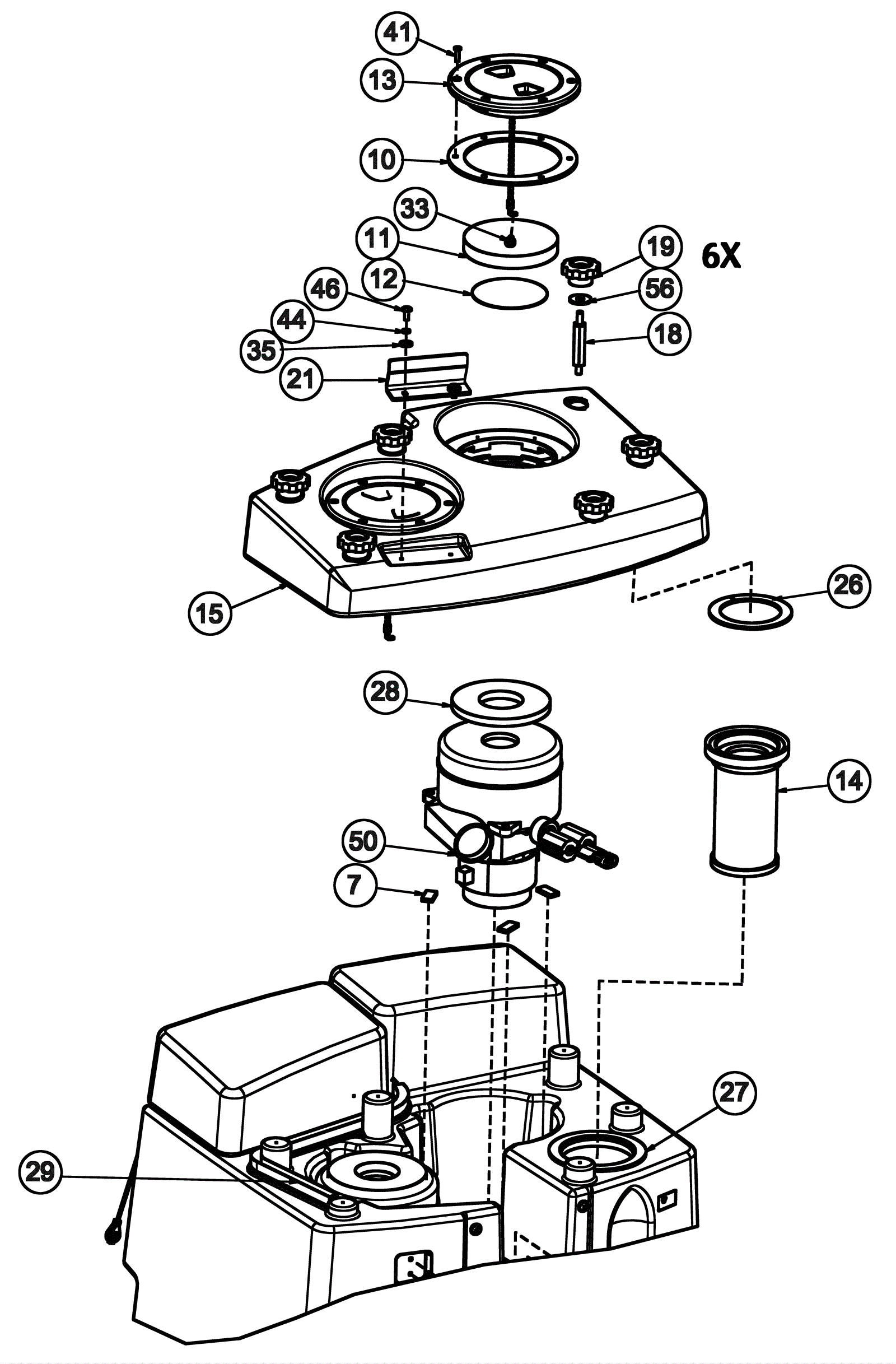

X RIDE 28 Recovery Tank Assembly-3

#PartDescriptionPriceReqNotesAvailability
7 174-3748 1 inch isolator pads $5.92 6 usually ships 12-16 days
10 174-6461 Neo gasket 6 x 4 1/2 x 1/8 $3.82 2 ships same day
11 174-6462 Vacuum motor filter $4.81 2 usually ships 12-16 days
12 174-6463 Vacuum motor inlet screen $6.18 2 usually ships 12-16 days
13 174-6464 Fill cap with chain assembly $43.86 2 usually ships 12-16 days
14 374-3285 Single ball float $50.01 1 usually ships 1-5 days
15 374-3286 Fixed lid $63.30 1 usually ships 1-5 days
18 374-3287 Hex stud 1/4-20 right hand thread $14.09 6 usually ships 1-5 days
19 274-0269 KNOB, 1/4-20, THREAD UNC-2B x 7/16 DP $3.75 6 usually ships 1-5 days
21 274-4557 BRACKET, FIXED LID, XRIDE 28 $33.31 1 usually ships 1-5 days
26 374-3288 Manifold gasket $0.97 1 usually ships 1-5 days
27 374-3289 Screened float gasket $3.35 1 usually ships 1-5 days
28 374-3290 Gasket $9.86 2 usually ships 1-5 days
29 374-3291 Gasket $5.00 1 usually ships 1-5 days
33 174-5991 Screw #10 x 5/8 plated hi/low $0.99 2 usually ships 12-16 days
35 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 12 ships same day
41 999-0847 Screw 8-32 x 5/8 socket head alloy plain finish $2.64 12 ships same day
44 999-0089 Washer #10 internal star lock zinc plated $0.99 2 ships same day
46 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 16 ships same day
50 274-9001 VAC MOTOR ASSY, SCV2426 CE $422.93 2 usually ships 12-16 days
56 174-2619 Washer fender 5/16 $1.20 6 usually ships 1-5 days
N/S 374-3292 Wire assembly $44.65 1 (vac motor connect to motor x28) usually ships 1-5 days
