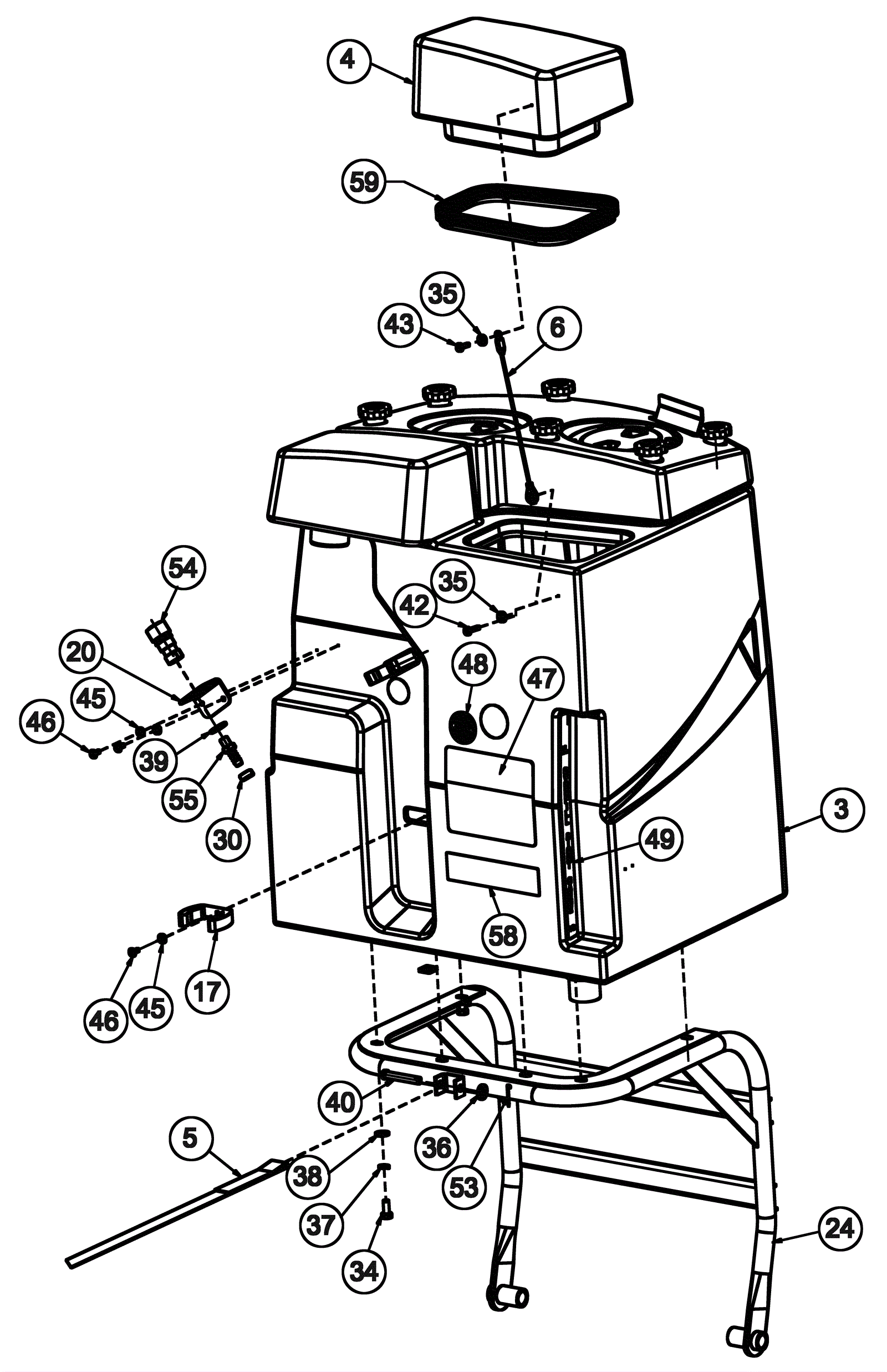

X RIDE 28 Recovery Tank Assembly-2

#PartDescriptionPriceReqNotesAvailability
3 274-8924 RECOVERY TANK - X RIDE 28 $413.53 1 usually ships 1-5 days
4 374-3278 Removable lid $32.19 1 usually ships 1-5 days
5 174-8460 Strap $6.64 1 usually ships 12-16 days
6 174-6558 Recovery tank lanyard assembly $5.98 1 usually ships 1-5 days
17 374-3279 Tool clip $7.97 2 usually ships 1-5 days
20 374-3280 Mounting bracket $32.58 1 usually ships 1-5 days
24 374-3281 Recovery tank frame weldment $554.92 1 usually ships 1-5 days
30 997-2001 Hose clamp $2.42 1 ships same day
34 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 6 usually ships 1-5 days
35 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 12 ships same day
36 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
37 999-0028 Washer 5/16 split lock plain finish $0.99 6 ships same day
38 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
39 174-3093 Washer .56 x 1 flat $0.97 1 usually ships 12-16 days
40 174-8345 Clevis pin 3/8 x 2 1/4 $1.04 1 usually ships 12-16 days
42 174-3187 Screw 10-24 x 1 stainless steel $0.97 1 ships same day
45 999-0998 Washer #10 flat stainless steel $0.99 14 ships same day
46 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 16 ships same day
47 374-3282 Battery decal Call for price 1 usually ships 1-5 days
48 174-9278 Made in USA decal $11.63 1 usually ships 12-16 days
49 274-0743 DECAL-OVERFILL SIGHT GAUGE SCV 24/26 $10.22 1 usually ships 1-5 days
53 997-2506 Cotter pin $0.99 1 ships same day
54 174-3039 Female coupler $46.04 1 usually ships 12-16 days
55 174-0078 Barb $6.66 1 usually ships 12-16 days
58 374-3283 Explosive gases decal $7.15 1 usually ships 1-5 days
59 374-3284 Removable lid gasket $7.54 1 usually ships 1-5 days
