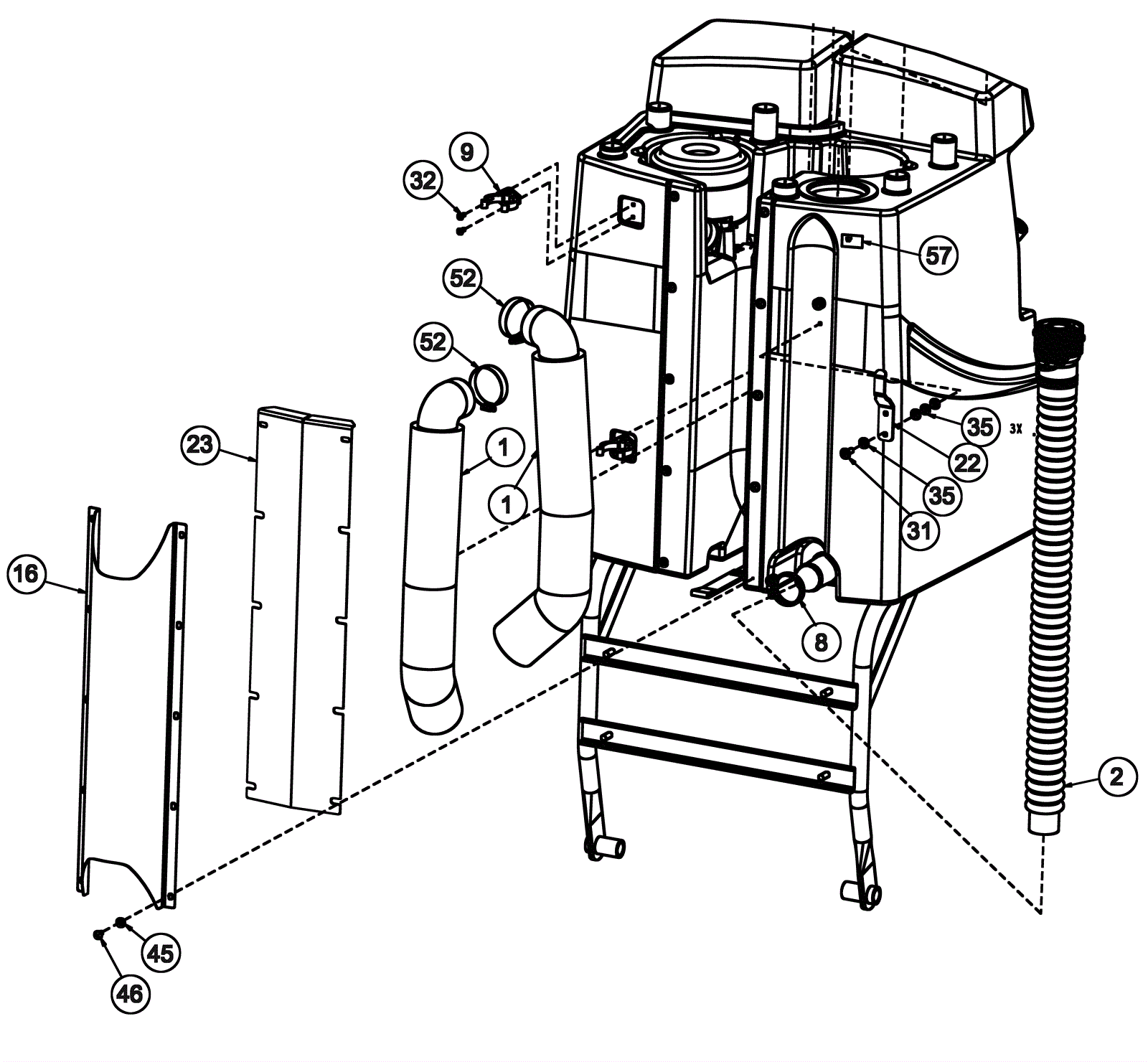

X RIDE 28 Recovery Tank Assembly-1

#PartDescriptionPriceReqNotesAvailability
1 274-6003 MUFFLER-VAC MOTOR, SCV 24/26 $62.33 2 usually ships 12-16 days
2 274-6808 RECOVERY TANK DRAIN HOSE ASSY-SCV 2426 W $94.37 1 usually ships 12-16 days
8 374-1975 HOSE CLAMP-WORM DRV SAE #28 ALL 300 SER $1.77 1 ships same day
9 174-5968 1 1/2 inch hose clip $6.34 2 ships same day
16 374-3274 Recovery tank back cover $80.45 1 usually ships 1-5 days
22 374-3275 Recovery hose bracket $37.77 1 usually ships 1-5 days
23 374-3276 Exhaust hose guard $57.92 1 usually ships 1-5 days
31 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
32 174-2271 Screw 8-32 x 1/2 $0.99 4 usually ships 12-16 days
35 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 12 ships same day
45 999-0998 Washer #10 flat stainless steel $0.99 14 ships same day
46 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 16 ships same day
52 174-5175 Hose clamp $6.79 2 usually ships 1-5 days
57 174-8961 Decal $4.08 1 usually ships 1-5 days
N/S 374-3277 HOSE ASSEMBLY 3/8" ID X 58" NYL REIN CED $24.85 1 usually ships 1-5 days
