| # | Part | Description | Price | Req | Notes | Availability |
|---|

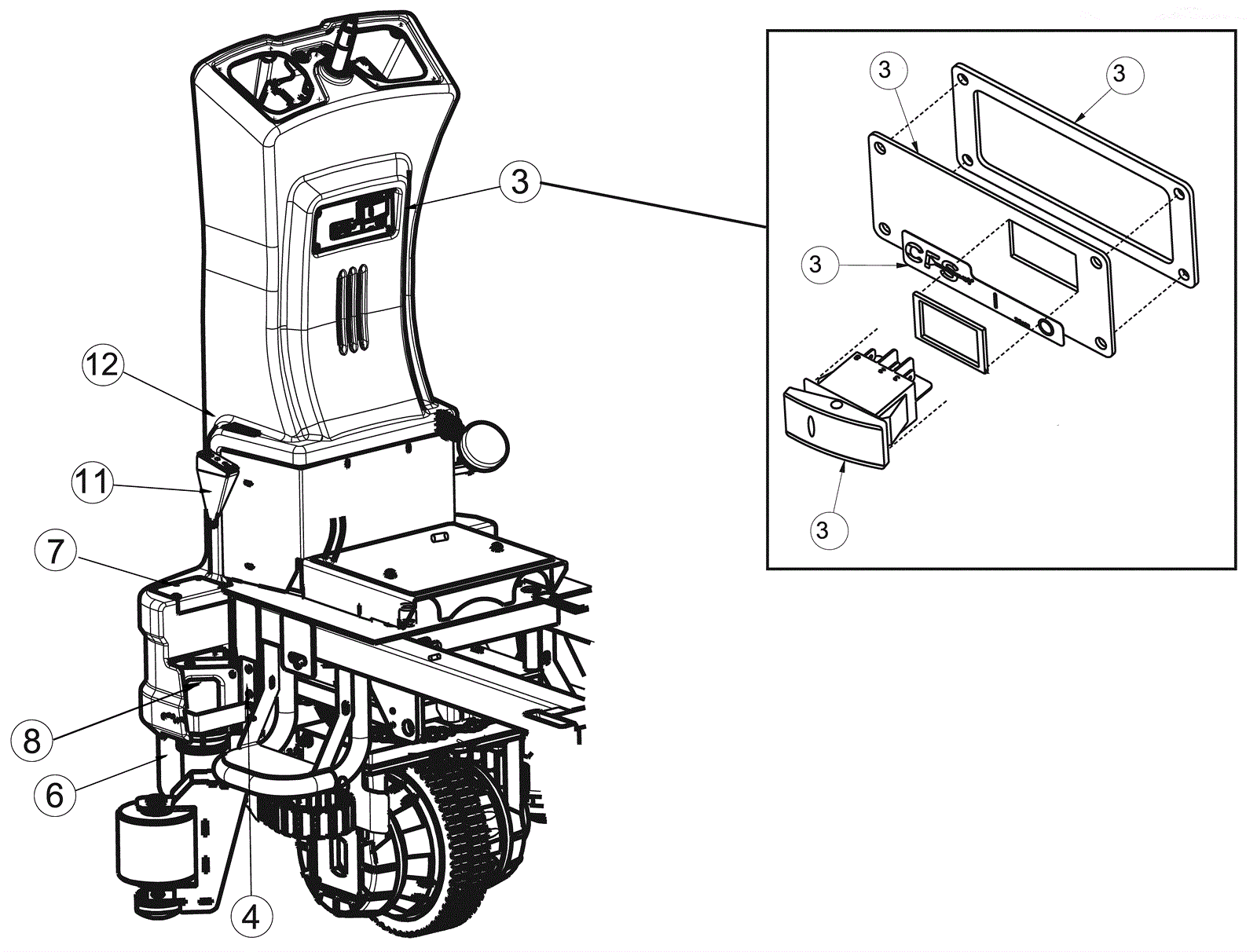

3a |
374-3360
|
Ozone on/off switch panel assembly |
$113.44
|
1 |
(includes 3b-3e) |
usually ships 1-5 days |
3b |
274-1227
|
GASKET - REAR SWITCH PANEL, SCV 2426 |
$4.05
|
1 |
|
usually ships 1-5 days |
3c |
274-2498
|
SWITCH PANEL - CONSOLE, SCV 26 |
$31.64
|
1 |
|
usually ships 1-5 days |
3d |
374-3361
|
On/off decal |
$21.18
|
1 |
|
usually ships 1-5 days |
3e |
274-3711
|
SW, DPST ILLUM. ON/OFF (SCV 2426 WAND) |
$25.26
|
1 |
(comes with gasket behind it) |
usually ships 1-5 days |
4 |
374-3362
|
Ozone generator unit mounting bracket |
$48.39
|
1 |
|
usually ships 1-5 days |
6 |
374-3364
|
Ozone generator unit guard |
$26.11
|
1 |
|
usually ships 1-5 days |
7 |
374-3365
|
Console LED access cover plate |
$10.08
|
1 |
|
usually ships 1-5 days |
8 |
374-3366
|
Ozone base generator unit mounting assembly |
$1,803.22
|
1 |
|
usually ships 1-5 days |
11 |
374-3369
|
Side mount LED's assembly |
$232.63
|
1 |
|
usually ships 1-5 days |
12 |
374-3370
|
Ozone generator status LED's decal |
$11.45
|
1 |
|
usually ships 1-5 days |
N/S |
374-3358
|
Tubing to ozone generator assembly |
$45.78
|
1 |
|
usually ships 1-5 days |
N/S |
374-3359
|
Tubing and hose to feed scrubdeck assembly |
$127.79
|
1 |
|
usually ships 1-5 days |
N/S |
374-3363
|
Console bumper stiffener bracket |
$43.53
|
1 |
|
usually ships 1-5 days |
N/S |
374-3367
|
Fixed end cap clamping bar |
$24.36
|
1 |
|
usually ships 1-5 days |
N/S |
374-3368
|
Fixed end cap mounting plate |
$41.63
|
1 |
|
usually ships 1-5 days |
