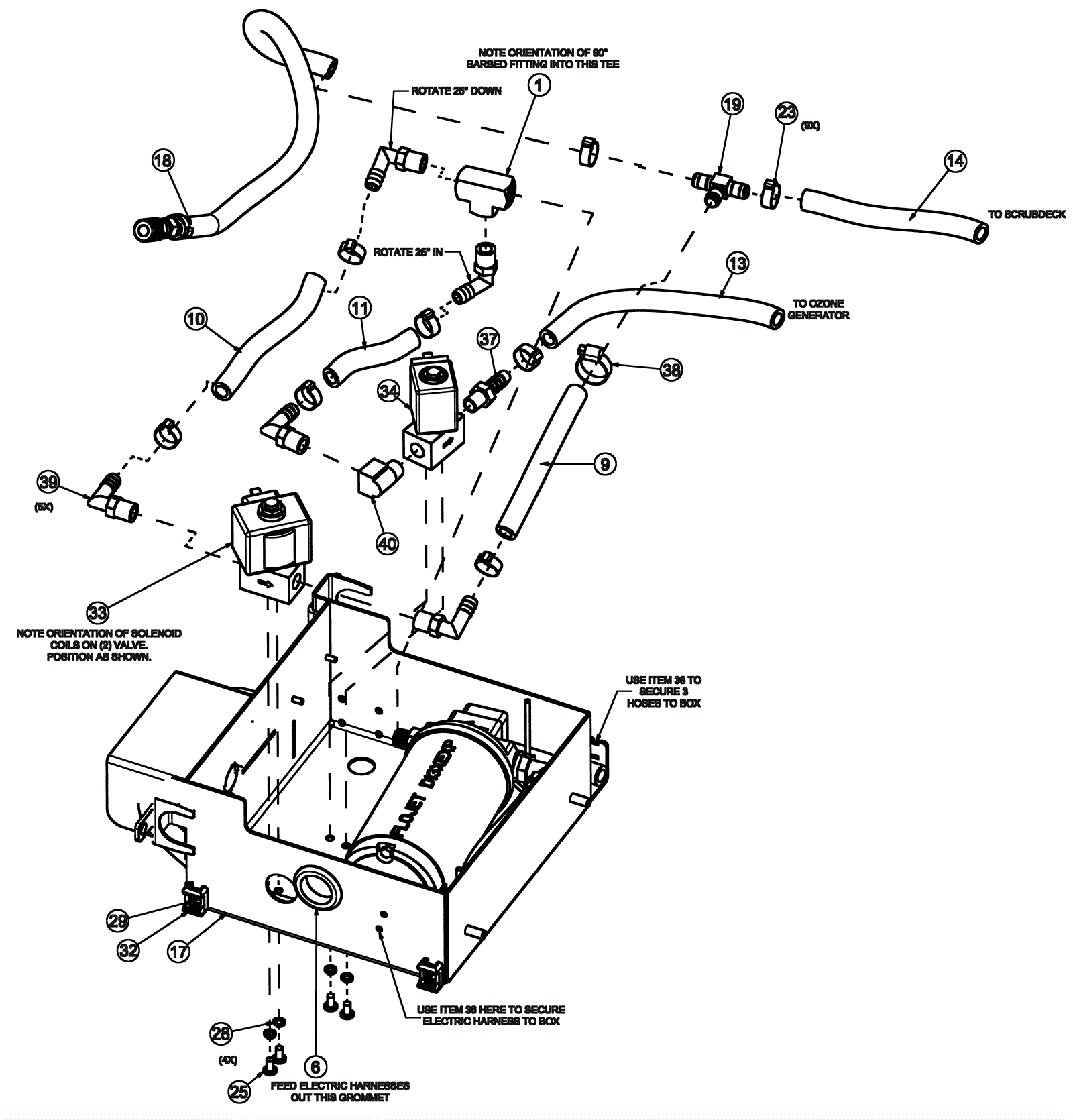

X RIDE 28 Pump Box Assembly-2-Model 988732Z

#PartDescriptionPriceReqNotesAvailability
1 274-3426 TEE-BRASS 1/4 inch FPT $11.38 1 usually ships 1-5 days
6 174-3393 Grommet $1.24 1 usually ships 1-5 days
9 374-3348 HOSE, 3/8" ID X 7" NYLON REINFORCED $2.03 1 usually ships 1-5 days
10 374-3349 HOSE, 3/8" ID X 5.63" NYLON REINFORCED $1.85 1 usually ships 1-5 days
11 374-3350 HOSE, 3/8" ID X 4.13" NYLON REINFORCED $1.58 1 usually ships 1-5 days
13 374-3351 HOSE, 3/8" ID X 70.5" NYLON REINFORCED $9.00 1 usually ships 1-5 days
14 374-3352 HOSE, 3/8" ID X 30.25" NYLON REINFORCED $4.37 1 usually ships 1-5 days
17 374-3353 XR28 CFS pump box assembly $184.82 1 usually ships 1-5 days
18 374-3354 ASSY-HOSE, 3/8" ID X 14"LG W/QC $33.43 1 usually ships 1-5 days
19 174-0467 3/8 double-barb tee $6.35 1 usually ships 1-5 days
23 997-2001 Hose clamp $2.42 9 ships same day
25 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 4 ships same day
28 174-5259 Washer #10 helical $0.97 8 usually ships 12-16 days
29 174-5108 Rivet 3/16 x 1/4 pop $0.97 2 usually ships 1-5 days
32 374-3355 Cable tie mount $1.00 2 usually ships 1-5 days
33 374-3356 36V 2-way solenoid valve $204.71 1 usually ships 1-5 days
34 374-3333 36V 2-way solenoid valve $130.25 1 usually ships 1-5 days
37 174-0078 Barb $6.66 1 usually ships 12-16 days
38 174-6011 Hose clamp $3.88 3 usually ships 12-16 days
39 164-0187 90 degree elbow barb $6.23 5 ships same day
40 374-3357 FTG-90 ELL 1\4 MPT TO 1\4 FPT $4.52 1 usually ships 1-5 days
N/S 174-6185 Cable tie large $1.24 3 usually ships 1-5 days
N/S 997-2102 Cable tie $1.24 4 ships same day
