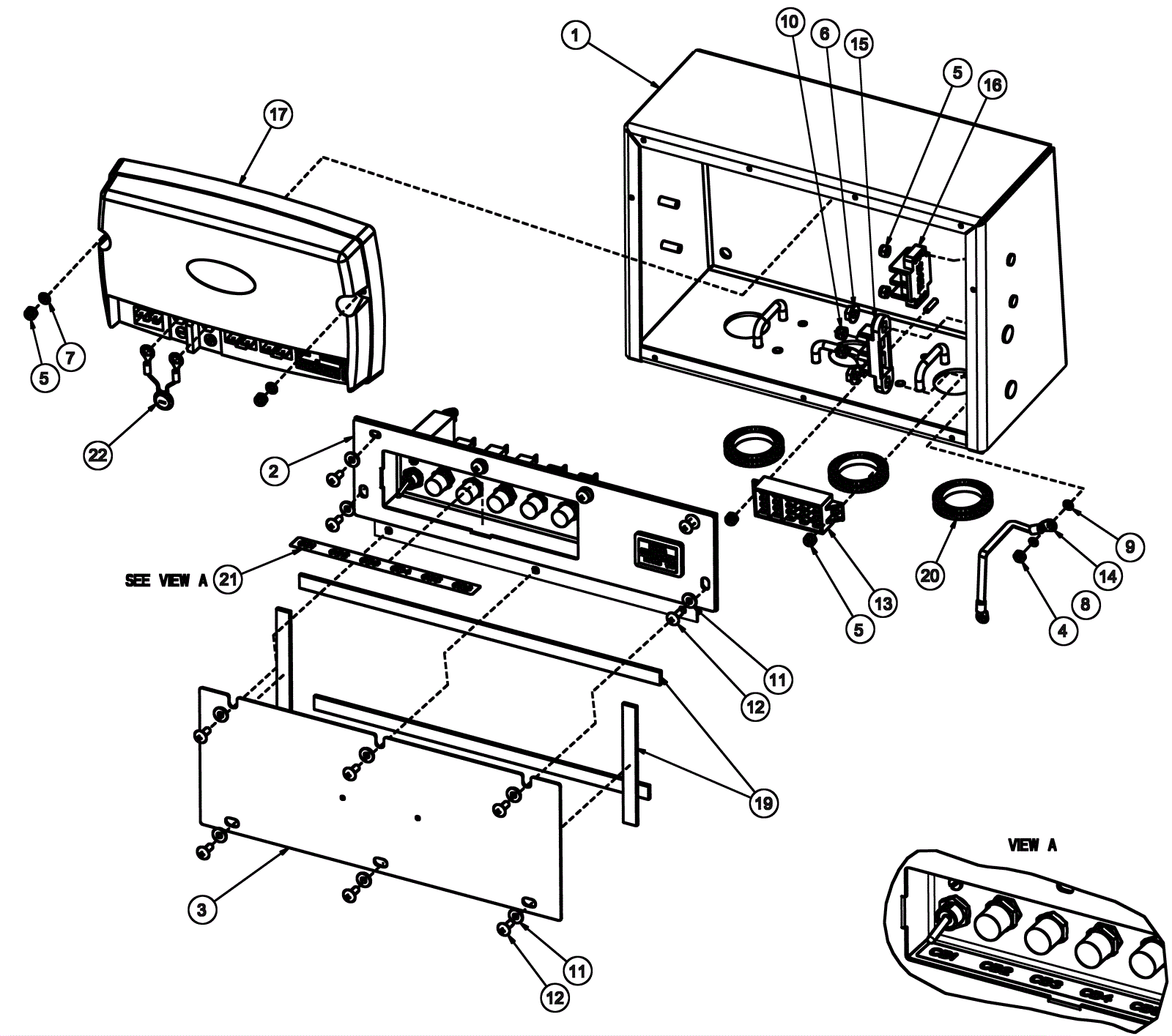

X RIDE 28 Electrical Box Assembly-Model 988732

#PartDescriptionPriceReqNotesAvailability
1 374-3249 Electrical box weldment $338.44 1 usually ships 1-5 days
2 374-3250 Control panel assembly $331.41 1 usually ships 1-5 days
3 374-3251 Electrical door panel $41.67 1 usually ships 1-5 days
4 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 1 ships same day
5 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 6 ships same day
6 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 2 ships same day
7 999-0412 Washer #8 SAE flat $0.99 2 ships same day
8 174-5406 Washer 8 helical $1.08 1 usually ships 12-16 days
9 174-3206 Washer 8 inter tooth $1.08 1 usually ships 1-5 days
10 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
11 999-0998 Washer #10 flat stainless steel $0.99 12 ships same day
12 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 12 ships same day
13 174-6295 Terminal block $29.75 1 usually ships 1-5 days
14 274-1508 GROUND STRAP SCV2426 CONTROL BOX TOFRAME $10.19 1 usually ships 12-16 days
15 374-3252 30A junction block $20.82 1 usually ships 1-5 days
16 374-3253 45A terminal block $9.79 1 usually ships 1-5 days
17 274-9729 CONTROLLER, TRIO+ XRIDE DRY (AGM) BAT $1,350.70 1 usually ships 1-5 days
19 174-6330 Dortite 1/2 $1.38 3.16in usually ships 1-5 days
20 174-8771 Serrated grommet strip $2.28 3 usually ships 1-5 days
21 374-3255 Circuit breaker decal Call for price 1 usually ships 1-5 days
22 274-0850 VARISTOR ASY, RING TERMINALS 1/4 inch $6.83 1 usually ships 1-5 days
N/S 374-3254 Control box wires $617.08 1 usually ships 1-5 days
