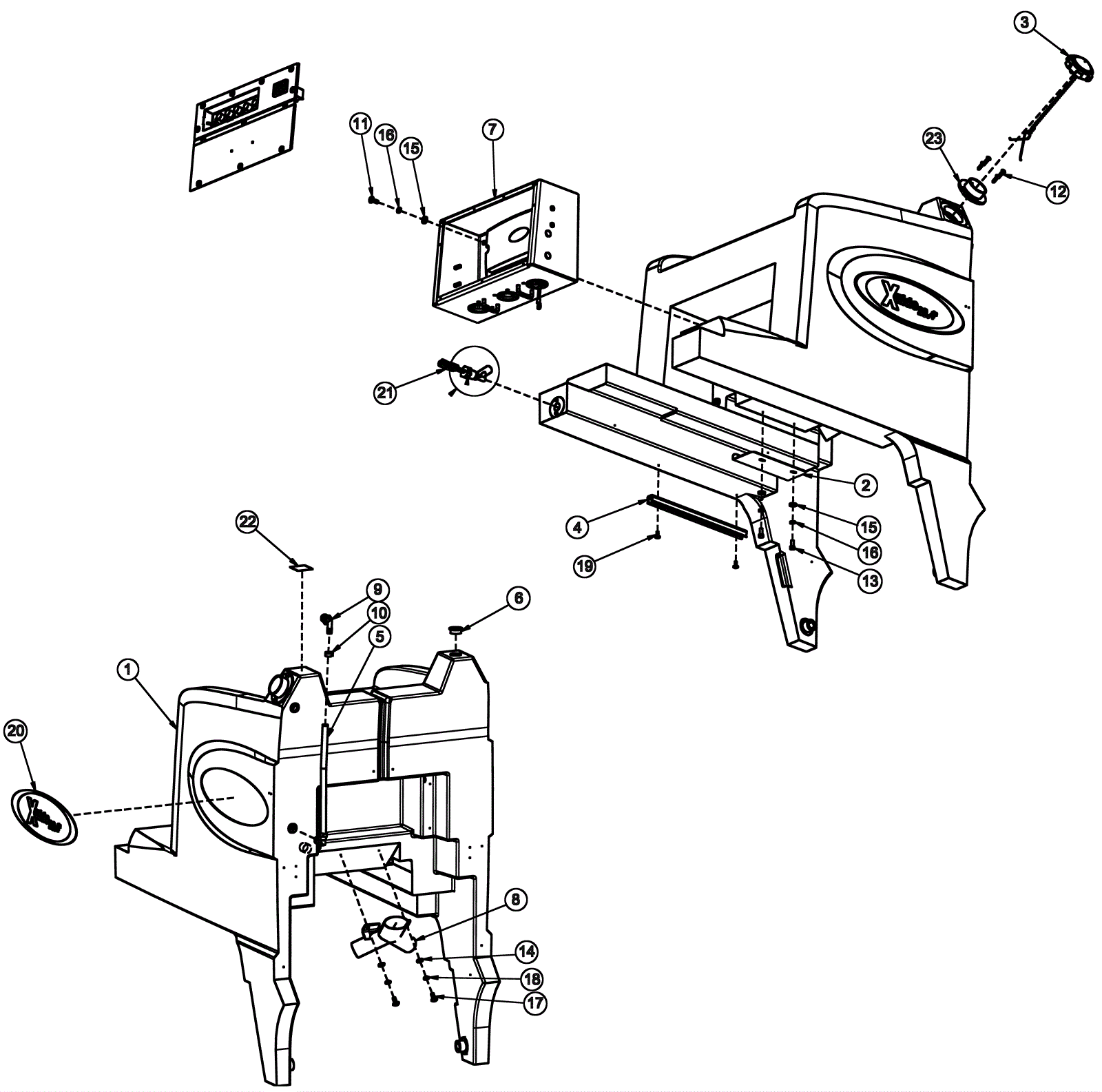

X RIDE 28 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-9681 SOLUTION TANK, SCV24 $993.31 1 usually ships 1-5 days
2 274-1629 SCV 24, WIRE BUNDLE, COVER PLATE $11.47 1 usually ships 1-5 days
3 174-9608 Unvented plastic cap with lanyard $30.83 1 usually ships 12-16 days
4 174-0061 U channel $23.25 1 usually ships 1-5 days
5 274-7584 WELDMENT, MOTOR SUPPORT $95.45 1 usually ships 1-5 days
6 174-8755 Vent plug $1.24 1 usually ships 1-5 days
7a 374-3244 Main electric box assembly $2,054.48 1 usually ships 1-5 days
7b 374-3245 Main electric box assembly $2,323.29 1 (cfs) (model 988732z) usually ships 1-5 days
8 274-8609 Y PIPE ADAPTER, X RIDE 28 $116.66 1 usually ships 1-5 days
9 174-0083 90 degree elbow barb $3.54 2 usually ships 12-16 days
10 174-3351 Clamp $1.75 2 usually ships 1-5 days
11 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
12 174-8192 Screw 10 x 3/4 stainless steel $0.97 4 usually ships 12-16 days
13 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 2 usually ships 1-5 days
14 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
15 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
16 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
17 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
18 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
19 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 2 ships same day
20 374-3246 X ride 28 decal $15.35 2 usually ships 1-5 days
21 174-8760 Float switch $104.36 1 usually ships 1-5 days
22 374-3247 Max solution temperature decal $2.89 1 usually ships 1-5 days
23 274-1533 SPINWELD # 20D MACHINED $14.01 1 usually ships 1-5 days
