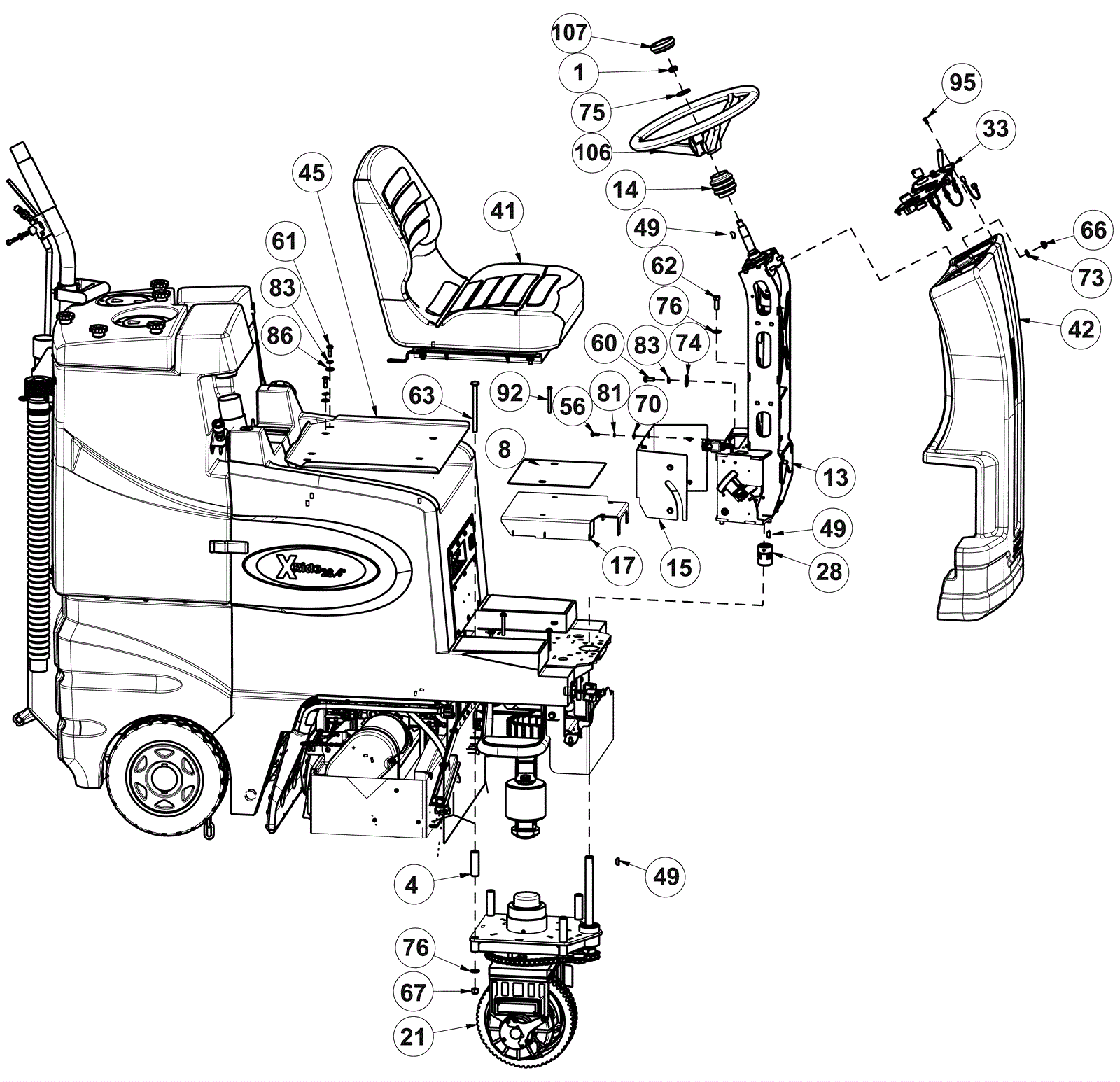

X RIDE 28 Main Assembly-3

#PartDescriptionPriceReqNotesAvailability
1 999-0182 Nut 1/2-20 hex plain finish $0.99 1 ships same day
4 274-1921 DRIVE MOTOR STANDOFF, SCV 24/26 $13.10 4 usually ships 1-5 days
8 274-3681 FLOOR PANEL ANTISKID, SCV 24/26 $7.97 1 usually ships 1-5 days
13 374-3216 Steering sub assembly $1,494.90 1 usually ships 1-5 days
14 274-3207 BOOT - STEERING SHAFT, SCV 2426 $20.40 1 usually ships 12-16 days
15 274-3522 STEERING COVER - LOWER, SCV 2426 $50.00 1 usually ships 1-5 days
17 374-3217 Floor weldment $83.71 1 usually ships 1-5 days
21 374-0312 FRONT DRIVE ASSEMBLY- ERIDE $4,715.50 1 usually ships 12-16 days
28 174-8090 Coupling $50.99 1 usually ships 1-5 days
33 374-3218 Dashboard assembly $367.79 1 usually ships 1-5 days
41 374-3219 Seat assembly $439.58 1 usually ships 1-5 days
42a 374-3220 Console assembly $127.60 1 usually ships 1-5 days
42b 374-3221 Console assembly $117.03 1 (cfs) (model 988732Z) usually ships 1-5 days
45 374-3222 Seat support plate $72.77 1 usually ships 1-5 days
49 174-2748 Woodruff key 3/16 x 3/4 $1.38 3 ships same day
56 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 6 ships same day
60 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 8 usually ships 1-5 days
61 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 6 ships same day
62 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 6 ships same day
63 999-0749 Screw 3/8-16 x 5 carriage head $0.99 4 ships same day
66 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 2 ships same day
67 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 4 ships same day
70 999-0006 Washer 3/16 flat zinc plated $0.99 6 ships same day
73 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
74 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 12 ships same day
75 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
76 999-0120 Washer 3/8 SAE flat $0.99 14 ships same day
81 174-5259 Washer #10 helical $0.97 6 usually ships 12-16 days
83 999-0028 Washer 5/16 split lock plain finish $0.99 10 ships same day
86 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
92 374-3223 Screw 1/4-20 x 2 1/2 button head cap $0.95 4 usually ships 1-5 days
95 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 9 ships same day
106 274-9392 STEERING WHEEL $129.52 1 usually ships 1-5 days
107 374-3224 Steering wheel cap $2.85 1 usually ships 1-5 days
