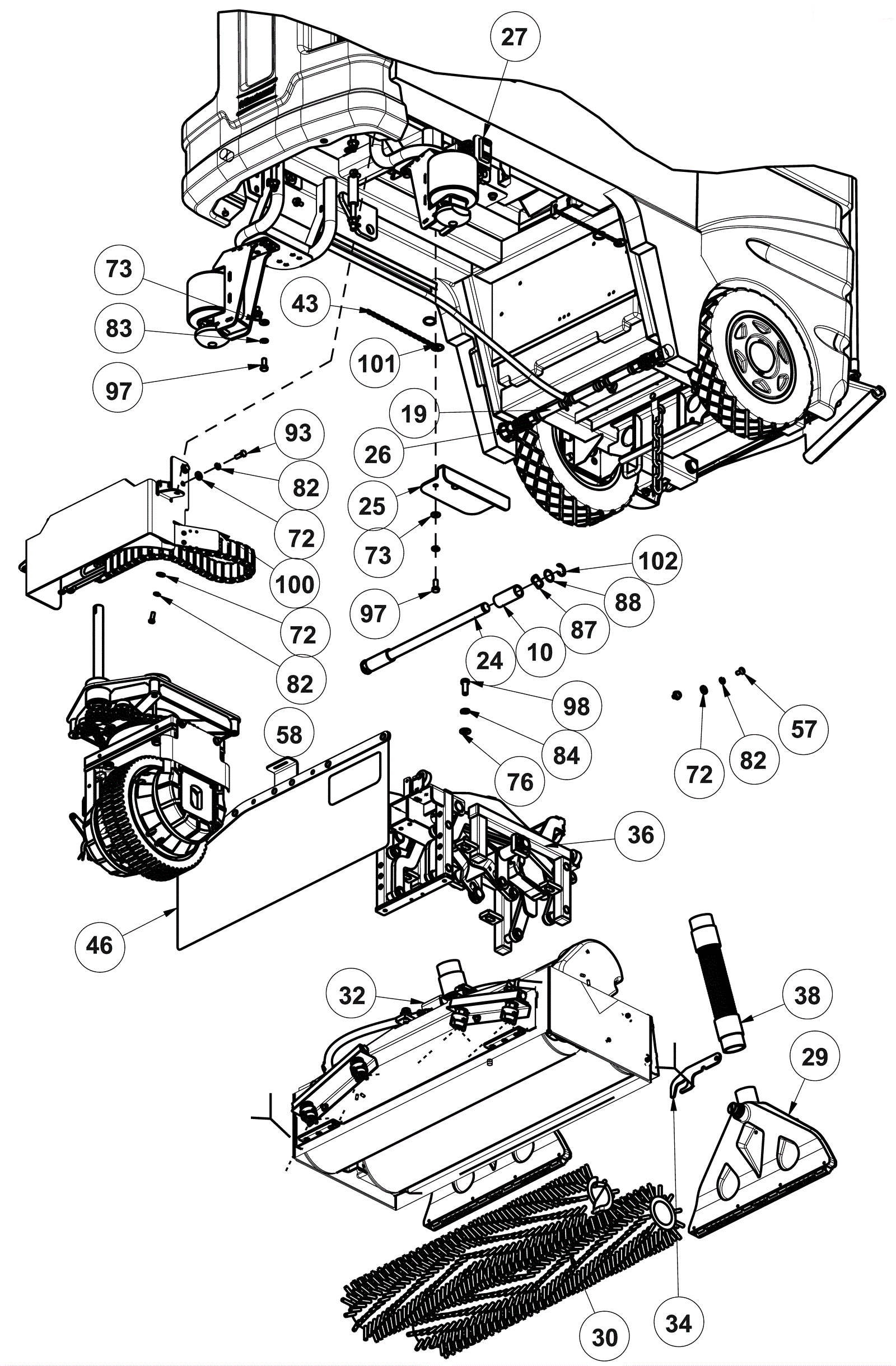

X RIDE 28 Main Assembly-2

#PartDescriptionPriceReqNotesAvailability
10 374-3206 Spacer tube $10.19 2 usually ships 1-5 days
19a 274-5688 HOSE ASSEMBLY-DRAIN SOL TANK SCV 2426/ B $84.22 1 usually ships 1-5 days
19b 374-3210 Solution tank drain hose assembly $92.36 1 (cfs) (model 988732z) usually ships 1-5 days
24 274-2947 LINKAGE ATTACHMENT SHAFT, SCV 24/26 $26.68 1 usually ships 1-5 days
25 374-3207 Chain shield $28.13 1 usually ships 1-5 days
26 174-1403 Shut off valve $5.72 2 usually ships 12-16 days
27 374-3208 Horn assembly $141.60 1 usually ships 1-5 days
29 274-8784 VAC SHOE MAIN ASSY. $347.49 2 usually ships 1-5 days
30 274-8476 BRUSH X_RIDE_28 $225.99 2 usually ships 12-16 days
32 374-3209 Cylindrical deck assembly $4,869.10 1 usually ships 1-5 days
34 274-2710 VAC SHOE LOCKING KEY $20.28 2 usually ships 1-5 days
36 374-3211 Deck lift assembly $2,083.92 1 usually ships 1-5 days
38 374-3212 Vinyl stretch hose 1 1/2 inch ID x 11.25 inch $17.63 2 usually ships 1-5 days
43 374-3213 Sash chain (15 links) $12.41 2 usually ships 1-5 days
46 274-6727 XR28 SPRAY CURTAIN ASSY $148.47 1 usually ships 1-5 days
57 N/A Not available Call for price 1 (screw) usually ships 3-26 days
58 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 6 usually ships 1-5 days
72 999-0016 Washer 1/4 flat plain finish $0.99 22 ships same day
73 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
76 999-0120 Washer 3/8 SAE flat $0.99 14 ships same day
82 999-0060 Washer 1/4 split lock plain finish $0.99 22 ships same day
83 999-0028 Washer 5/16 split lock plain finish $0.99 10 ships same day
84 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
87 174-8577 Wave washer $2.63 2 usually ships 1-5 days
88 999-9114 Washer 3/4 flat stainless steel $1.58 2 ships same day
93 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 8 ships same day
97 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
98 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
100a 374-3214 Drive motor cable assembly $582.36 1 usually ships 1-5 days
100b 374-3215 Traction drive motor cable assembly $428.00 1 (cfs) (model 988732z) usually ships 1-5 days
101 374-1756 CLAMP-RING $1.24 4 usually ships 1-5 days
102 174-5728 Retaining ring $1.33 2 usually ships 12-16 days
