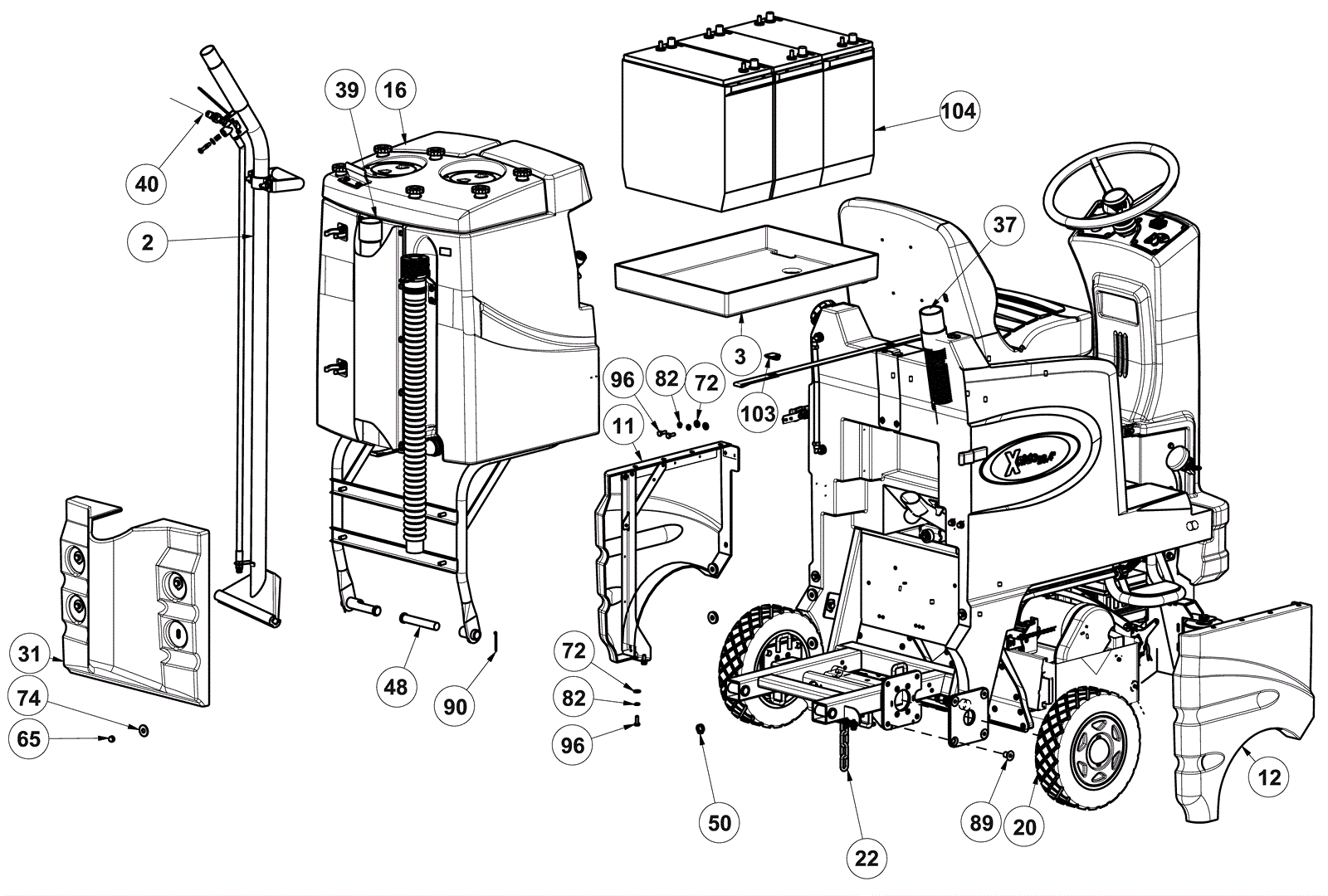

Main Assembly-1

#PartDescriptionPriceReqNotesAvailability
2 374-3200 1 bend wand assembly $275.57 1 usually ships 1-5 days
3 374-3201 Battery box $78.29 1 usually ships 1-5 days
11 174-7071 Left side battery panel $138.20 1 usually ships 1-5 days
12 174-7072 Right side battery panel $146.73 1 usually ships 1-5 days
16 374-3202 Recovery tank assembly $2,356.25 1 usually ships 1-5 days
20 374-3203 Rear wheel assembly $856.27 2 usually ships 1-5 days
22 274-2956 STATIC GROUNDING CHAIN, 9 LINK $18.52 1 usually ships 1-5 days
31 274-5849 BATTERY COVER, X RIDE 28 $93.92 1 usually ships 1-5 days
37 374-3204 Vinyl stretch hose 2in ID 18in length $40.52 1 usually ships 1-5 days
39 274-6823 HOSE, WAND STRETCH 24 FT LENGTH $87.34 1 usually ships 1-5 days
40 274-8355 SPIRAL HOSE ASSEMBLY $244.24 1 usually ships 1-5 days
48 174-8879 Clevis pin $4.91 2 usually ships 1-5 days
50 174-0491 Terminal block mounting bracket $12.41 1 usually ships 1-5 days
65 999-0958 Nut 5/16-18 acorn stainless steel $10.11 4 ships same day
72 999-0016 Washer 1/4 flat plain finish $0.99 22 ships same day
74 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 12 ships same day
82 999-0060 Washer 1/4 split lock plain finish $0.99 22 ships same day
89 374-3205 Screw 1/2-13 x 3/4 flat head socket cap $2.61 8 usually ships 1-5 days
90 174-5907 Cotter hair pin $1.20 2 usually ships 1-5 days
96 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 8 ships same day
103 174-2234 Cord clip $3.48 1 usually ships 1-5 days
104 162-0123 12V 215Ah AGM battery - DISCOVER ONLY $1,026.38 3 ships same day
