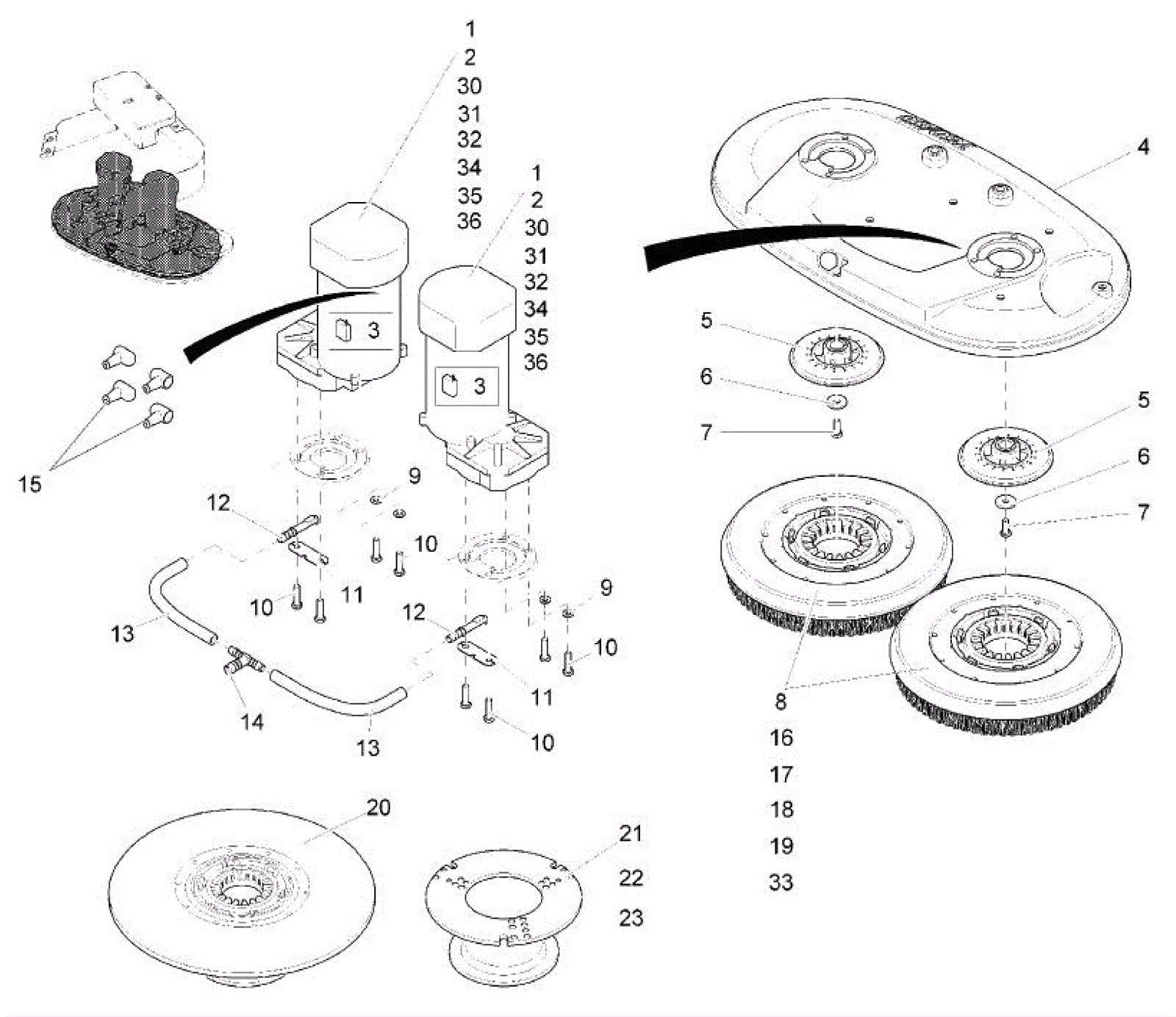

E3330 Disk Brush Deck Assembly-1

#PartDescriptionPriceReqNotesAvailability
1a 174-8891 Brush motor $1,034.60 2 (E3030) usually ships 9-13 days
1b 174-4189 Motor $963.71 2 (E3330) usually ships 9-13 days
2 174-8892 Fitting key $3.42 2 usually ships 9-13 days
3 174-8893 Carbon brush (set of 4) $115.56 1 usually ships 1-5 days
4a 174-9684 Housing $312.08 1 (E3030) usually ships 9-13 days
4b 174-4190 Housing $423.50 1 (E3330) usually ships 9-13 days
5 274-6006 CARRIER $78.11 2 ships same day
6 174-8895 Washer $2.29 2 usually ships 9-13 days
7 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 2 ships same day
8a 274-8573 Brush, Disk 15 inch Synth PPN 0.5 A/S, B70 $106.25 2 (E3030) usually ships 1-5 days
8b 274-8749 BRUSH 85CM PPN 0.5 $302.19 2 (E3330) usually ships 1-5 days
9 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
10 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.24 8 ships same day
11 174-8896 Sheet metal $1.86 2 usually ships 1-5 days
12 174-8897 Spray tube $3.00 2 usually ships 1-5 days
13 174-8898 Hose $6.57 1 (22in for E3030) (26in for E3330) usually ships 1-5 days
14 174-8899 T-reducer $4.41 1 usually ships 1-5 days
15 174-8900 Protection cap $1.05 4 usually ships 1-5 days
16a N/A Not available Call for price 2 (E3030) (after 07/2022) (brush light/medium (black) usually ships 3-26 days
16b 274-8575 BRUSH-LIGHT MEDIUM (SP) 7518 $344.41 2 (E3030) (before 07/2022) usually ships 1-5 days
16c 274-8750 BRUSH 85CM SYNTHETIC K 901 $215.13 2 (E3330) usually ships 1-5 days
17a N/A Not available Call for price 2 (E3030) (after 07/2022) (Brush medium heavy (white)) usually ships 3-26 days
17b 274-8574 Medium heavy duty polypropylene brush $375.22 2 (E3030) (before 07/2022) usually ships 1-5 days
17c 274-8751 BRUSH 85CM PPN 0.8 $91.82 2 (E3330) usually ships 1-5 days
18a 274-8893 BRUSH-MEDIUM HEAVY (SP) $221.08 2 (E3030) usually ships 9-13 days
18b 274-9043 BRUSH 85CM SIC PA 6 GRAY 600 GRIT $301.28 2 (E3330) usually ships 1-5 days
19 274-9044 BRUSH 85CM HVY DUTY SIC PA6 GRAY 180 GR $156.28 2 (E3030) usually ships 1-5 days
20a 174-9607 15 inch pad driver $206.51 1 (E3030) usually ships 9-13 days
20b 274-8415 PAD DRIVER 85CM WITH CENTER LOCK $265.28 1 (E3330) usually ships 1-5 days
21 174-8901 Center lock $38.25 1 usually ships 9-13 days
22 174-8902 Self tapping screw $1.38 3 usually ships 9-13 days
23 174-8903 Center lock retainer $41.86 1 (E3030) usually ships 9-13 days
30 174-8904 Spring $4.56 1 usually ships 1-5 days
31 174-8905 Gear $348.50 1 usually ships 1-5 days
32 174-8906 Circlip $33.44 1 usually ships 1-5 days
33 274-9045 BRUSH 85CM EXT HVY DUTY SIC PA 6.12 GREE $151.10 2 (E3030) usually ships 1-5 days
34 374-3194 Covering set (2pc) $88.94 1 usually ships 1-5 days
35 N/A Not available Call for price 1 (covering) usually ships 3-26 days
36 N/A Not available Call for price 1 (bolt) usually ships 3-26 days
