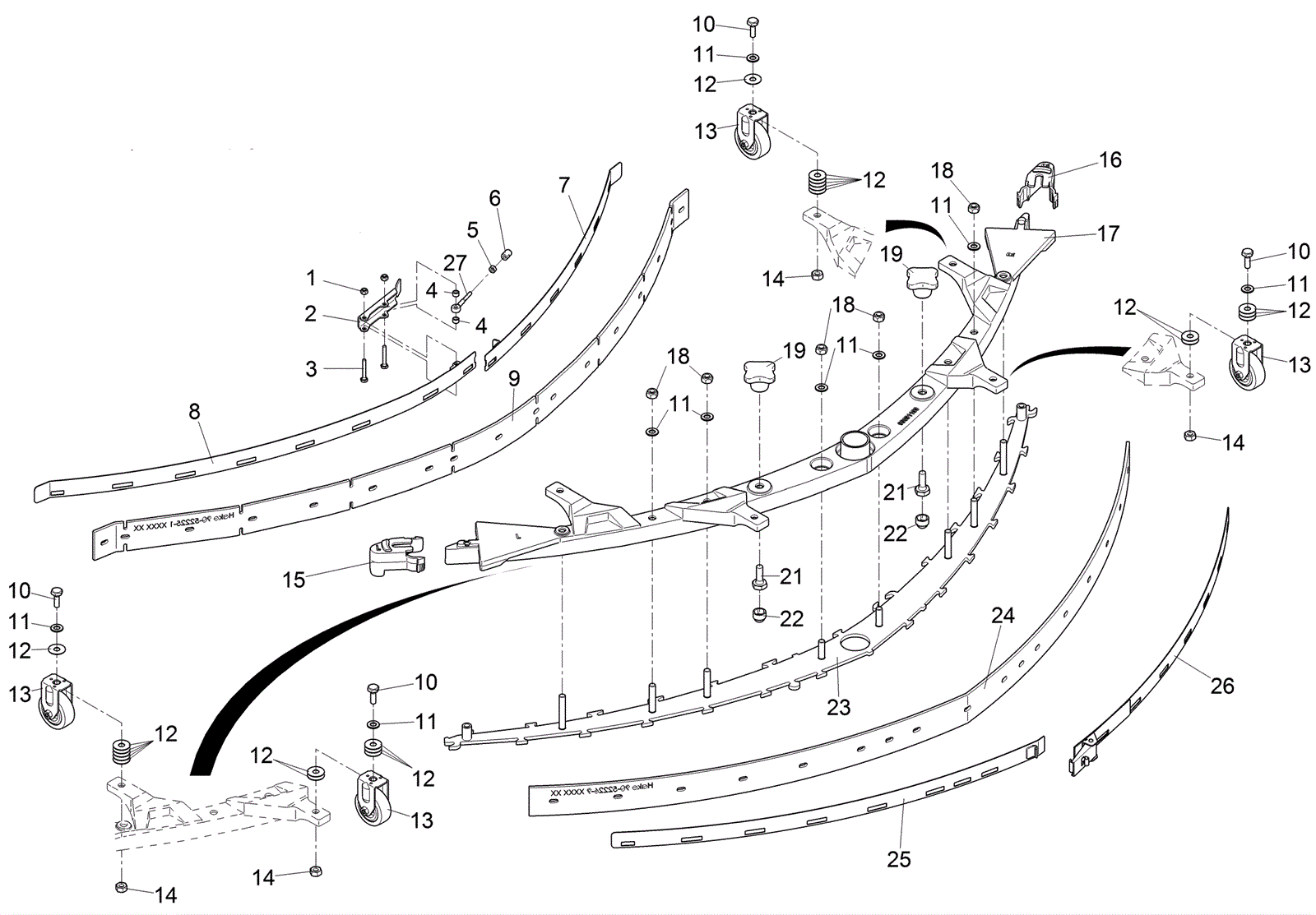

E3330 Squeegee Subassembly

#PartDescriptionPriceReqNotesAvailability
1 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 2 ships same day
2 174-8327 Lever $12.83 1 usually ships 4-14 days
3a 174-8947 Screw M5-.8 x 30 hex head stainless steel $1.13 2 (before 07/2022) usually ships 1-5 days
3b 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 2 (after 07/2022) ships same day
4a 174-8938 Bushing $2.82 2 (before 07/2022) usually ships 1-5 days
4b 174-8277 Spacer $2.37 2 (after 07/2022) usually ships 4-14 days
5 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
6 174-8341 Pressure pin $9.48 1 usually ships 4-14 days
7a 174-8475 Front tension band $36.51 1 (before 07/2022) usually ships 4-14 days
7b 374-3183 Front tension band (right) $72.21 1 (after 07/2022) usually ships 1-5 days
8a 174-8474 Front tension band $39.66 1 (before 07/2022) usually ships 4-14 days
8b 374-3184 Front tension band (left) $75.52 1 (after 07/2022) usually ships 1-5 days
9 174-7082 Squeegee blade urethane front $41.56 1 usually ships 4-14 days
10b 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 4 (after 07/2022) ships same day
11 999-9097 Washer M8 flat stainless steel $0.99 10 ships same day
12 374-1931 Washer flat 8.3 x 22 x 1.00mm stainless steel $1.23 22 usually ships 4-14 days
13 174-8933 Fixed caster $9.94 4 ships same day
14b 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 (after 07/2022) usually ships 11-24 days
15 374-3178 Left hand protection cap $4.67 1 usually ships 1-5 days
16 374-2295 END COVER, RIGHT, SQUEEGEE $3.06 1 usually ships 1-5 days
17 374-3179 Squeegee body $59.88 1 usually ships 1-5 days
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 5 ships same day
19 374-3180 Star handle with washer (yellow) $2.86 2 usually ships 1-5 days
21 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 2 ships same day
22 174-8291 Nut cover safety cap M8 $1.40 2 usually ships 1-5 days
23a 374-3181 Base plate $298.84 1 (before 07/2022) usually ships 1-5 days
23b 374-3182 Base plate $335.12 1 (after 07/2022) usually ships 1-5 days
24 174-7083 Rear polyurethane blade $41.56 1 usually ships 4-14 days
25a 274-4151 REAR TENSION BAND $44.33 1 (before 07/2022) usually ships 4-14 days
25b 374-3185 Rear tension band (left) $75.52 1 (after 07/2022) usually ships 1-5 days
26 274-5840 REAR TENSION BAND $80.05 1 usually ships 4-14 days
27 174-8338 Bolt M5 x 40mm eye stainless steel $17.42 1 usually ships 4-14 days
28 274-7209 SQUEEGEE, REAR linatex $26.43 1 (before 07/2022) usually ships 4-14 days
29 274-7105 SQUEEGEE, FRONT linatex $26.43 1 (before 07/2022) usually ships 4-14 days
N/S 174-7105 Latch assembly $153.80 1 (includes 1-6, 27) (before 07/2022) usually ships 4-14 days
