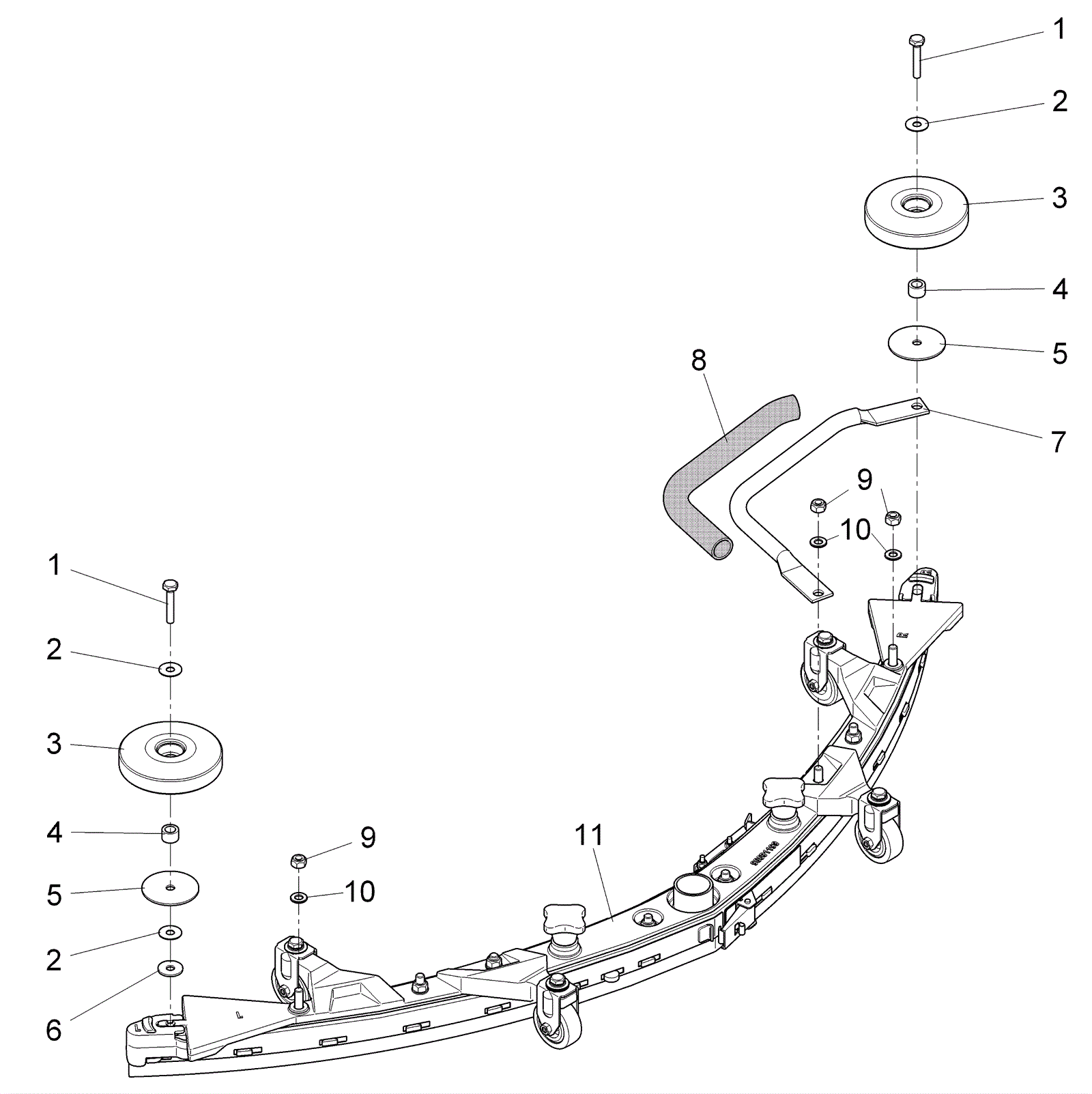

E3330 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
2 374-1931 Washer flat 8.3 x 22 x 1.00mm stainless steel $1.23 3 usually ships 4-14 days
3 174-8932 4 inch plastic roller $3.86 2 usually ships 4-14 days
4 174-9628 Bushing $7.23 2 usually ships 4-14 days
5a 374-3174 Spring washer $3.00 2 (before 07/2022) usually ships 1-5 days
5b 374-3176 Washer 8.5 x 55 x 2 flat stainless steel $9.35 2 (after 07/2022) usually ships 1-5 days
6a 999-1267 Washer M8 flat zinc $0.99 1 (before 07/2022) ships same day
6b 999-9097 Washer M8 flat stainless steel $0.99 1 (after 07/2022) ships same day
7 374-3175 Bracket $57.38 1 usually ships 1-5 days
8a 174-8935 Hose $8.34 12in (before 07/2022) usually ships 1-5 days
8b 174-9631 PVC hose $5.64 12in (after 07/2022) usually ships 4-14 days
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 ships same day
10 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
11a 274-9684 SQUEEGEE E30 $913.48 1 (before 07/2022) usually ships 1-5 days
11b 374-3177 Squeegee sub assembly $821.55 1 (after 07/2022) usually ships 1-5 days
