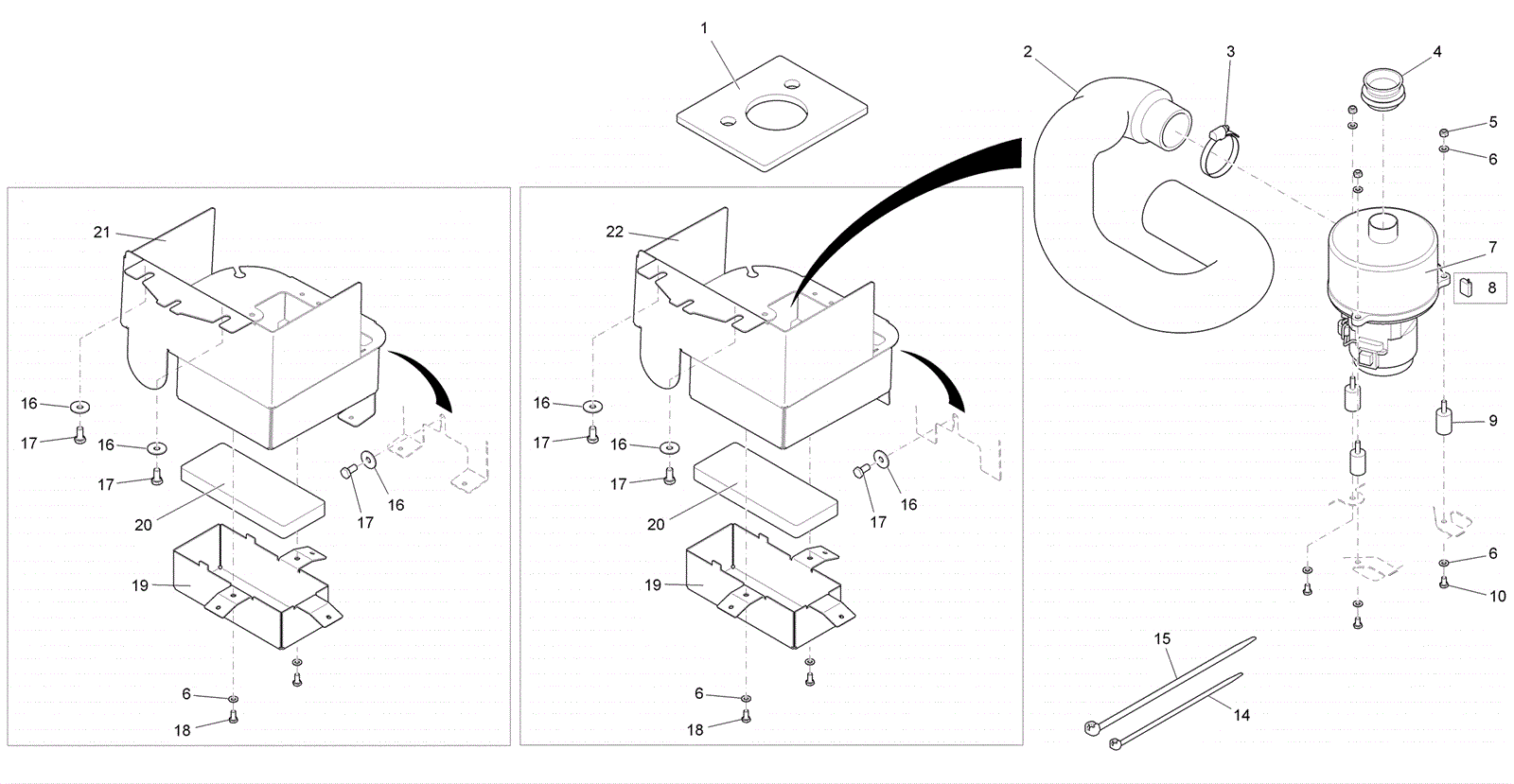

E3330 Suction Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-3533 Gasket $9.52 1 usually ships 4-14 days
2 174-8949 Exhaust hose $66.49 1 usually ships 4-14 days
3b 174-1624 2 1/2 Hose clamp $1.02 1 (after 07/2022) usually ships 1-5 days
4 174-8950 Connection $7.10 1 usually ships 4-14 days
5 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 3 ships same day
6 999-1261 Washer M6 flat stainless steel $0.99 8 ships same day
7 174-8495 24V vacuum motor $292.94 1 usually ships 4-14 days
9 174-8951 Isolator mount $5.19 3 usually ships 4-14 days
10a 374-3172 Screw hex head $0.95 3 (before 07/2022) usually ships 1-5 days
10b 999-0778 Screw M6-1 x 10mm hex head $0.99 3 (after 07/2022) ships same day
14 997-2102 Cable tie $1.24 1 ships same day
15a 174-6185 Cable tie large $1.24 4 (before 07/2022) usually ships 1-5 days
15b 174-6185 Cable tie large $1.24 4 (after 07/2022) usually ships 1-5 days
16 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
17 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 3 ships same day
18 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 2 ships same day
19 174-3536 Cover $27.63 1 usually ships 1-5 days
20 174-3537 Gasket $1.73 1 usually ships 4-14 days
21 174-3538 Vacuum motor housing $77.34 1 (before 11/2012) (after 07/2022) usually ships 4-14 days
