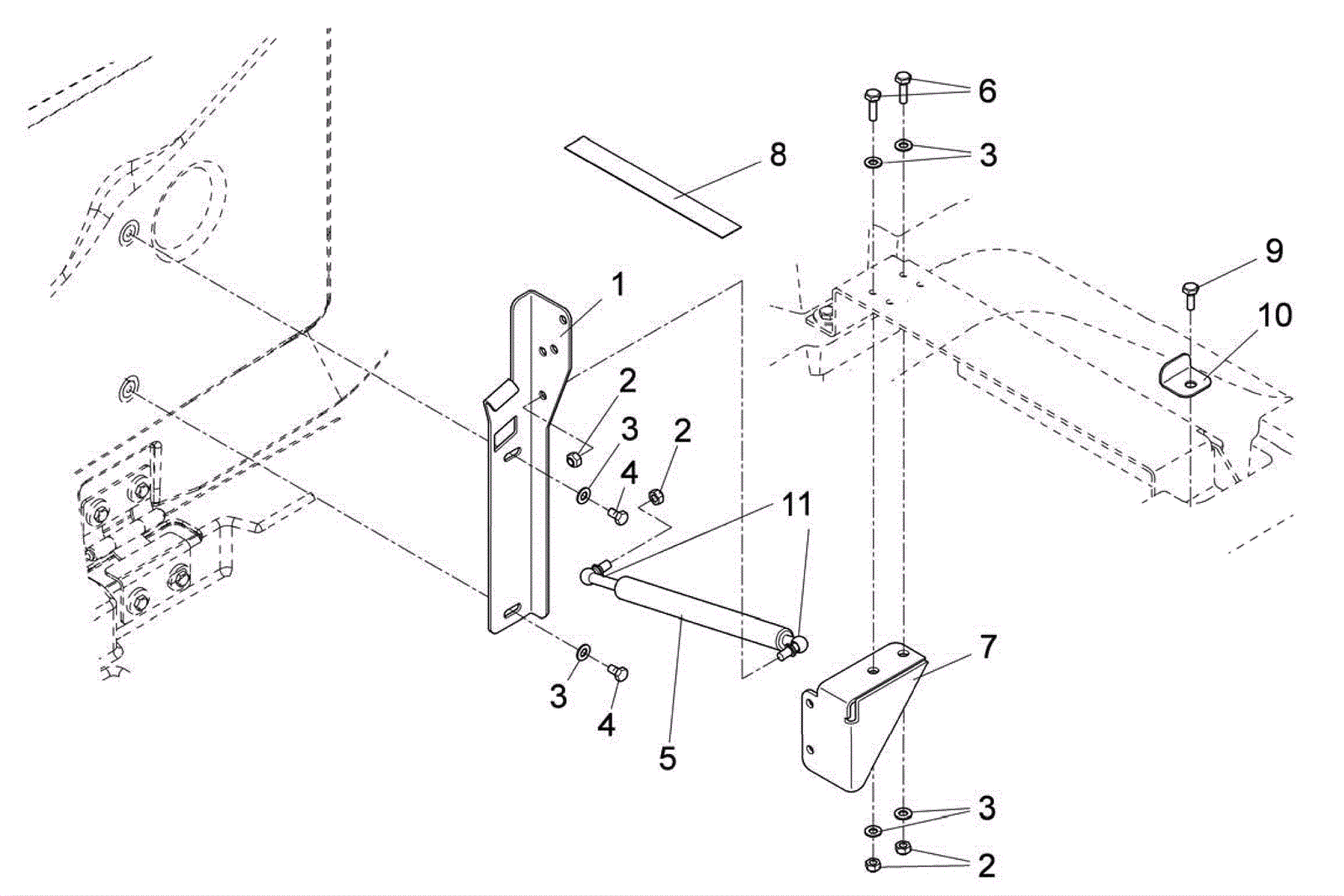

E3330 Lifting Device Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-4167 Angle $78.23 1 usually ships 4-14 days
2 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 ships same day
3 999-9097 Washer M8 flat stainless steel $0.99 7 ships same day
4 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
5a 374-3170 Spring $129.55 1 (after 07/2022) usually ships 1-5 days
5b 174-4168 Gas pressure spring $275.00 1 (before 07/2022) usually ships 4-14 days
6 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
7a 174-4169 Retainer $59.18 1 (after 07/2022) usually ships 4-14 days
7b N/A Not available Call for price 1 (before 07/2022) (retainer) usually ships 3-26 days
8a 274-4456 BELT $12.10 1 usually ships 1-5 days
9 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 1 ships same day
10 174-4171 Angle $67.84 1 usually ships 4-14 days
11 374-3171 Ball stud $3.22 2 (after 07/2022) usually ships 1-5 days
