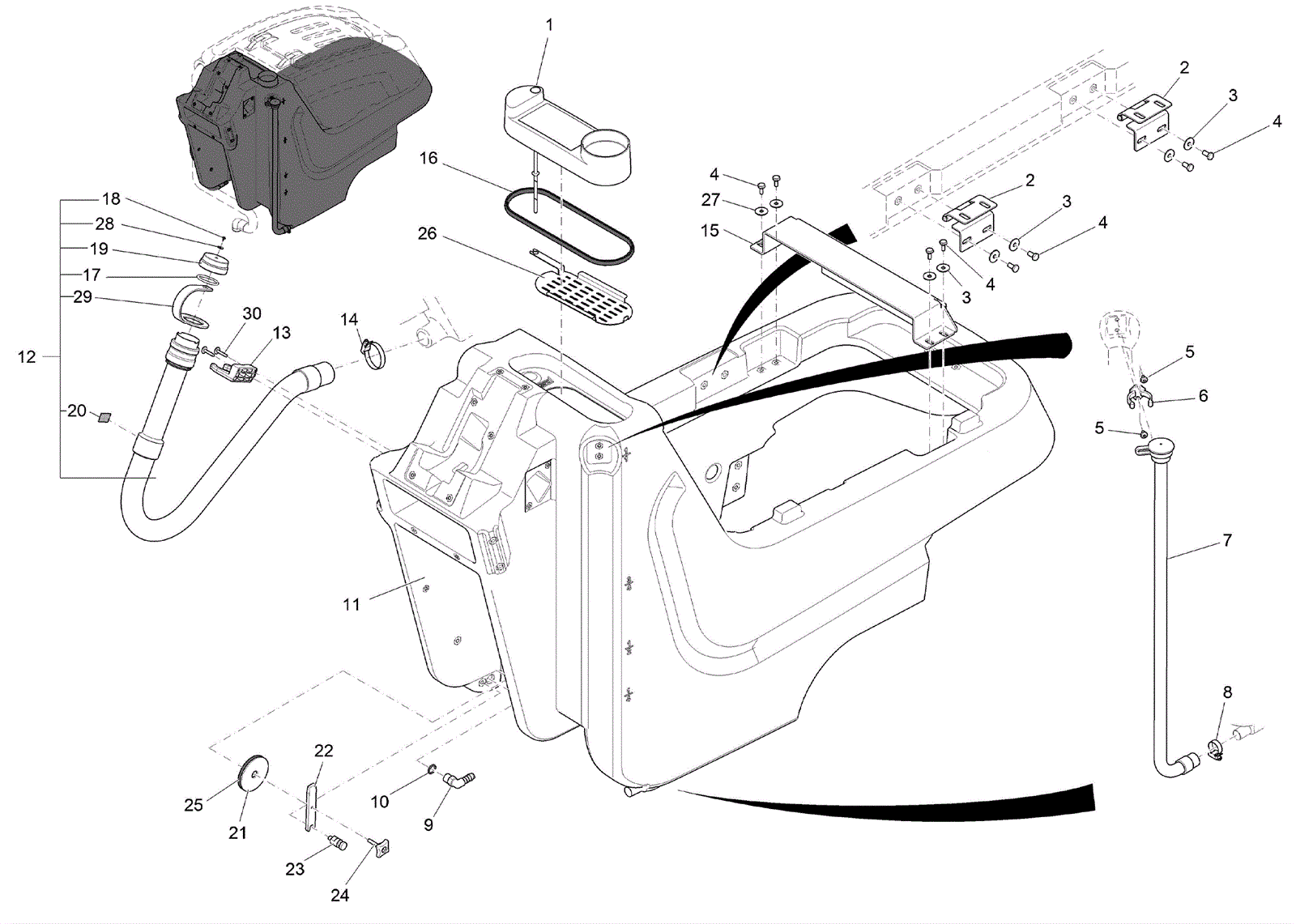

E3330 Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 174-8952 Solution tank lid 1 usually ships 1-5 days
2 174-8953 Tank hinge 2 usually ships 1-5 days
3 174-9630 Washer M9 conical spring with tooth 4 usually ships 1-5 days
4 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 8 usually ships 11-14 days
5 999-1514 Screw M6-1 x 10mm button head socket stainless steel 2 usually ships 11-14 days
6a 174-8926 Hose support 1 (after 11/2014) usually ships 8-11 days
6b N/A Not available 1 (before 11/2014) (hose support) usually ships 3-26 days
7 274-6137 SOLUTION HOSE 1 usually ships 8-11 days
8 174-3516 Hose clamp 1 usually ships 8-11 days
9 174-8955 Hose barb elbow fitting 1 usually ships 8-11 days
10 174-8956 O-ring 1 usually ships 1-5 days
11 374-3153 Solution tank 1 usually ships 8-11 days
12a 374-3154 Hose 1 (between 11/2014 and 07/2022) (includes 17a, 18a, 19a, 20, 28a, 29a) usually ships 8-11 days
12b 174-8455 Drain hose assembly 1 (before 11/2014) (includes 17b, 18b, 19b, 20) usually ships 8-11 days
12c 374-3166 Recovery hose 1 (after 07/2022) (includes 17c, 18c, 19c, 20, 28b, 29b) usually ships 8-11 days
13a 374-3155 Hose support 1 (between 11/2014 and 07/2022) usually ships 1-5 days
13b 174-8957 Hook 1 (before 11/2014) usually ships 8-11 days
13c 374-2279 HOSE SUPPORT 2 (after 07/2022 (1pc)) (before 11/2014 (1pc)) usually ships 1-5 days
14 997-2000 Hose clamp 1 usually ships 7-8 days
15 174-4163 Cross beam 1 usually ships 8-11 days
16 174-8958 Edge protection 28in usually ships 1-5 days
17a 374-3156 O-ring 1 (after 11/2014) usually ships 1-5 days
17b 174-8959 O-ring 1 (before 11/2014) usually ships 8-11 days
18a 374-3157 Tapping screw 1 (after 11/2014) usually ships 1-5 days
18b 999-9101 Screw M4-.7 x 10mm pan head stainless steel 2 (before 11/2014) usually ships 11-14 days
19a 374-3158 Cover 1 (after 11/2014) usually ships 1-5 days
19b 174-8960 Drain hose cap 1 (before 11/2014) usually ships 8-11 days
20 174-8961 Decal 1 usually ships 1-5 days
21 374-3159 Cover 1 usually ships 1-5 days
22 374-3160 Bracket 1 usually ships 1-5 days
23 374-3161 Screw 1 usually ships 1-5 days
24a 374-3162 Star handle screw 1 (before 07/2022) usually ships 1-5 days
24b 374-3165 Star handle knob 1 (after 07/2022) usually ships 1-5 days
25 374-3163 Gasket 1 usually ships 1-5 days
26 N/A Not available 1 (before 07/2022) (strainer) usually ships 3-26 days
27 999-9097 Washer M8 flat stainless steel 2 usually ships 11-14 days
28 374-1002 WASHER 1 usually ships 1-5 days
29a 374-3164 Holding band 1 (between 11/2014 and 07/2022) usually ships 1-5 days
29b N/A Not available 1 (after 07/2022) (holding band) usually ships 3-26 days
30 174-8494 Screw M6-1 x 25mm with flange 2 usually ships 11-14 days
