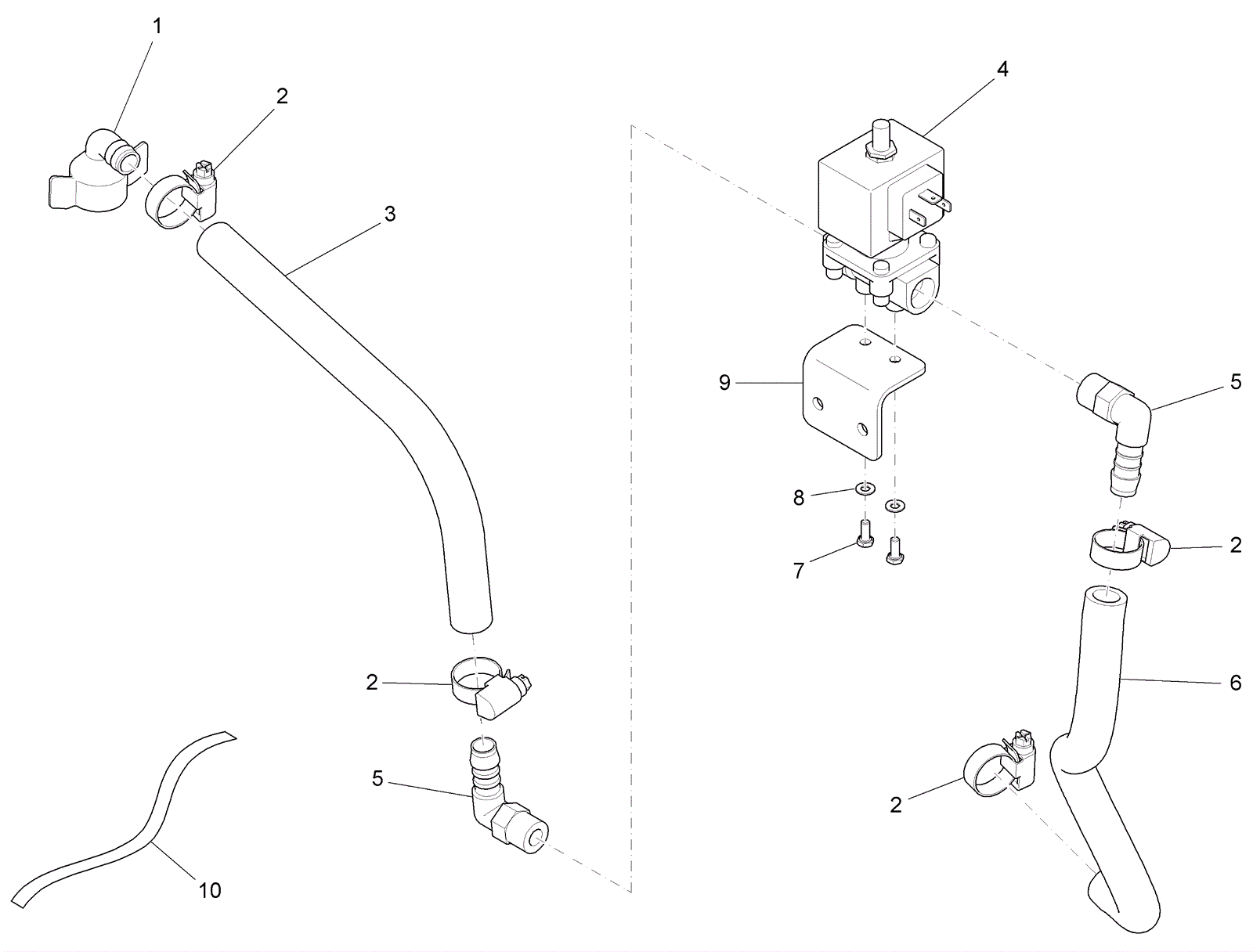

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
374-2864
|
SCREWED ANGLE FITTING |
1 |
|
|
2 |
174-1628
|
Hose clamp |
4 |
|
|
3 |
174-9631
|
PVC hose (Sold by the Meter) |
1 |
|
|
4 |
174-9633
|
24V solenoid valve |
1 |
|
|
5 |
174-8955
|
Hose barb elbow fitting |
2 |
|
|
6 |
174-9631
|
PVC hose (Sold by the Meter) |
1 |
|
|
7 |
999-9104
|
Screw M4-.7 x 10mm hex head stainless steel |
2 |
|
|
8 |
999-9089
|
Washer M4 flat stainless steel |
2 |
|
|
9 |
374-2273
|
RETAINER |
1 |
|
|
10a |
174-4135
|
Sealing band |
1 |
(before 07/2022) |
|
10b |
174-6579
|
1/2 inch teflon pipe tape |
1 |
(after 07/2022) |
|
