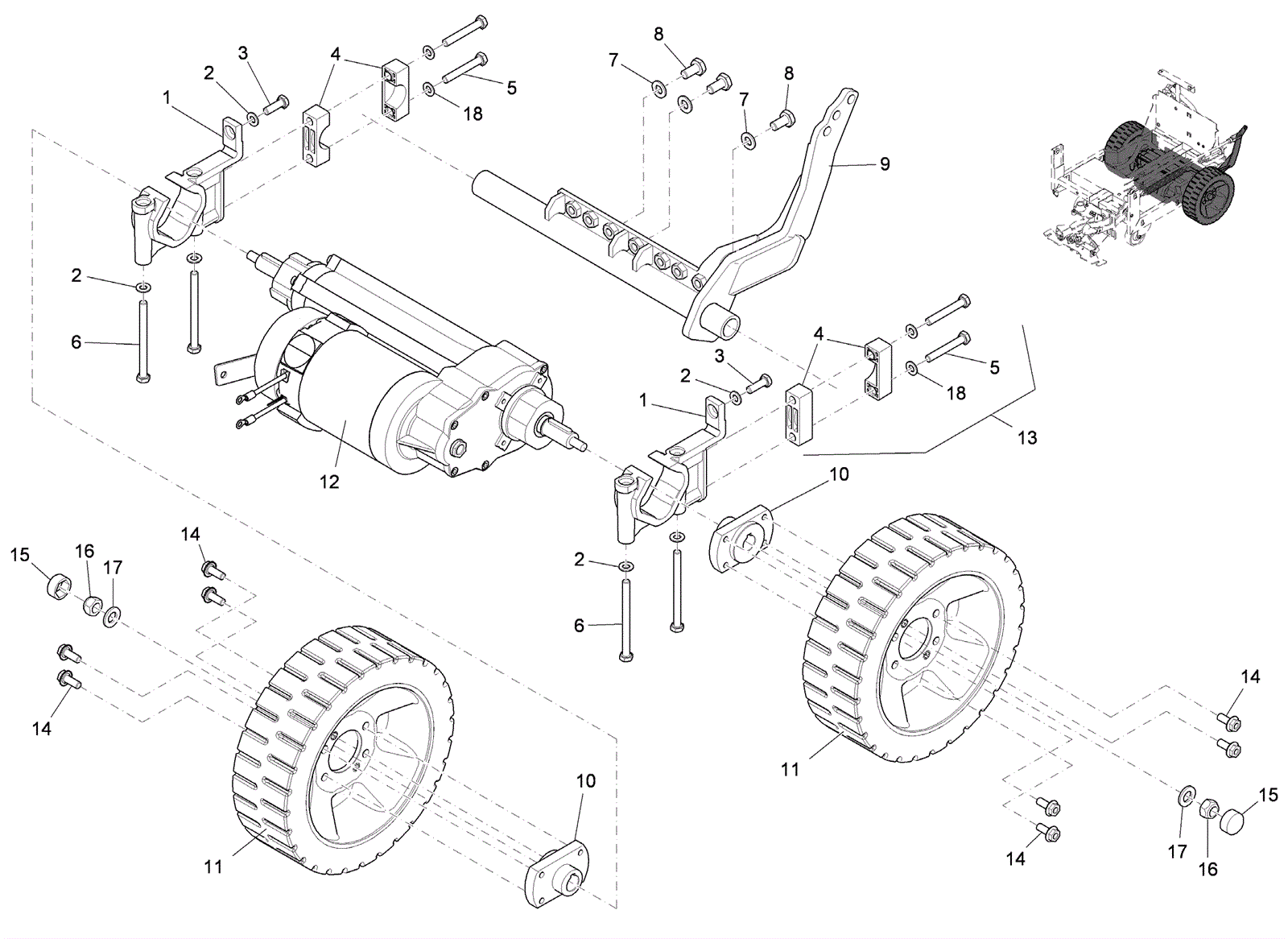

E3330 Chassis Assembly-Part 2

#PartDescriptionPriceReqNotesAvailability
1 174-8993 Transaxle mounting bracket $29.60 2 usually ships 1-5 days
2 999-9097 Washer M8 flat stainless steel $0.99 10 ships same day
3 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
4 274-0028 BEARING BLOCK, NYLON $3.98 4 (from approximately 03/2008) (if you want to exchange older blocks, order 13) usually ships 1-5 days
5 999-1692 Screw M8-1.25 x 50mm hex stainless steel $3.28 4 ships same day
6 999-9159 Bolt M8-1.0 x 100mm hex cap $2.68 4 ships same day
7 174-8888 Washer $4.62 3 usually ships 4-14 days
8 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 3 ships same day
9 274-7604 LEVER WELDMENT $53.24 1 usually ships 1-5 days
10 174-3546 Transaxle hub $73.77 2 usually ships 1-5 days
11 274-8058 WHEEL, 250x79, SOLID URETHANE YELLOW $195.63 2 usually ships 4-14 days
12 174-4117 Traction drive $1,234.20 1 usually ships 4-14 days
13 174-3549 Block assembly $86.34 1 (includes 4-5,18) (please order kit because it is necessary to exchange all 4 blocks) usually ships 4-14 days
14 174-7184 Bolt M8-1.25 x 20mm hex head flange precote zinc plated $1.80 8 (tightening torque 38Nm) ships same day
15 174-8990 Protection cap $3.80 2 usually ships 1-5 days
16 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel $3.47 2 usually ships 11-24 days
17 374-0693 Washer M13 $3.74 2 usually ships 1-5 days
18 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
