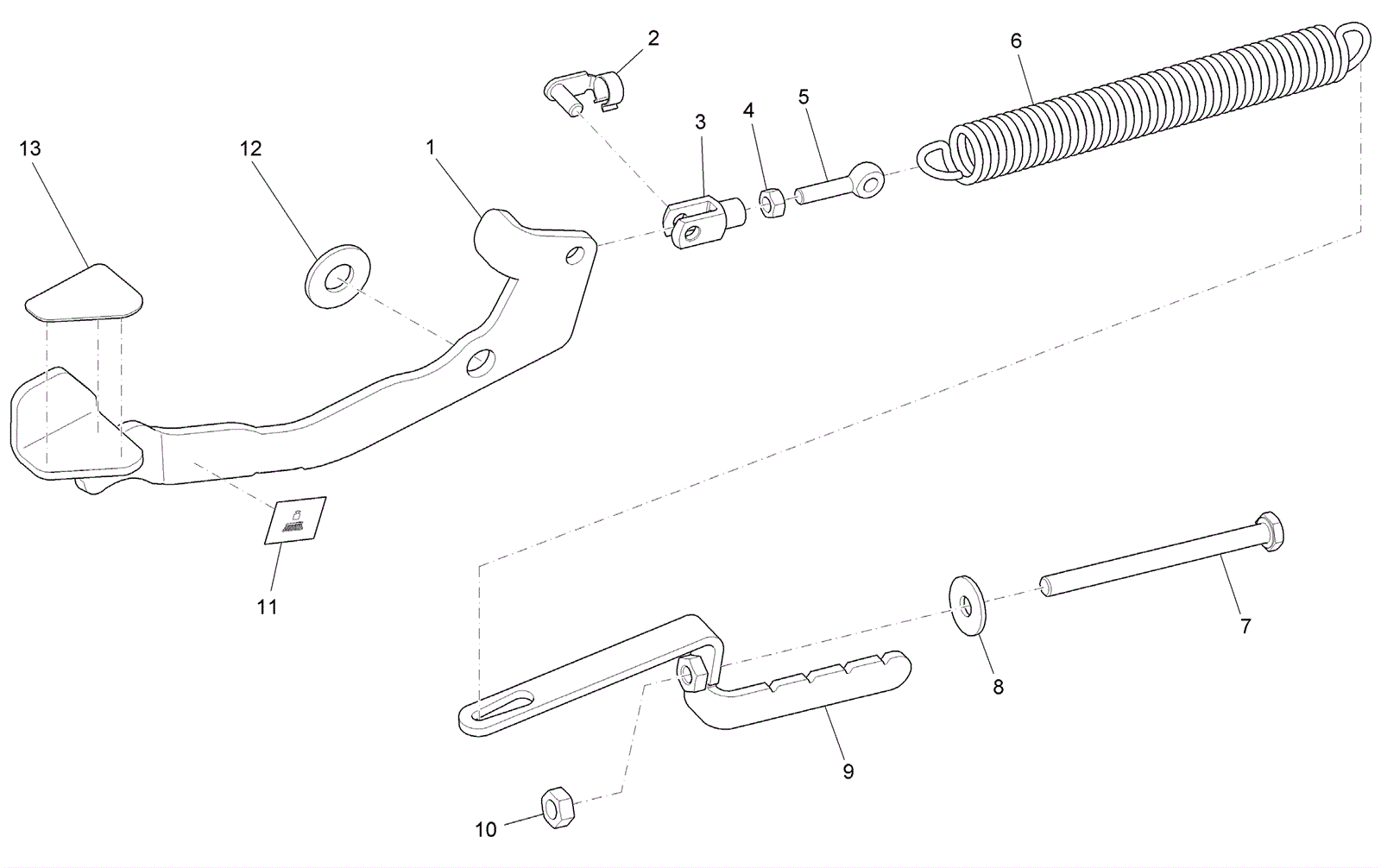

E3330 Brush Adjustment Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1a 274-4906 PEDAL $56.37 1 (between 09/2012 and 07/2022) usually ships 12-16 days
1b 374-3148 Pedal $105.66 1 (after 07/2022) usually ships 1-5 days
2 174-9665 S-bolt $4.66 1 usually ships 12-16 days
3 174-9655 Clevis yoke $4.73 1 usually ships 12-16 days
4 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
5 174-9664 Eye bolt $27.72 1 usually ships 12-16 days
6 174-9662 Tension spring $31.50 1 usually ships 12-16 days
7 999-0022 Bolt M10-1.5 x 30mm hex head full thread $0.99 1 ships same day
8 174-3486 Washer $1.38 1 usually ships 12-16 days
9 174-9656 Pressure adjustment bracket $19.25 1 usually ships 12-16 days
10 999-1428 Nut M10-1.5 hex zinc finish $0.99 1 ships same day
11a 174-6567 Brush pressure decal $1.42 1 (between 09/2012 and 07/2022) usually ships 12-16 days
11b 374-3149 Brush pressure decal $5.63 1 (after 07/2022) usually ships 1-5 days
12 174-9619 Rubber washer $6.82 1 usually ships 12-16 days
13 174-9654 Anti-slip pedal decal $3.06 1 usually ships 12-16 days
