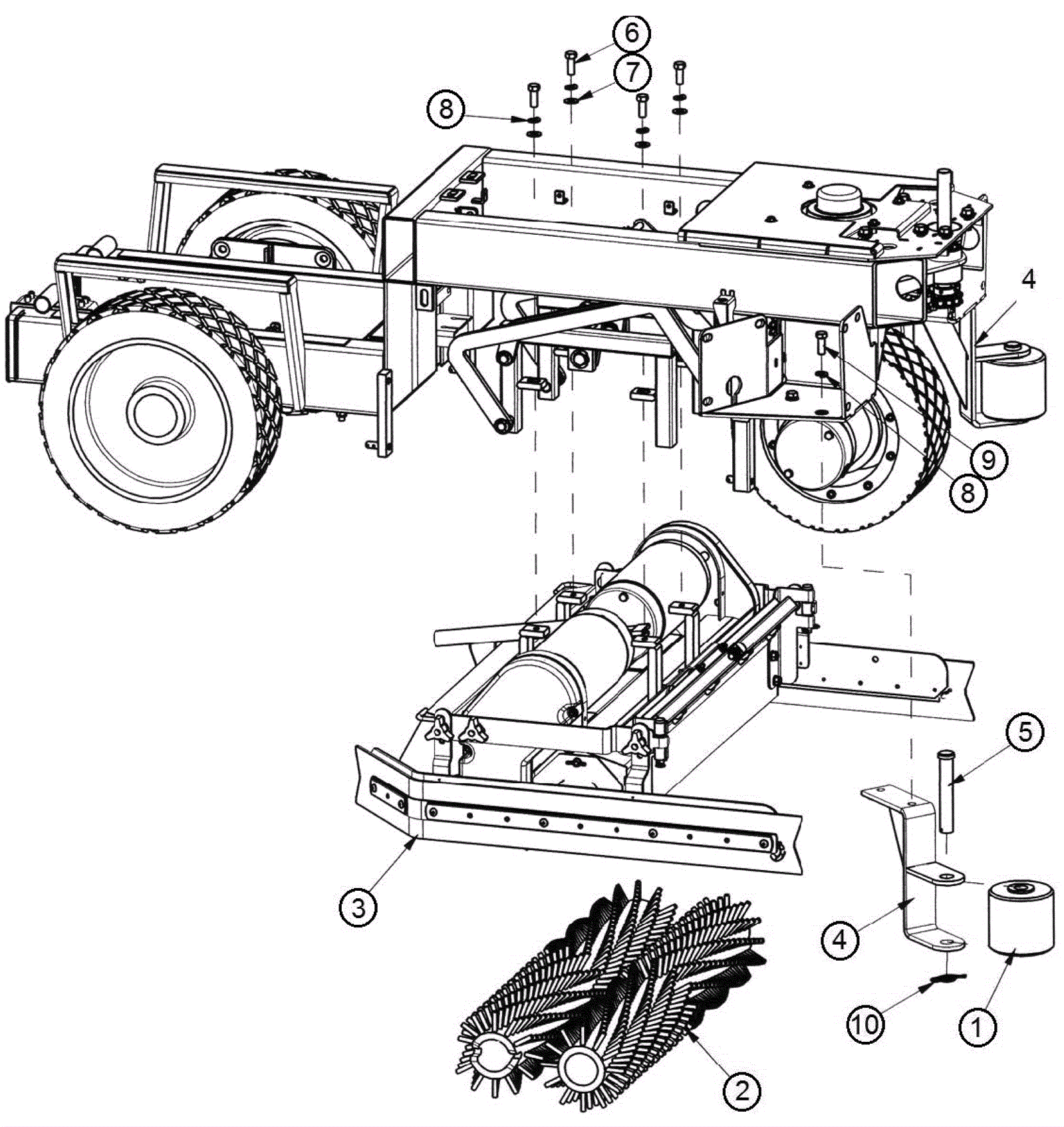

ERIDE 28PLUS Cylindrical Scrub Deck and Roller Bumper Mounting Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-2578 Corner roller $21.25 2 usually ships 1-5 days
2a 996-1280 Lite grit scrubbing brush - 500 grit - CYLINDRICAL $348.46 2 (28in) usually ships 10-13 days
2b 996-1279 Polypropelene scrubbing brush - CYLINDRICAL $224.23 2 (28in) usually ships 9-11 days
2c 996-1277 Nylon brush - CYLINDRICAL $216.31 2 (28in) usually ships 9-11 days
2d 996-1281 Extra heavy grit stripping brush - 46 grit - CYLINDRICAL $365.23 2 (28in) usually ships 9-11 days
2e 996-1287 Lite grit scrubbing brush - 500 grit - CYLINDRICAL $579.42 2 (32in) usually ships 1-5 days
2f 996-1284 Nylon brush - CYLINDRICAL $252.92 2 (32in) usually ships 9-11 days
2g 996-1286 Polypropelene scrubbing brush - CYLINDRICAL $215.25 2 (32in) usually ships 9-11 days
2h 996-1288 Extra heavy grit stripping brush - 46 grit - CYLINDRICAL $425.02 2 (32in) usually ships 1-5 days
3a 174-3764 28 inch cylindrical scrubdeck assembly without brushes $4,895.58 1 (28in) usually ships 9-11 days
3b 174-3765 32 inch cylindrical scrubdeck assembly without brushes $4,263.60 1 (32in) usually ships 9-11 days
4a 174-8878 Front roller mount weldment $79.17 2 (28in) usually ships 1-5 days
4b 274-6091 FRONT ROLLER MNT BRKT WMT, RH 32 inch $85.86 1 (32in) (right hand) usually ships 1-5 days
4c 274-6206 FRONT ROLLER MNT BRKT WMT, LH 32 inch $104.61 1 (32in) (left hand) usually ships 1-5 days
5 174-8879 Clevis pin $5.92 2 usually ships 1-5 days
6 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 10 ships same day
7 999-0120 Washer 3/8 SAE flat $0.99 13 ships same day
8 999-0034 Washer 3/8 split lock plain finish $1.82 14 ships same day
9 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
10 174-8880 Cotter pin $1.08 2 usually ships 1-5 days
