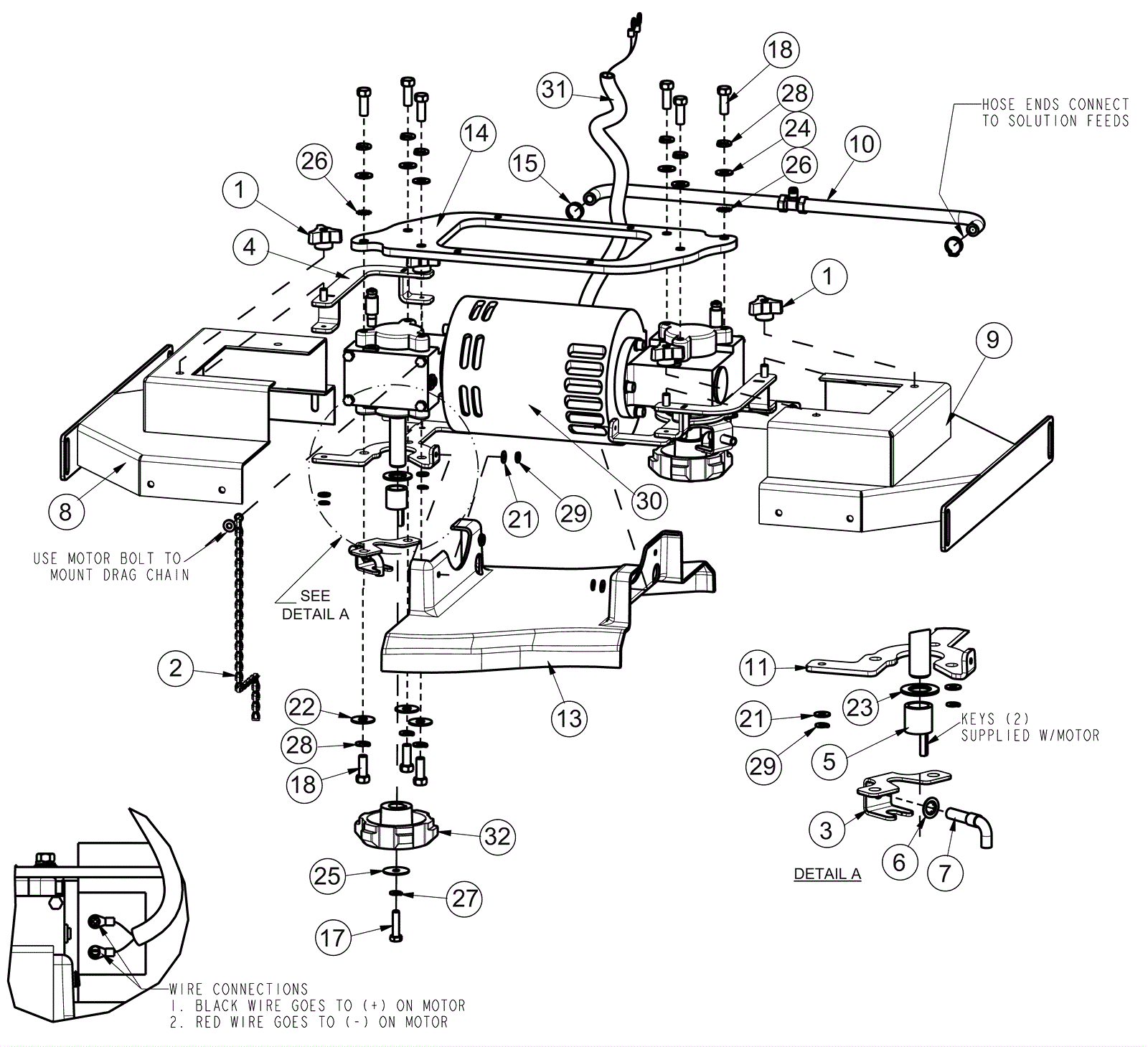

ERIDE 28PLUS Disc Scrub Deck Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-1220 3 sided knob 5/16 nyloc $5.51 4 usually ships 4-14 days
2 174-8843 Drag chain assembly $20.55 1 usually ships 1-5 days
3 174-8844 Water feed bracket $13.73 2 usually ships 1-5 days
4 174-8845 Cover mount bracket $43.49 2 usually ships 1-5 days
5 174-6356 Hub-scrub spacer tube $7.99 2 usually ships 4-14 days
6 174-6360 Speed nut 3/8 $0.97 2 usually ships 1-5 days
7 174-6361 Disk solution feed assembly $24.17 2 usually ships 1-5 days
8a 174-8848 28 inch left hand deck weldment skirt cover $158.54 1 (28in) usually ships 1-5 days
8b 274-7827 32 inch left hand deck weldment skirt cover $562.50 1 (32in) usually ships 1-5 days
9a 174-8847 28 inch right hand deck weldment skirt cover $164.46 1 (28in) usually ships 1-5 days
9b 174-8160 32 inch right hand deck weldment skirt cover $163.31 1 (32in) usually ships 1-5 days
10 174-3759 Solution feed hose sub assembly $24.43 1 usually ships 4-14 days
11 174-8846 Mounting bracket $31.91 2 usually ships 1-5 days
13a 174-8849 28 inch disk deck cover $135.17 1 (28in) usually ships 4-14 days
13b 174-6564 32 inch deck cover $106.45 1 (32in) usually ships 1-5 days
14a 174-8850 28 inch scrub deck mounting plate $117.60 1 (28in) usually ships 1-5 days
14b 274-7526 DISK SCRUBDECK MOUNTING PLATE, 32 inch $142.65 1 (32in) usually ships 1-5 days
15 997-2001 Hose clamp $2.42 2 ships same day
17 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 2 ships same day
18 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 12 ships same day
21 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 9 ships same day
22 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
23 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
24 999-0120 Washer 3/8 SAE flat $0.99 6 ships same day
25 174-2255 Washer 5/16 x 7/8 x 3/64 flat $0.97 2 usually ships 4-14 days
26 999-0318 Washer 3/8 external star lock zinc plated $0.99 2 ships same day
27 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
28 999-0034 Washer 3/8 split lock plain finish $1.82 12 ships same day
29 999-0632 Washer 1/4 split lock stainless steel $0.99 8 ships same day
30 174-6403 28 inch dual right angle drive $1,855.25 1 usually ships 4-14 days
31 174-3760 23 inch 8 gauge wire assembly $390.91 1 usually ships 4-14 days
32 174-6371 Hub-scrub brush drive $150.32 2 usually ships 4-14 days
N/S 174-3761 Cover plate $3.57 2 usually ships 4-14 days
N/S 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 4 ships same day
N/S 174-5158 Nut 10-32 flanged wizz $0.97 4 usually ships 1-5 days
N/S 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
