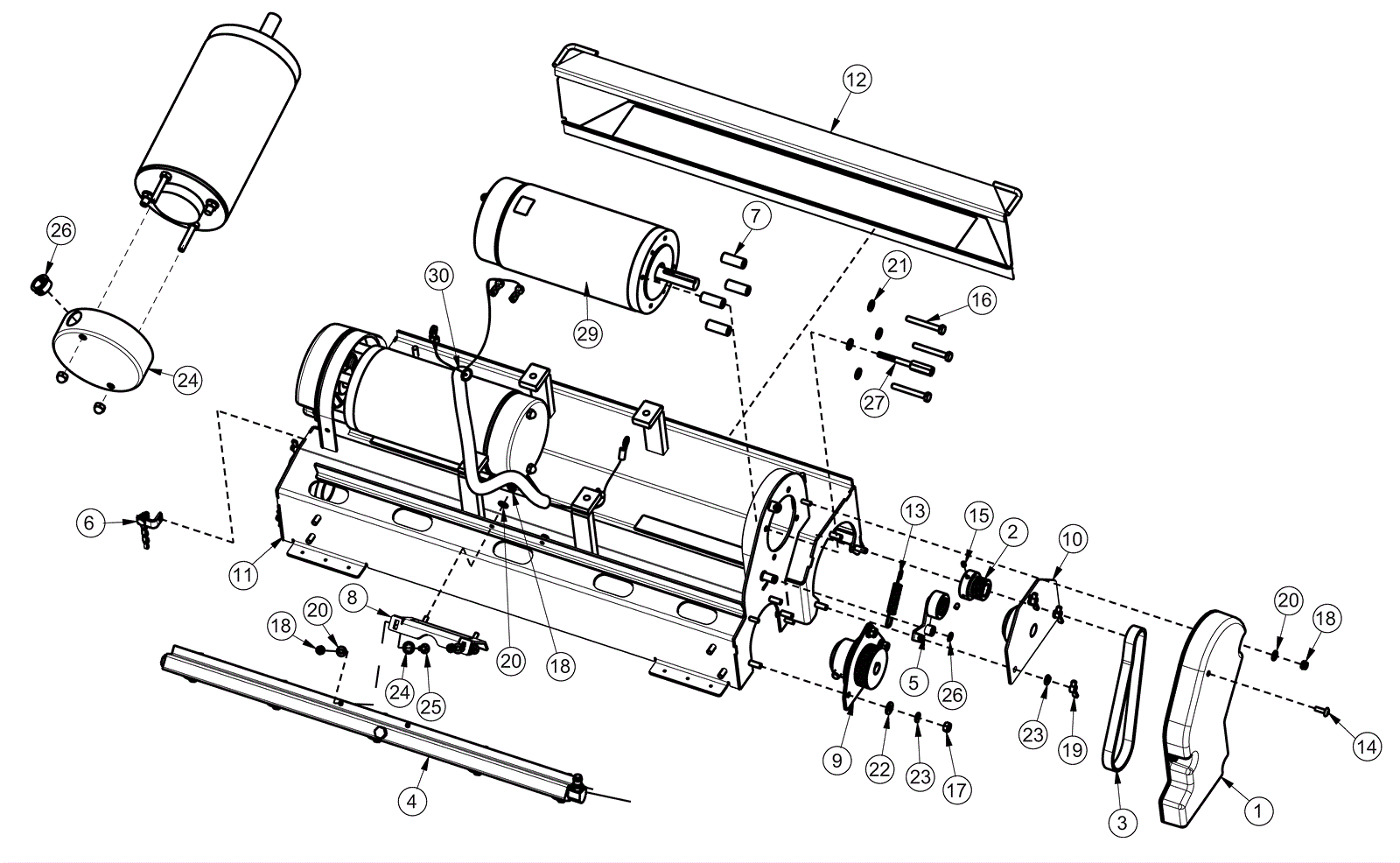

ERIDE 28PLUS Cylindrical Scrub Deck Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-6404 Cylindrical scrubdeck belt cover assembly $44.05 2 usually ships 12-16 days
2 174-6406 Offset pulley poly v $52.77 2 usually ships 1-5 days
3 174-6411 18 inch j belt $16.77 2 usually ships 12-16 days
4 274-8306 SPRAY BAR ASSY. - SCV 2832 $269.17 1 usually ships 1-5 days
5 274-6391 IDLER ASSY $147.61 2 usually ships 1-5 days
6 274-3339 DRAG CHAIN ASSY, CYL. SCRUBDECK $36.59 1 usually ships 1-5 days
7 174-6422 Cylindrical scrub deck motor stand off $7.21 8 usually ships 1-5 days
8 174-6423 Spray head mounting bracket $55.36 1 usually ships 1-5 days
9 174-6466 Cylindrical scrubdeck drive hub $260.25 2 usually ships 12-16 days
10 174-6413 Idle shaft weldment $183.39 2 ships same day
11a 174-6468 28 inch cylindrical scrubdeck weldment $488.10 1 (28in) usually ships 1-5 days
11b 274-9302 32 inch CYLINDRICAL SCRUBDECK WELDMENT $689.00 1 (32in) usually ships 1-5 days
12a 174-6471 28 inch cylindrical scrubdeck debris box weldment $245.55 1 (28in) usually ships 12-16 days
12b 174-6424 32 inch cylindrical scrubdeck debris box weldment $321.25 1 (32in) usually ships 12-16 days
13 174-0008 Return spring $3.09 2 usually ships 12-16 days
14 999-1070 Screw 10-32 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
15 174-6426 Screw10-32 x 1/4 set knurled point $1.33 4 usually ships 1-5 days
16 999-1892 Screw 1/4-20 x 2 hex cap stainless steel $1.52 6 ships same day
17 999-0609 Nut 1/4-20 hex stainless steel $0.99 6 ships same day
18 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 10 ships same day
19 174-6428 Nut 1/4-20 wing steel zinc $1.11 6 usually ships 12-16 days
20 999-0006 Washer 3/16 flat zinc plated $0.99 10 ships same day
21 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
22 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
23 999-0060 Washer 1/4 split lock plain finish $0.99 12 ships same day
24 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
25 274-9796 Bolt $0.77 2 ships same day
26 174-6431 External retaining ring 3/8 $1.08 2 usually ships 12-16 days
27 174-3755 Threaded standoff $27.83 2 usually ships 12-16 days
29 174-6434 1800rpm motor 1hp $716.25 2 usually ships 1-5 days
30 174-6435 Heyco bushing $1.41 2 usually ships 1-5 days
N/S 174-3756 Cylindrical deck wire assembly $92.66 1 usually ships 12-16 days
N/S 274-3592 TAPE-ELECTRICAL BLUE $7.13 0.001in usually ships 1-5 days
