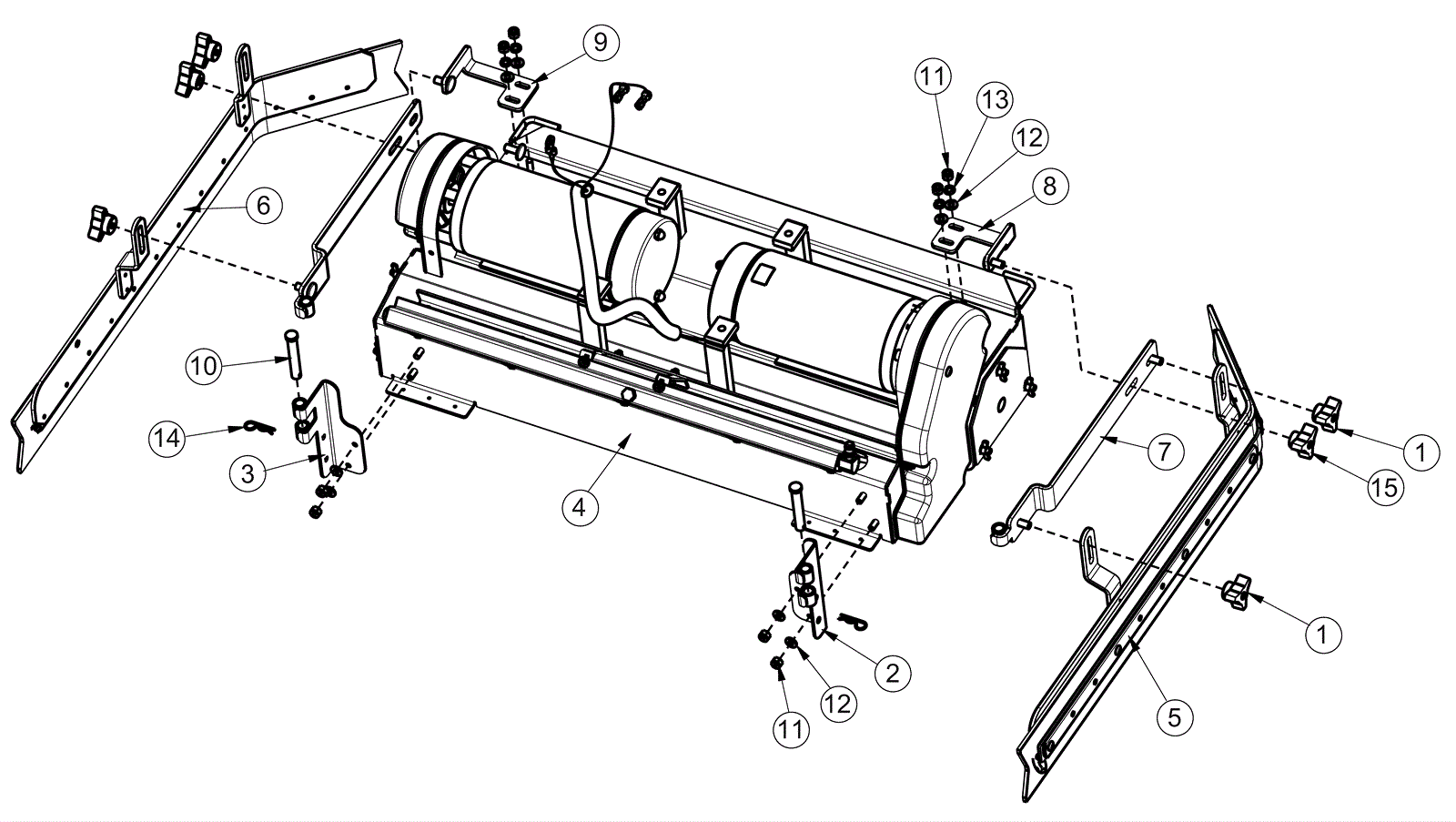

ERIDE 32PLUS Cylindrical Scrub Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-1220 3 sided knob 5/16 nyloc $4.41 4 usually ships 4-14 days
2 174-8826 Right hinge $100.68 1 usually ships 1-5 days
3 174-8827 Left hinge $63.28 1 usually ships 1-5 days
4a 174-3753 28 inch cylindrical scrubdeck assembly $3,654.80 1 (28in) usually ships 4-14 days
4b 174-3754 32 inch cylindrical scrubdeck assembly $3,581.70 1 (32in) usually ships 4-14 days
5 174-8525 Left side squeegee wiper assembly $236.93 1 ships same day
6 174-8526 Right side squeegee wiper assembly $216.76 1 usually ships 4-14 days
7 174-8831 Upper squeegee bracket $44.22 2 usually ships 1-5 days
8 174-8832 Left side squeegee support $42.04 1 usually ships 1-5 days
9 174-8833 Right side squeegee support $33.40 1 usually ships 1-5 days
10 174-8837 Clevis pin $2.13 2 usually ships 1-5 days
11 999-0190 Nut 1/4-20 hex plain finish $0.99 8 ships same day
12 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
13 174-5227 Washer 1/4 steel plated $0.97 4 usually ships 4-14 days
14 174-0201 Cotter pin $1.20 2 usually ships 4-14 days
15 174-8443 Knob yellow $3.83 2 usually ships 1-5 days
