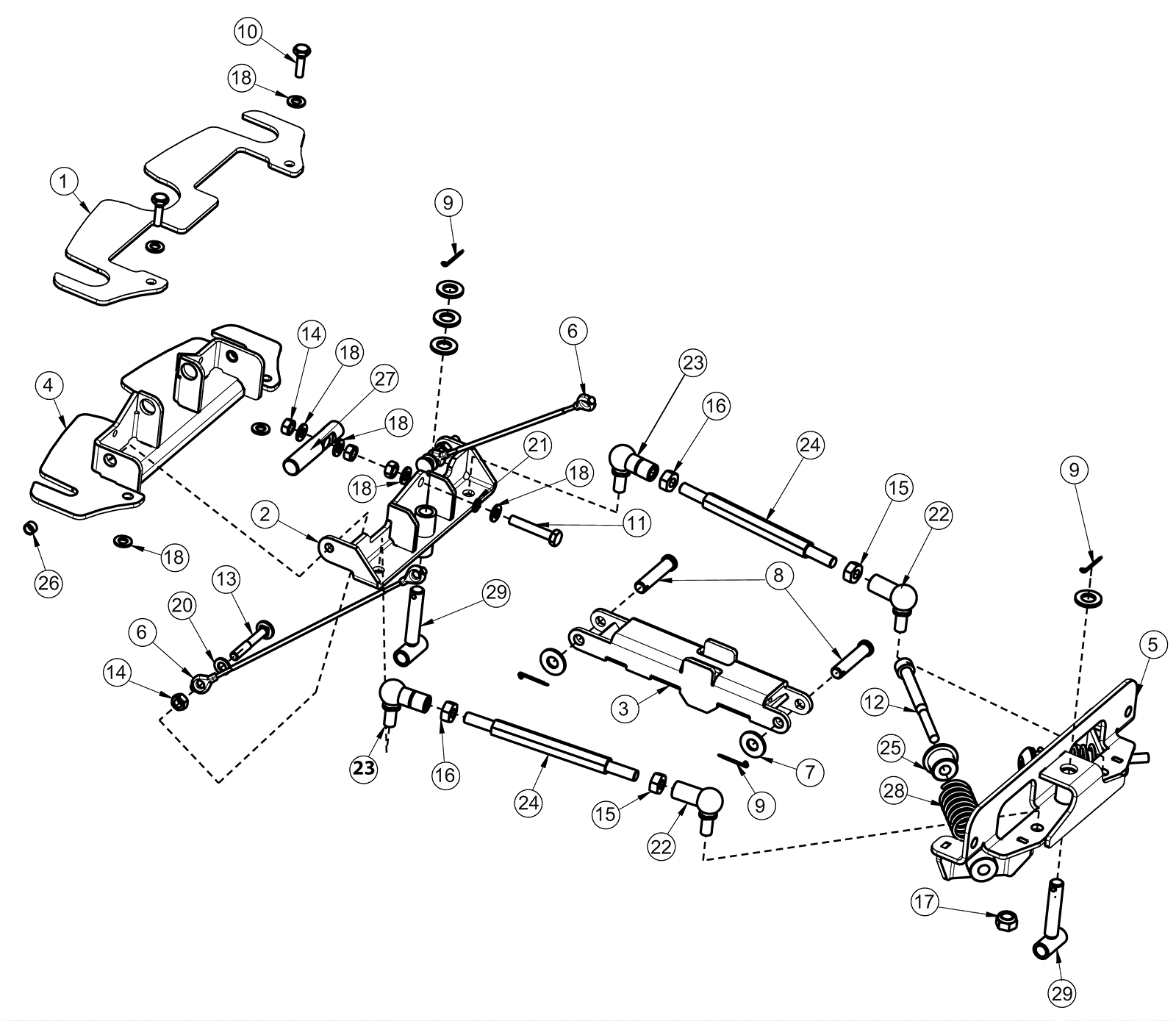

ERIDE 28PLUS Squeegee Mechanism Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-4313 SQUEEGEE MOUNT PLATE - LOWER, SCV 2426 $32.37 1 usually ships 4-14 days
2 274-5907 SQUEEGEE MECH. REAR WELDMENT - SCV 2426 $72.68 1 usually ships 1-5 days
3 174-3750 Squeegee pivot arm weldment $65.03 1 usually ships 4-14 days
4 274-6345 SQUEEGEE MOUNT WELDMENT-UPPER, SCV 2426 $78.10 1 usually ships 4-14 days
5 274-6482 SQUEEGEE WELDMENT - REAR, E RIDE 2832 $122.09 1 usually ships 1-5 days
6 174-3751 Rear squeegee lift cable $10.77 2 usually ships 4-14 days
7 999-0328 Washer 7/16 USS flat $0.99 2 ships same day
8 374-1209 PIN-CLEVIS 7/16 X 2.00 ZINC  1.84 inch UNDER $0.97 2 usually ships 1-5 days
9 997-2506 Cotter pin $0.99 4 ships same day
10 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
11 999-0801 Screw M8-1.25 x 45mm hex head zinc $1.38 1 ships same day
12 274-0464 SCREW-SOCKET HEAD CAP ISO 4762-M10x110-1 $4.01 2 usually ships 1-5 days
13 174-9642 Bolt M8-1.25 x 55mm carriage head $3.74 2 usually ships 1-5 days
14 999-1424 Nut M8-1.25 hex stainless steel $1.65 5 ships same day
15 999-1428 Nut M10-1.5 hex zinc finish $0.99 2 ships same day
16 274-0433 NUT-HEX METRIC M10 X 1.5 STL ZD $3.94 2 usually ships 1-5 days
17 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
18 999-9097 Washer M8 flat stainless steel $0.99 8 ships same day
20 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
21 374-0813 WASHER - SERRATED, LOCKING, M8, $0.97 1 usually ships 1-5 days
22 274-1536 BALL JOINT - RH, M10 FEMALE THREADS $7.33 2 usually ships 1-5 days
23 274-2057 BALL JOINT - LH, M10 FEMALE THREADS $9.62 2 usually ships 1-5 days
24 274-1715 TURNBUCKLE - M10 THREADS, STEEL HEX BODY $22.57 2 usually ships 1-5 days
25 274-1857 BUSHING - STEEL, SPRING CAP $16.75 2 usually ships 1-5 days
26 174-8970 Bushing $5.35 2 usually ships 4-14 days
27 174-3752 Pivot bar $35.79 1 usually ships 4-14 days
28 274-1948 SPRING - COMPRESSION, 1.22 OD, $9.91 2 usually ships 1-5 days
29 274-4264 T BAR WELDMENT - STEEL, ZINC PL $67.19 2 usually ships 4-14 days
N/S 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel $3.47 4 usually ships 11-24 days
