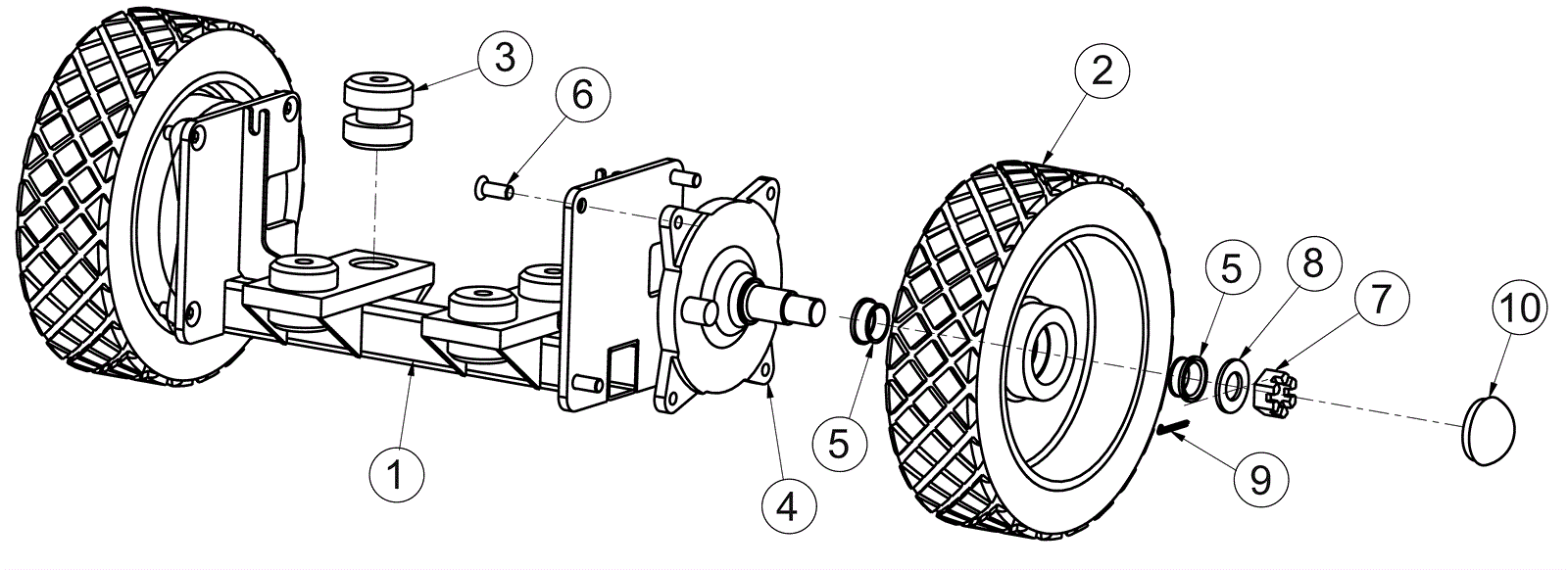

ERIDE 28PLUS Rear Axle Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8810 Rear axle weldment $196.70 1 usually ships 1-5 days
2 174-8811 Rear wheel assembly $718.06 2 usually ships 1-5 days
3 174-8812 Ring isolator bushing $10.90 4 usually ships 1-5 days
4 174-8813 Rear axle casting $147.29 2 usually ships 1-5 days
5 174-1636 Tapered bearing cone $39.50 4 usually ships 4-14 days
6 174-2682 Flat head screw 1/2 x 20 $1.37 8 usually ships 1-5 days
7 174-1642 Nut 1-14 slotted $3.12 2 usually ships 1-5 days
8 174-1641 Flat washer 1 1/16 x 2 x 5/32 $0.97 2 usually ships 1-5 days
9 174-7020 Cotter pin $0.97 2 usually ships 4-14 days
10 174-8814 Wheel grease cap $6.25 2 usually ships 1-5 days
