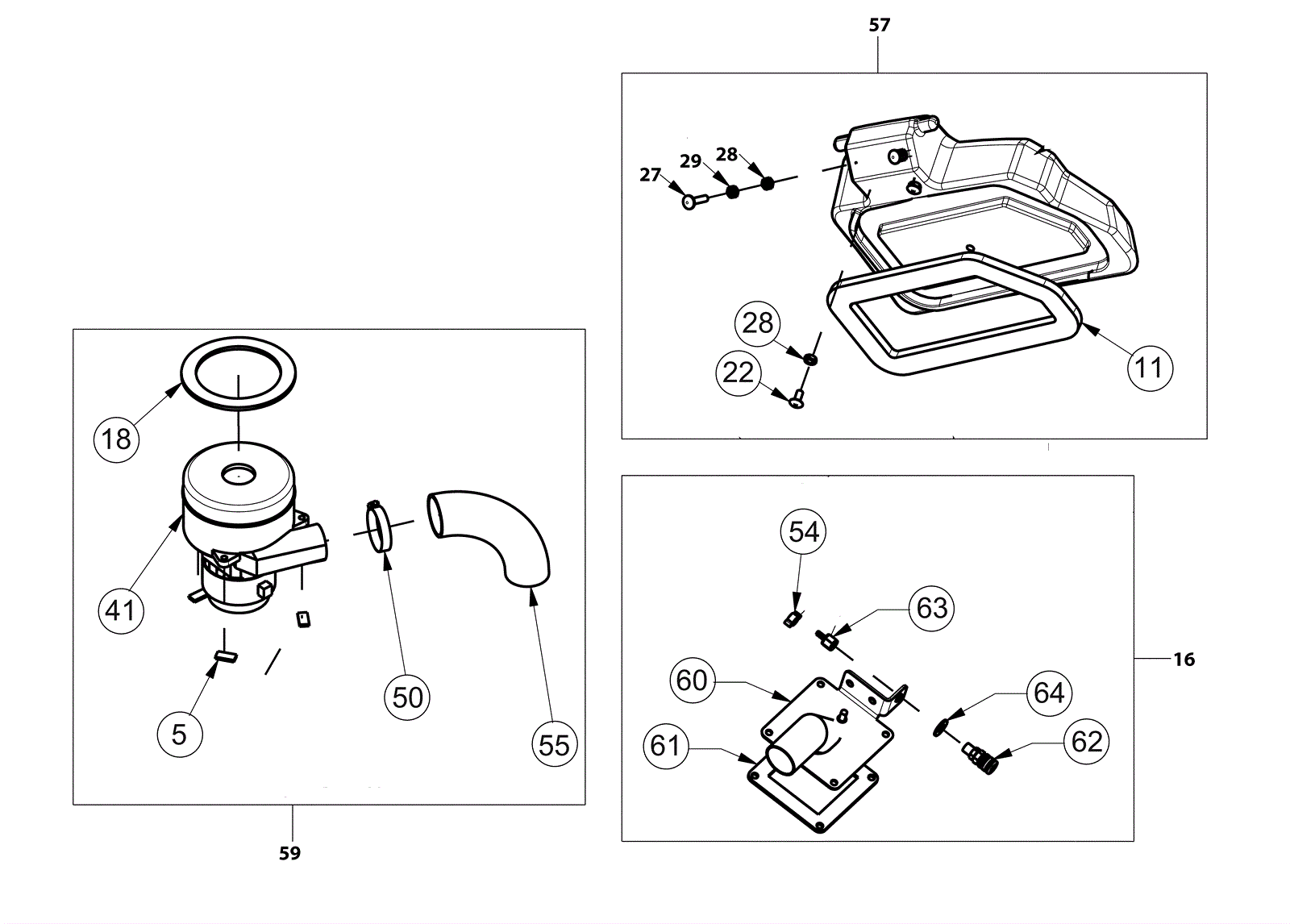

| # | Part | Description | Price | Req | Notes | Availability |
|---|
5 |
174-3748
|
1 inch isolator pads |
$5.92
|
3 |
|
usually ships 4-14 days |
11 |
174-8787
|
Movable lid gasket |
$24.70
|
1 |
|
usually ships 4-14 days |
16 |
174-8791
|
Vacuum hose inlet assembly |
$109.28
|
1 |
(includes 54, 60-64) |
usually ships 4-14 days |
18 |
174-5104
|
Gasket |
$3.81
|
1 |
|
ships same day |
22 |
999-0399
|
Screw 5/16-18 x 3/4 pan head phillips zinc plated |
$0.99
|
2 |
|
ships same day |
27 |
174-6169
|
Bolt CR 5/16 - 18 x 1.5 s.s. |
$1.07
|
2 |
|
usually ships 1-5 days |
28 |
999-0069
|
Nut 5/16-18 hex |
$0.99
|
4 |
|
ships same day |
29 |
999-0430
|
Nut 5/16-18 hex jam plain finish |
$0.99
|
2 |
|
ships same day |
41 |
274-8725
|
MOTOR-VAC 36V |
$306.06
|
1 |
|
usually ships 1-5 days |
50 |
174-5175
|
Hose clamp |
$6.79
|
1 |
|
usually ships 1-5 days |
54 |
174-3231
|
Hose clamp 3/8 |
$1.64
|
1 |
|
usually ships 4-14 days |
55 |
174-0155
|
Flexible rubber hose 2 x 9 |
$8.47
|
1 |
|
usually ships 4-14 days |
57 |
174-3749
|
Pivoting lid |
$114.95
|
1 |
(includes 11, 22, 27-29) |
usually ships 4-14 days |
59 |
274-8496
|
VACUUM MOTOR ASY, ER2832 NON-CE |
$270.28
|
1 |
(includes 5,18,41,50,55) |
usually ships 4-14 days |
60 |
174-8796
|
Vacuum inlet weldment |
$85.12
|
1 |
|
usually ships 4-14 days |
61 |
174-8797
|
Vacuum inlet gasket |
$3.33
|
1 |
|
usually ships 4-14 days |
62 |
174-3205
|
Quick connect 2202 coupler Female |
$22.19
|
1 |
|
ships same day |
63 |
174-3230
|
1/8 barb x 1/8 FPT brass |
$5.88
|
1 |
|
usually ships 4-14 days |
64 |
999-0120
|
Washer 3/8 SAE flat |
$0.99
|
1 |
|
ships same day |
