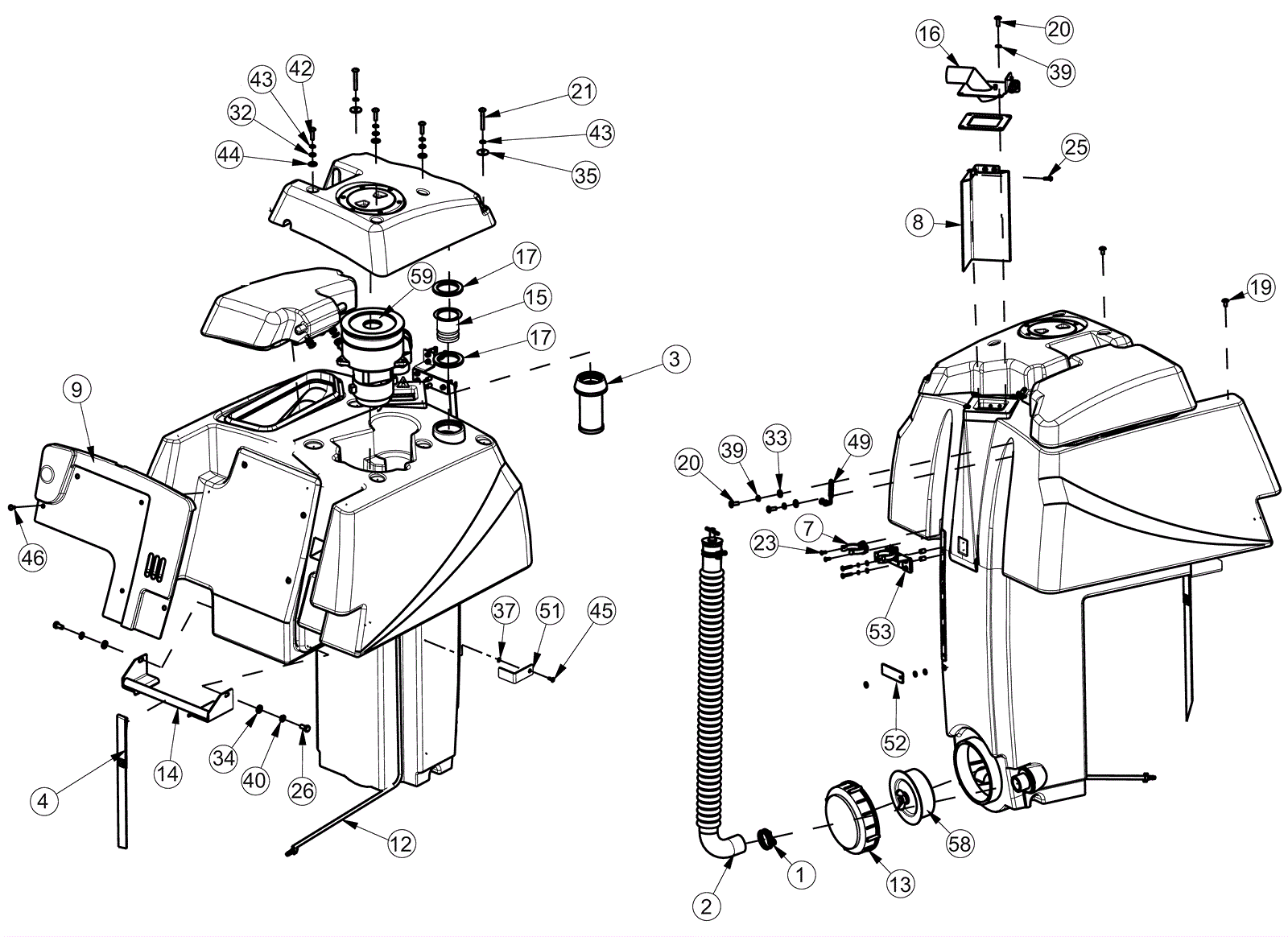

ERIDE 28PLUS Recovery Tank Assembly-1

#PartDescriptionPriceReqNotesAvailability
1 174-3354 Hose clamp $4.10 1 ships same day
2 174-6455 Dump hose assembly $37.04 1 usually ships 4-14 days
3 174-8782 Float screen with ball $32.05 1 usually ships 4-14 days
4 174-8460 Strap $6.64 1 usually ships 4-14 days
7 174-5968 1 1/2 inch hose clip $6.34 1 ships same day
8 174-8795 Deflector $25.25 1 usually ships 1-5 days
9 174-8786 Wire cover $61.40 1 usually ships 1-5 days
12 174-8794 Solution hose $34.73 1 usually ships 1-5 days
13 174-8788 6 inch cap $22.62 1 usually ships 4-14 days
14 174-8789 Strap holder weldment $73.06 1 usually ships 1-5 days
15 174-8790 Flanged shut off tube $48.82 1 usually ships 4-14 days
16 174-8791 Vacuum hose inlet assembly $109.28 1 usually ships 4-14 days
17 174-6441 Float cage gasket $3.82 2 usually ships 4-14 days
19 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 2 ships same day
20 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 6 ships same day
21 174-8869 Screw 1/4-20 x 2 truss head stainless steel $0.97 2 usually ships 1-5 days
23 174-2271 Screw 8-32 x 1/2 $0.99 2 usually ships 4-14 days
25 174-2289 Screw 10 x 5/8 hi/lo $1.90 4 usually ships 4-14 days
26 174-5772 Bolt 5/16-18 x 5/8 hex head $0.97 2 usually ships 1-5 days
32 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
33 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
34 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
35 174-0536 Washer 1/4 $0.97 2 usually ships 4-14 days
37 999-0311 Washer #10 external star lock zinc plated $0.99 3 ships same day
39 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
40 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
42 999-1382 Screw 1/4-20 x 1 truss head phillips $1.16 3 ships same day
43 999-0632 Washer 1/4 split lock stainless steel $0.99 5 ships same day
44 174-3203 Washer 13/32 x 1/32 flat stainless steel $1.08 3 ships same day
45 374-1312 SCR-MC FL HD 10-24 X .50 BLK-OX $0.97 3 usually ships 1-5 days
46 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 5 ships same day
49 174-0213 Wire formed hook $24.53 1 usually ships 1-5 days
51 174-3744 Tank bracket $21.62 3 usually ships 4-14 days
52 174-3745 Hose bracket $47.95 1 usually ships 4-14 days
53 174-3746 Tool mount assembly $55.30 1 usually ships 4-14 days
58 174-7063 Stopper plug assembly $52.14 1 usually ships 4-14 days
N/S 274-0743 DECAL-OVERFILL SIGHT GAUGE SCV 24/26 $10.22 1 usually ships 1-5 days
N/S 174-8792 Wire assembly $26.29 1 usually ships 1-5 days
N/S 174-3747 Fixed lid sub assembly $174.49 1 usually ships 4-14 days
N/S 174-8793 Recovery tank $795.95 1 usually ships 1-5 days
