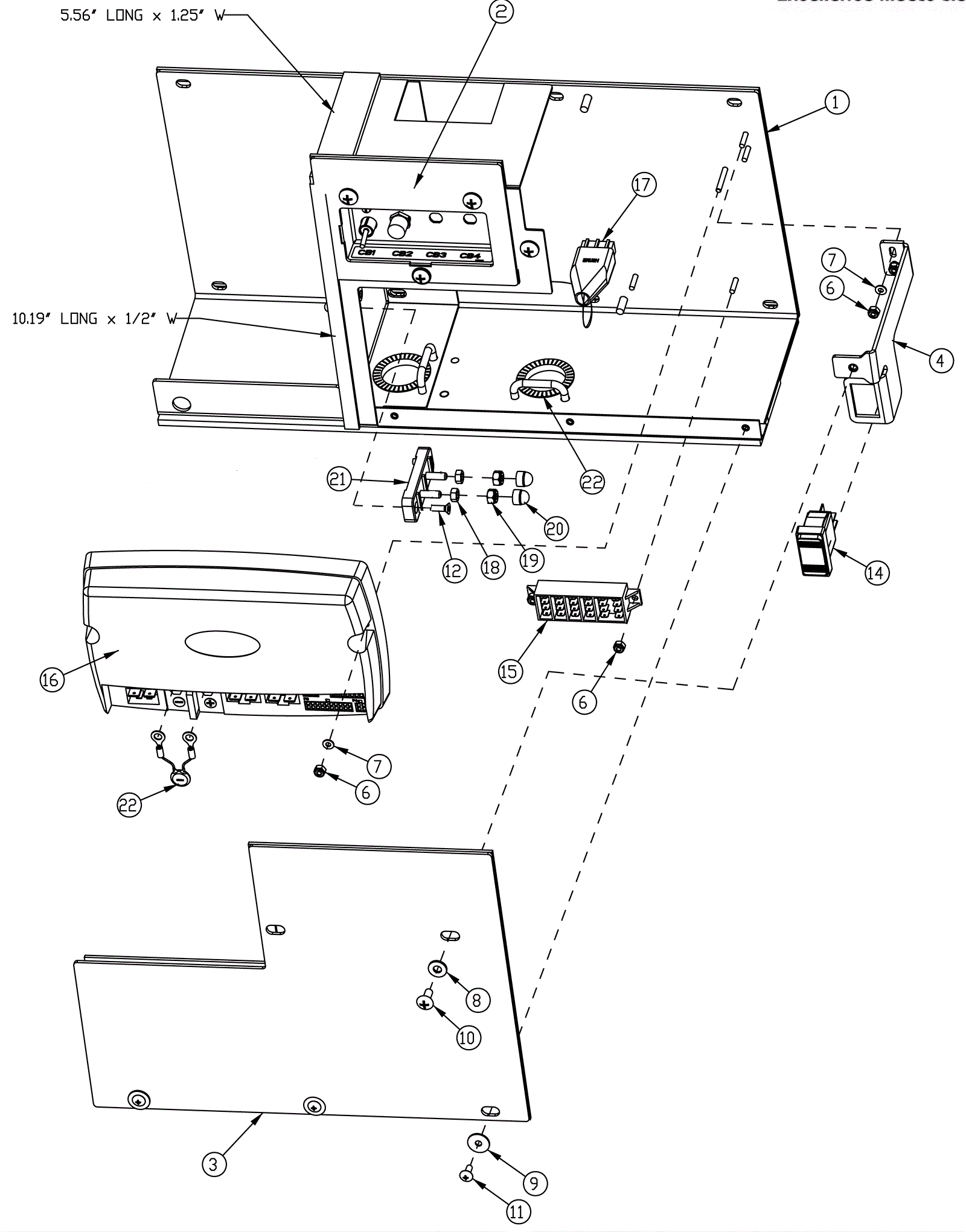

ERIDE 32PLUS Electrical Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-9430 Electrical box weldment $301.06 1 usually ships 4-14 days
2 174-9431 Circuit breaker $190.81 1 usually ships 4-14 days
3 174-8763 Electrical cover panel $34.27 1 usually ships 1-5 days
4 174-8765 Support bracket $22.01 1 usually ships 1-5 days
6 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 6 ships same day
7 999-0412 Washer #8 SAE flat $0.99 4 ships same day
8 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
9 174-9432 Washer #10 x 3/4 flat stainless steel $0.95 3 usually ships 4-14 days
10 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 5 ships same day
11 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 3 ships same day
12 999-0087 Screw 10-32 x 5/8 flat head slotted zinc plated $0.99 2 ships same day
14 174-8769 On/off switch $37.94 1 usually ships 4-14 days
15 174-8770 Terminal block $22.28 1 usually ships 1-5 days
16 274-9720 CONTROLLER, TRIO PLUS ER2832 36VDC 100A $1,037.48 1 usually ships 4-14 days
17 174-9434 Brush motor wiring $65.03 1 usually ships 4-14 days
18 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
19 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
20 374-2263 CAP, SAFETY NUT COVER M6 $2.11 2 usually ships 1-5 days
21 274-1448 TERMINAL BLOCK, 2 STUD M6 63A $7.56 1 usually ships 1-5 days
22a 274-0850 VARISTOR ASY, RING TERMINALS 1/4 inch $6.15 1 usually ships 1-5 days
22b 174-8771 Serrated grommet strip $2.05 0.74in usually ships 1-5 days
N/S 174-1495 Gasket $23.19 0.43in usually ships 4-14 days
N/S 174-6330 Dortite 1/2 $1.24 11.09in usually ships 1-5 days
N/S 999-0961 Nut 10-32 acorn nickel plated $0.99 2 ships same day
N/S 174-9433 Circuit breaker decal (OBSOLETE) $3.74 1 usually ships 4-14 days
