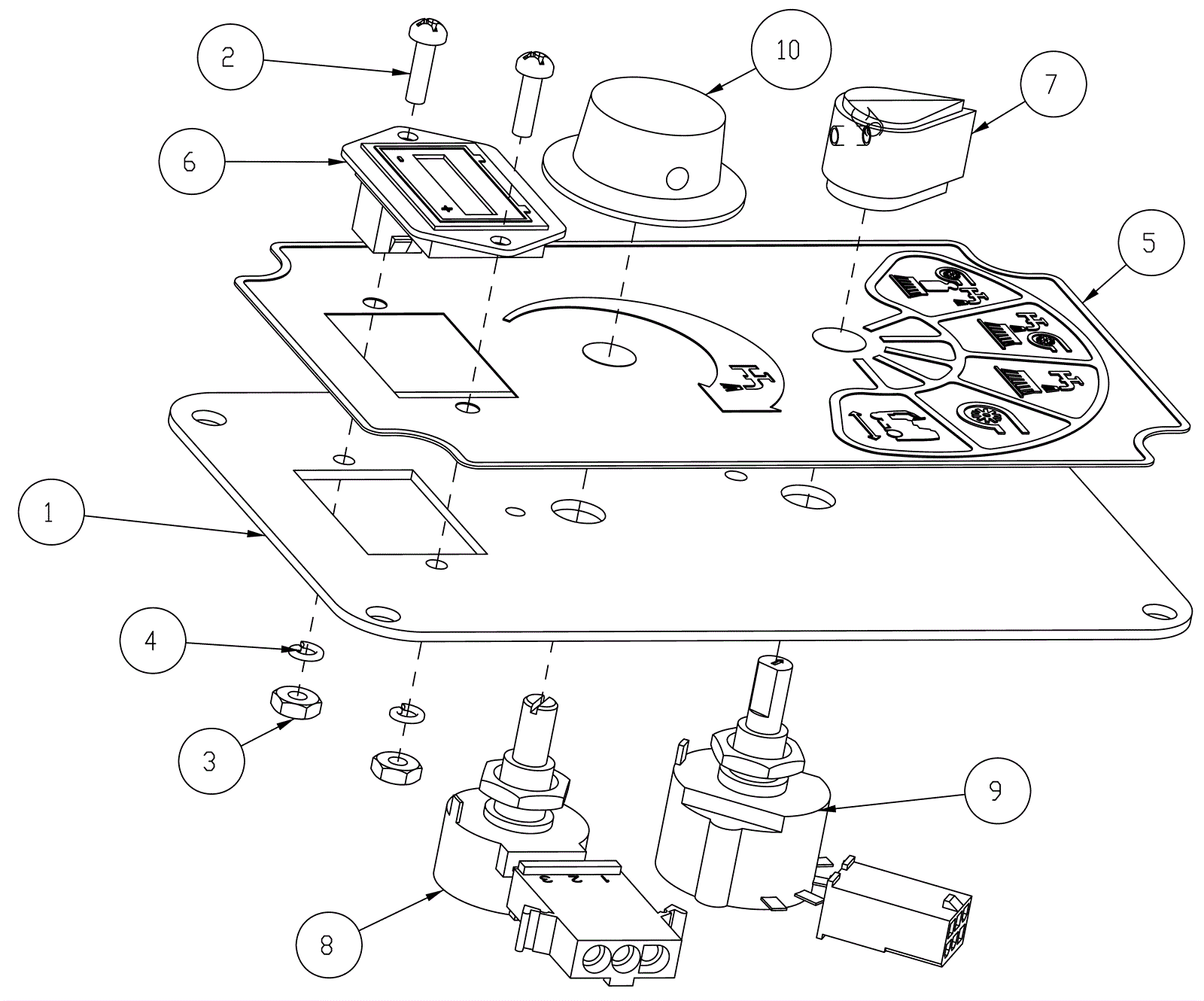

ERIDE 28PLUS Controls Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8775 Switch bracket $17.27 1 usually ships 1-5 days
2 999-0382 Screw 6-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
3 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
4 174-6331 Washer #6 helical steel plated $0.97 2 usually ships 1-5 days
5 174-8776 Controls label $12.87 1 usually ships 1-5 days
6 274-6252 Battery gauge $70.34 1 usually ships 4-14 days
7 174-6333 Knob-mode selector $16.94 1 usually ships 1-5 days
8 174-6334 Water low potentiometer assembly $51.53 1 usually ships 1-5 days
9 174-6336 Mode selector switch assembly $118.45 1 usually ships 4-14 days
10 174-0259 Knob $7.99 1 usually ships 4-14 days
