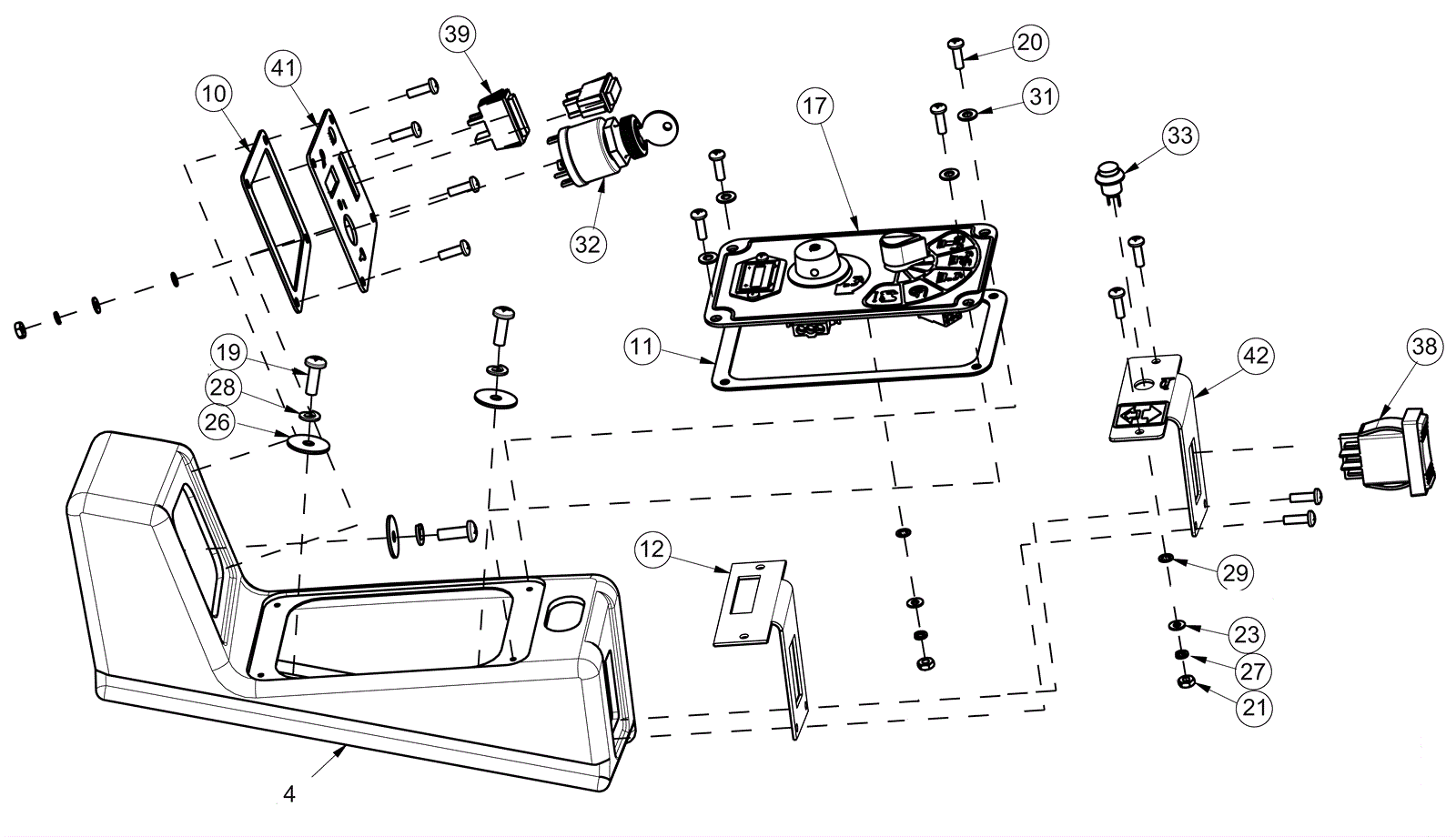

ERIDE 28PLUS Console Assembly

#PartDescriptionPriceReqNotesAvailability
4 174-8749 Console $133.96 1 usually ships 1-5 days
10 174-8772 Gasket $4.46 1 usually ships 1-5 days
11 174-8773 Gasket $4.81 1 usually ships 1-5 days
12 174-8774 Gasket $4.73 1 usually ships 1-5 days
17 274-8075 SELECTOR SWITCH ASSEMBLY, SCV2832 $260.20 1 usually ships 1-5 days
19 999-0415 Screw 1/4-20 x 3/4 pan head slotted zinc plated $0.99 11 ships same day
20 174-2289 Screw 10 x 5/8 hi/lo $1.90 16 usually ships 4-14 days
21 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 3 ships same day
23 999-0412 Washer #8 SAE flat $0.99 3 ships same day
26 174-0536 Washer 1/4 $0.97 3 usually ships 4-14 days
27 174-5406 Washer 8 helical $0.97 3 usually ships 4-14 days
28 999-0060 Washer 1/4 split lock plain finish $0.99 13 ships same day
29 174-3206 Washer 8 inter tooth $0.97 3 usually ships 1-5 days
31 174-0532 Washer 7/32 x 3/64 nylon $0.97 4 usually ships 4-14 days
32 174-8086 2 pole key switch $86.33 1 usually ships 4-14 days
33 174-8777 Horn switch $35.26 1 usually ships 1-5 days
38 174-8778 Forward/reverse switch $32.05 1 usually ships 4-14 days
39 174-8779 Blank switch $3.33 2 usually ships 1-5 days
41 174-8780 Ignition switch panel Call for price 1 usually ships 1-5 days
42 174-8781 Direction control panel $21.84 1 usually ships 1-5 days
N/S 274-6886 CABLE ASY, BATTERY CONNECT SCV $98.39 1 usually ships 1-5 days
N/S 374-2109 18G RED 6.00 inch B=26 $2.03 1 usually ships 1-5 days
N/S 274-4254 1G RED 20.00 inch $29.27 1 usually ships 1-5 days
N/S 174-3742 Cabinet to frame ground strap $8.64 1 usually ships 4-14 days
