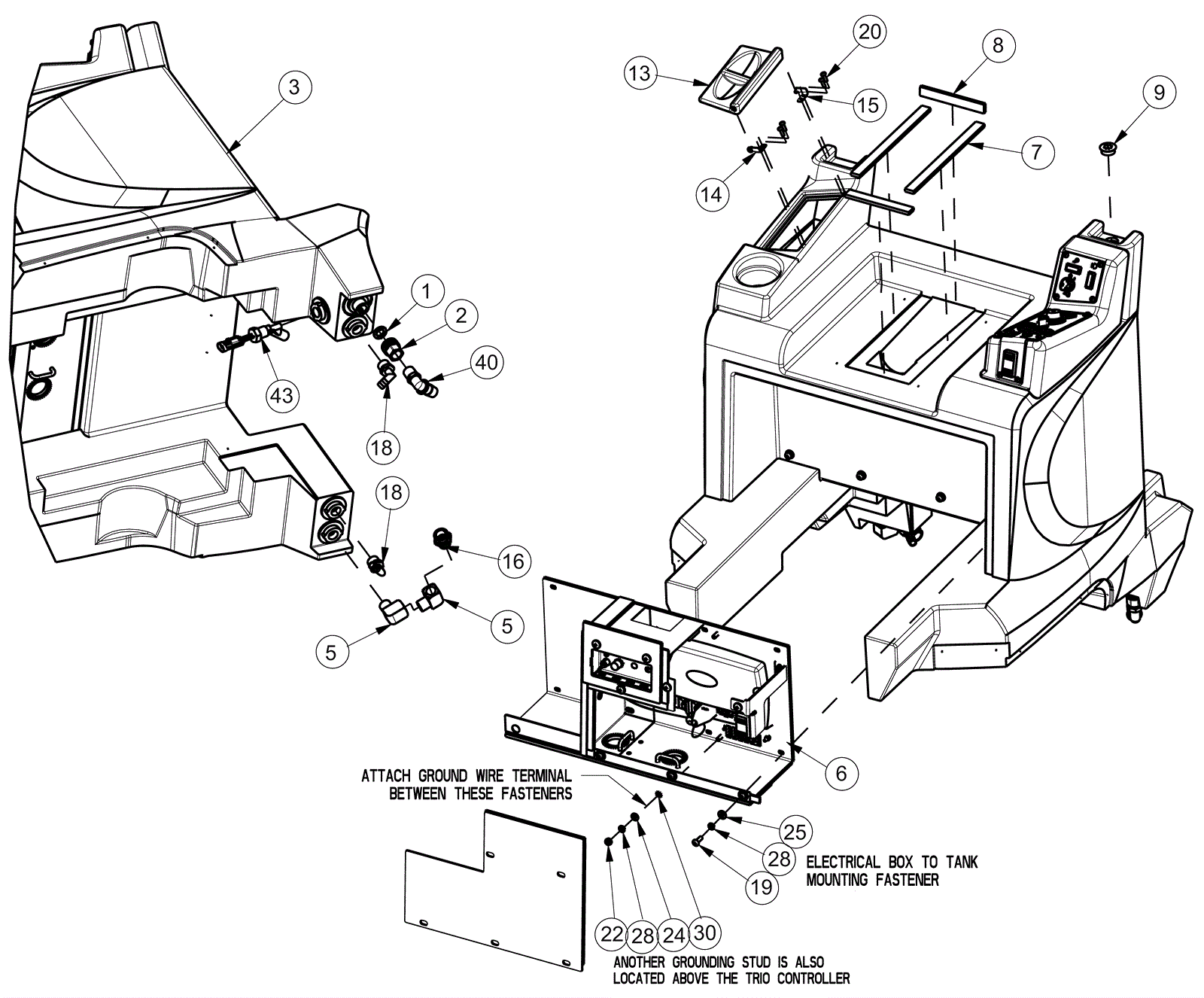

ERIDE 28PLUS Solution Tank/Seat Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-5898 Washer black vinyl $1.24 1 usually ships 4-14 days
2 274-2884 SWIVEL CONNECTOR - BRASS, FGHT X MPT $13.97 1 usually ships 1-5 days
3 174-8748 Solution tank $730.09 1 usually ships 1-5 days
5 274-2186 FITTING STREET 90 1/2 X 1/2 BRS $8.20 2 usually ships 1-5 days
6 174-3740 Electrical box assembly $1,416.36 1 usually ships 4-14 days
7 174-8753 Long seat gasket $3.24 2 usually ships 1-5 days
8 174-8754 Short seat gasket $2.82 2 usually ships 1-5 days
9 174-8755 Vent plug $1.24 1 usually ships 1-5 days
13 174-8155 Solution tank plastic cover $61.40 1 usually ships 4-14 days
14 174-8757 Right hinge (OBSOLETE) $12.05 1 usually ships 1-5 days
15 174-8758 Left hinge $16.00 1 usually ships 1-5 days
16 274-3684 COUPLING-3/4 inch HOSE X 1/2 inch MPT $15.32 1 usually ships 1-5 days
18 174-2641 Fitting brass 90 degree 1/2 x 1/2 $20.36 2 usually ships 1-5 days
19 999-0415 Screw 1/4-20 x 3/4 pan head slotted zinc plated $0.99 11 ships same day
20 174-2289 Screw 10 x 5/8 hi/lo $1.90 16 usually ships 4-14 days
22 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
25 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
28 999-0060 Washer 1/4 split lock plain finish $0.99 13 ships same day
30 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
40 174-3741 Elbow fitting $3.38 1 usually ships 4-14 days
43 174-8760 Float switch $104.36 1 usually ships 1-5 days
N/S 274-8776 WIRE HARNESS, SCV2832E FRONT $346.03 1 usually ships 1-5 days
