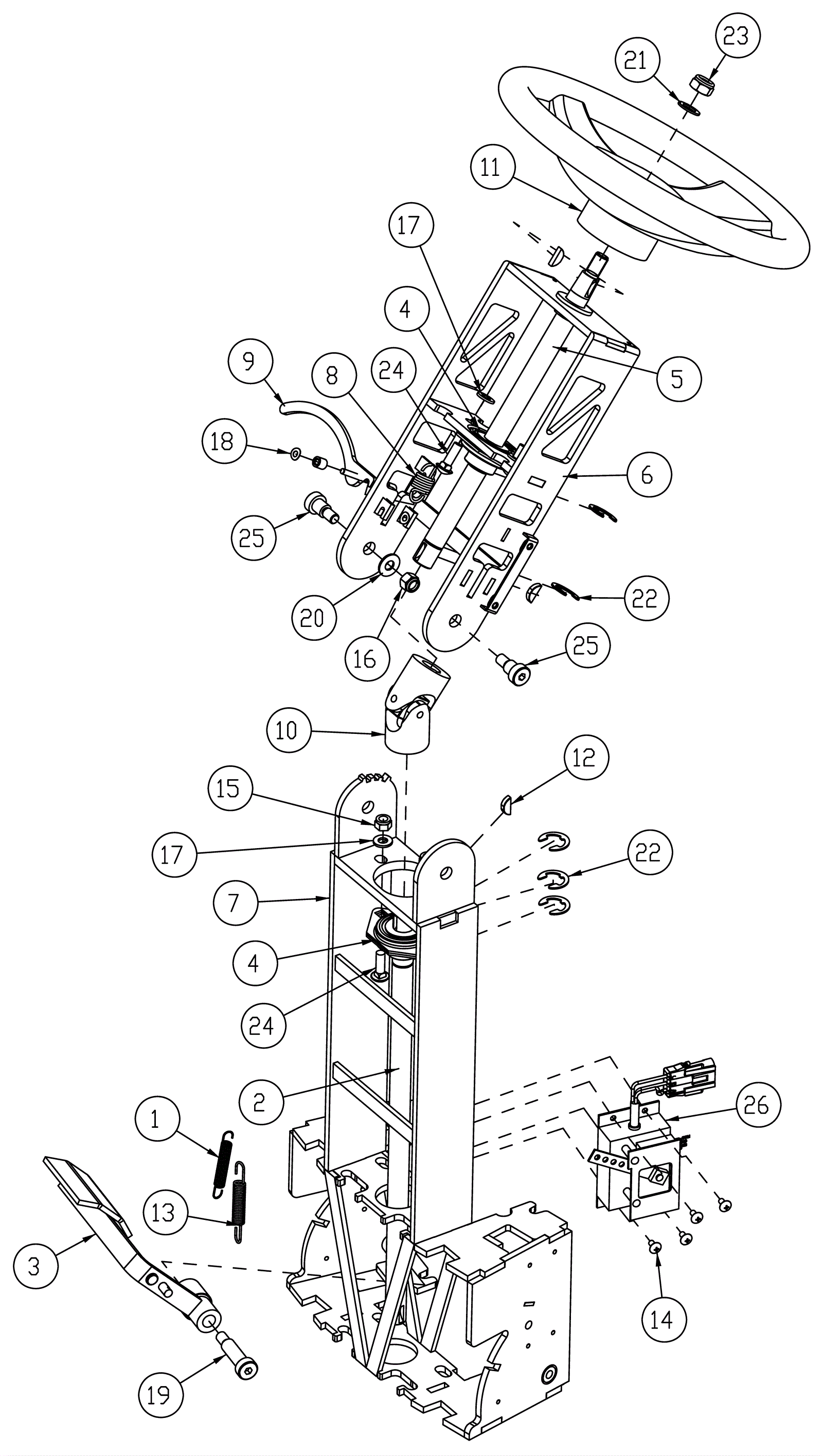

ERIDE 28PLUS Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8737 Extension spring $5.30 1 usually ships 4-14 days
2 174-8738 Lower steering shaft $49.88 1 usually ships 1-5 days
3 174-8739 Accelerator pedal weldment $78.20 1 usually ships 1-5 days
4 274-4359 BEARING ASSEMBLY 3/4 inch $30.90 2 usually ships 1-5 days
5 174-8740 Upper steering shaft $52.43 1 usually ships 1-5 days
6 174-8741 Top steering assembly $192.24 1 usually ships 1-5 days
7 174-8742 Lower steering weldment $398.83 1 usually ships 1-5 days
8 174-8743 Extension spring $9.26 1 usually ships 1-5 days
9 174-8744 Adjustment lever assembly $113.20 1 usually ships 1-5 days
10 174-2898 Universal joint $157.89 1 usually ships 1-5 days
11 174-2740 Steering wheel $106.77 1 usually ships 1-5 days
12 174-2748 Woodruff key 3/16 x 3/4 $1.38 3 ships same day
13 174-0008 Return spring $2.78 1 usually ships 4-14 days
14 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 4 ships same day
15 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
16 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
17 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
18 174-8875 Wave washer $3.74 2 usually ships 1-5 days
19 999-0473 Screw 3/8-16 x 1 1/2 socket head shoulder steel $4.03 1 ships same day
20 999-1363 Washer 7/8 flat stainless steel $3.48 2 ships same day
21 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat $0.97 1 usually ships 4-14 days
22 174-5728 Retaining ring $1.33 5 usually ships 4-14 days
23 174-2739 Nut-nyloc 1/2-20 $0.95 1 usually ships 1-5 days
24 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 4 ships same day
25 174-5325 Bolt 1/2 x 1/2 shoulder $2.77 2 usually ships 4-14 days
26 274-8166 POTENTIOMETER BOX ASY, SCV W/PACKARD $221.77 1 usually ships 4-14 days
