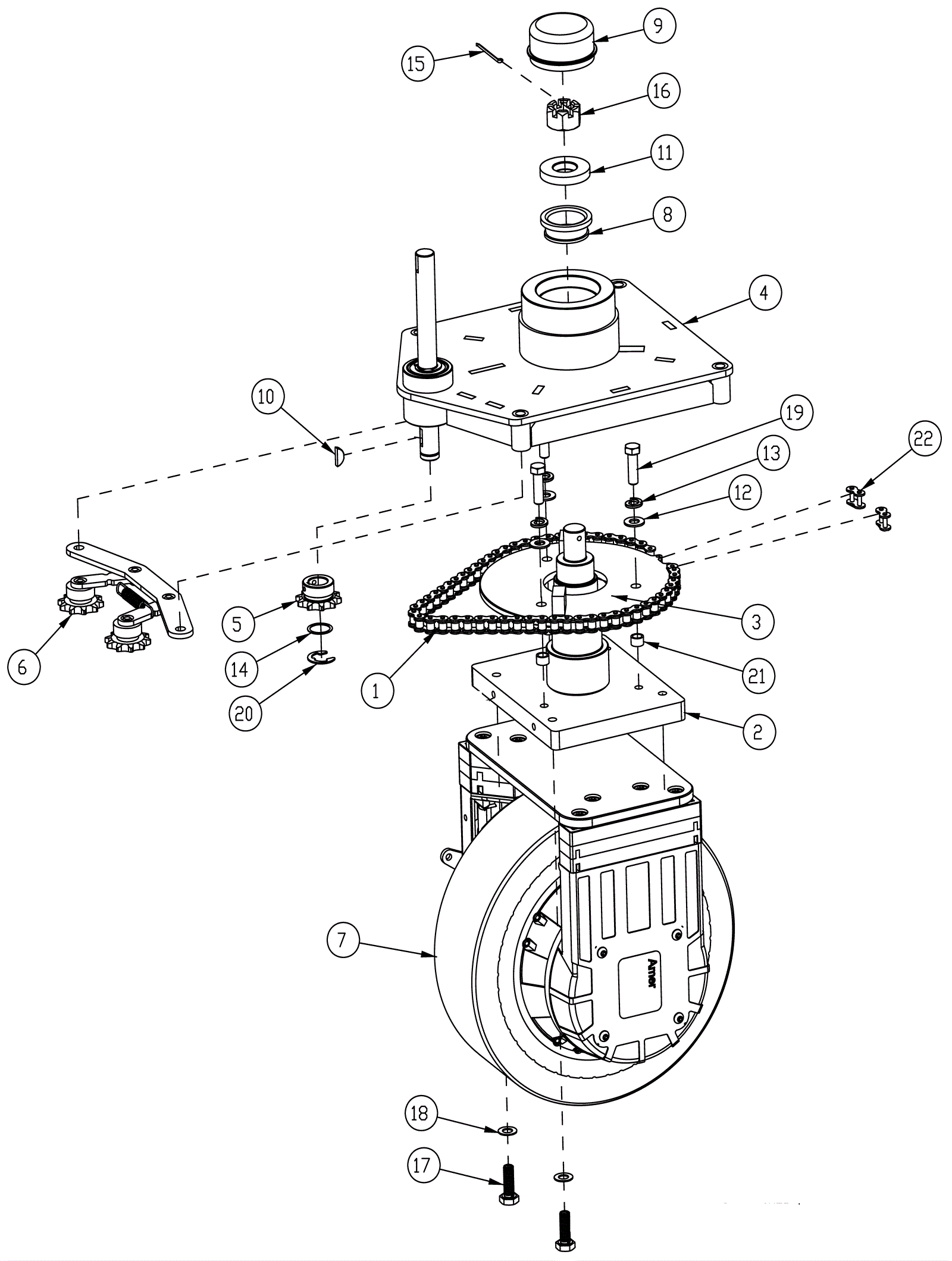

ERIDE 28PLUS Front Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8723 27 1/2 inch steering chain $49.26 1 usually ships 1-5 days
2 174-3738 Spindle weldment $428.69 1 (holes face forward) usually ships 4-14 days
3 174-8726 Steering disc weldment $65.48 1 usually ships 1-5 days
4 274-9394 FRONT DRIVE W/ BEARING ASS'Y $614.80 1 usually ships 1-5 days
5 174-8729 10 toothed sprocket $19.38 1 usually ships 1-5 days
6 274-7115 IDLER ASSY, FRONT DRIVE $156.28 1 usually ships 1-5 days
7 374-0239 ELECTRIC DRIVE MOTOR - E RIDE 2832 $2,971.56 1 usually ships 4-14 days
8 174-2567 Roller bearing $22.00 1 usually ships 1-5 days
9 174-2564 Grease cap $12.02 1 usually ships 1-5 days
10 174-2748 Woodruff key 3/16 x 3/4 $1.38 1 ships same day
11 174-2566 Front drive spacer $29.04 1 usually ships 1-5 days
12 999-0120 Washer 3/8 SAE flat $0.99 3 ships same day
13 999-0034 Washer 3/8 split lock plain finish $1.82 3 ships same day
14 999-9114 Washer 3/4 flat stainless steel $1.58 1 ships same day
15 174-5907 Cotter hair pin $1.20 1 usually ships 1-5 days
16 174-2565 Slotted nut $4.96 1 usually ships 1-5 days
17 174-3739 Screw M10 x 30mm hex head $1.04 4 (apply medium strength threadlock) usually ships 4-14 days
18 174-3203 Washer 13/32 x 1/32 flat stainless steel $1.08 4 ships same day
19 174-1378 Bolt 3/8-16 x 1 1/4 hex head #5 $0.97 3 usually ships 1-5 days
20 174-5728 Retaining ring $1.33 1 usually ships 4-14 days
21 174-0103 Spacer $9.31 3 usually ships 1-5 days
22a 274-1840 MASTER CHAIN LINK 24/32B $9.31 2 usually ships 1-5 days
22b 991-0103 Master link $1.87 2 (NON-OEM) ships same day
