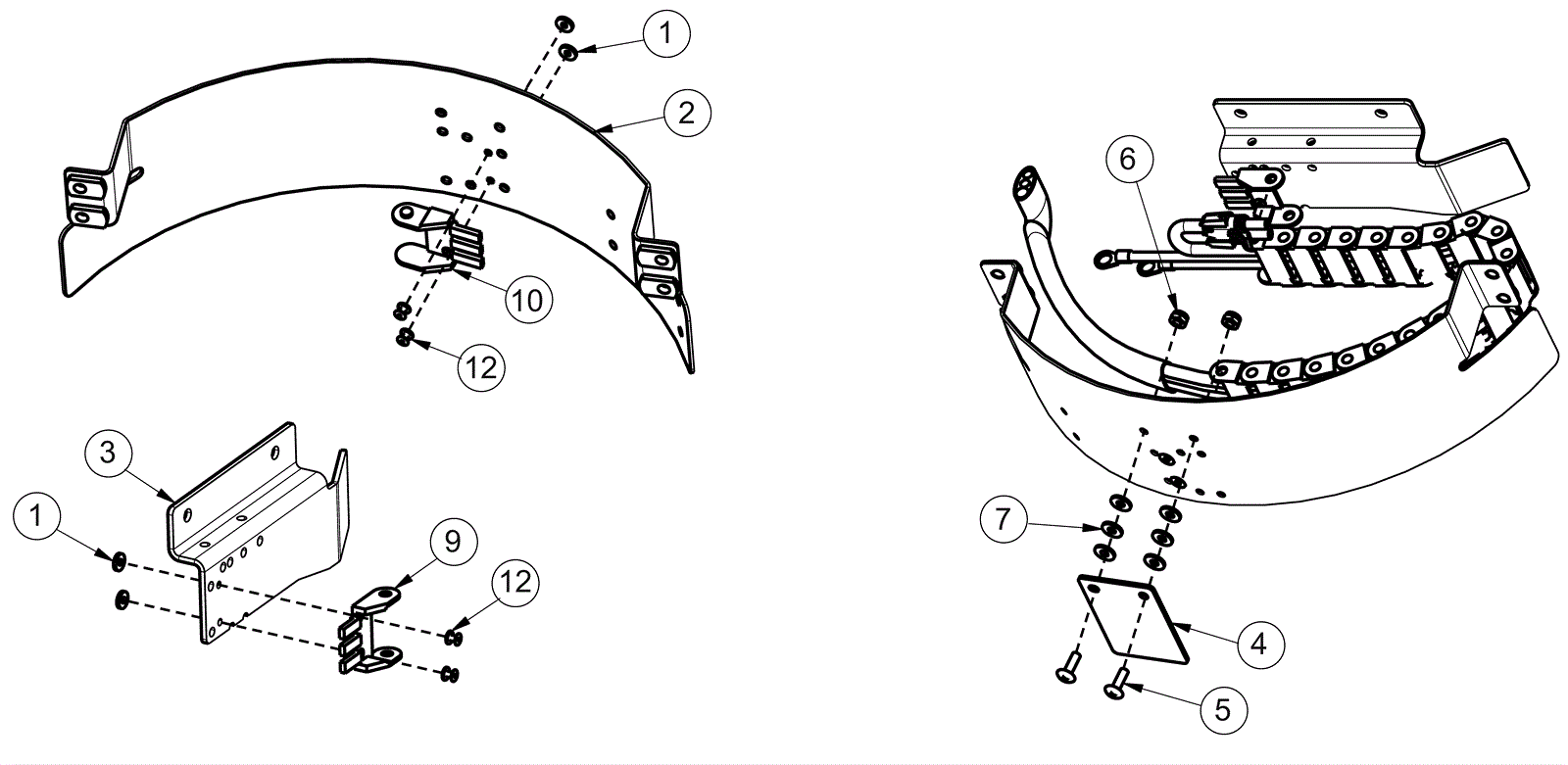

ERIDE 28PLUS Drive Motor Cable Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-1899 Rivet $1.40 4 ships same day
2 174-3733 Cable guide front bracket $96.25 1 usually ships 4-14 days
3 174-3734 Drive motor bracket $41.94 1 usually ships 4-14 days
4 174-3735 Front plate $18.03 1 usually ships 4-14 days
5 999-1070 Screw 10-32 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
6 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
7 999-0998 Washer #10 flat stainless steel $0.99 6 ships same day
9 274-3080 CABLE GUIDE, MOUNT BRACKET- BORE $10.22 1 usually ships 1-5 days
10 174-3736 Cable guide mount bracket pin $11.03 1 usually ships 4-14 days
12 174-2051 Pop rivet $0.97 4 usually ships 4-14 days
N/S 174-8398 Male pin connector $2.66 1 usually ships 4-14 days
N/S 174-3737 Drive motor wire harness $224.77 1 usually ships 4-14 days
